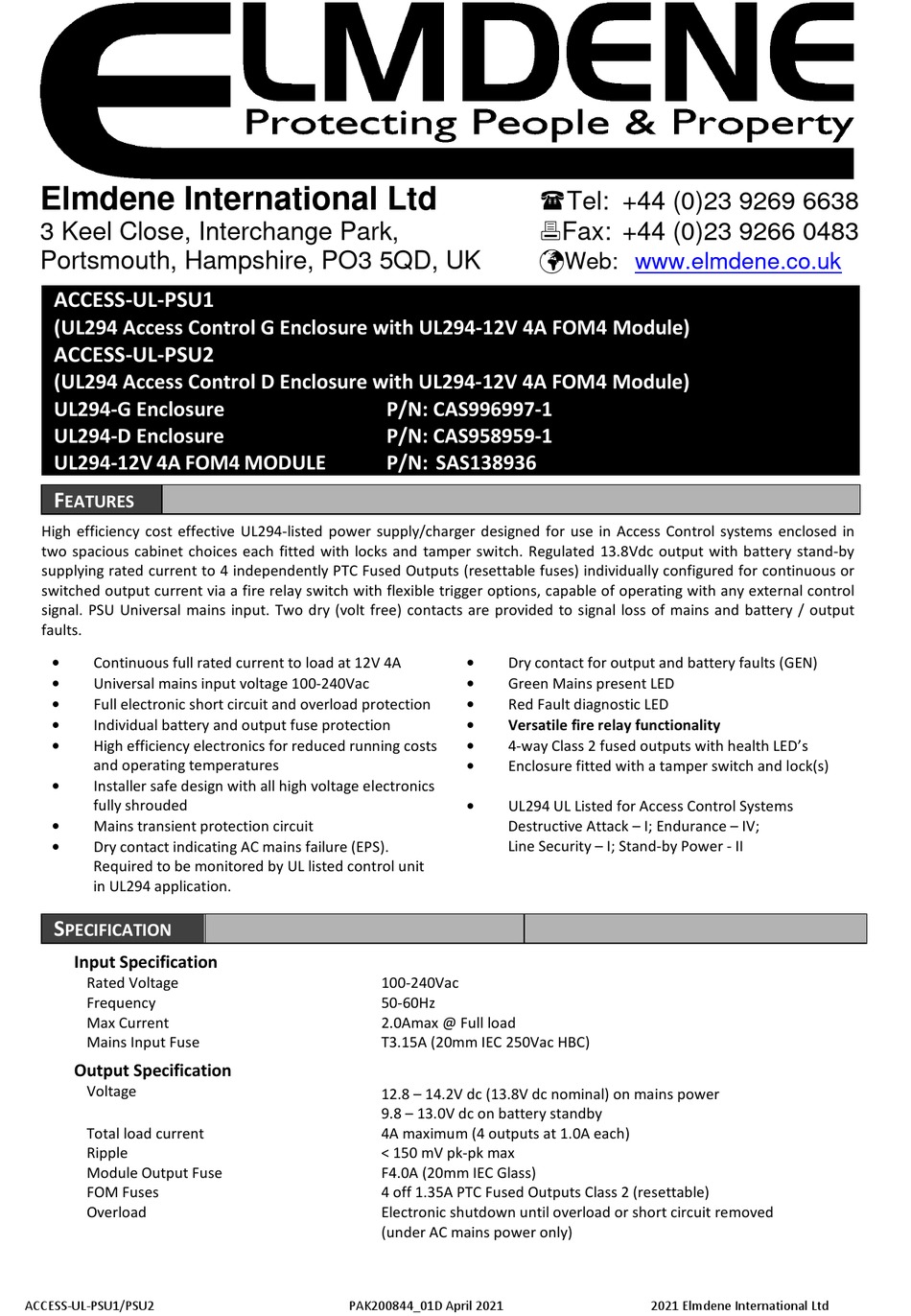

Elmdene ACCESS-UL-PSU1 Manual

Elmdene International Ltd
3 Keel Close, Interchange Park,
Portsmouth, Hampshire, PO3 5QD, UK
ACCESS-UL-PSU1
(UL294 Access Control G Enclosure with UL294-12V 4A FOM4 Module)
ACCESS-UL-PSU2
(UL294 Access Control D Enclosure with UL294-12V 4A FOM4 Module)
UL294-G Enclosure
UL294-D Enclosure
UL294-12V 4A FOM4 MODULE
F
EATURES
High efficiency cost effective UL294-listed power supply/charger designed for use in Access Control systems enclosed in
two spacious cabinet choices each fitted with locks and tamper switch. Regulated 13.8Vdc output with battery stand-by
supplying rated current to 4 independently PTC Fused Outputs (resettable fuses) individually configured for continuous or
switched output current via a fire relay switch with flexible trigger options, capable of operating with any external control
signal. PSU Universal mains input. Two dry (volt free) contacts are provided to signal loss of mains and battery / output
faults.
•
Continuous full rated current to load at 12V 4A
•
Universal mains input voltage 100-240Vac
•
Full electronic short circuit and overload protection
•
Individual battery and output fuse protection
•
High efficiency electronics for reduced running costs
and operating temperatures
•
Installer safe design with all high voltage electronics
fully shrouded
•
Mains transient protection circuit
•
Dry contact indicating AC mains failure (EPS).
Required to be monitored by UL listed control unit
in UL294 application.
S
PECIFICATION
Input Specification
Rated Voltage
Frequency
Max Current
Mains Input Fuse
Output Specification
Voltage
Total load current
Ripple
Module Output Fuse
FOM Fuses
Overload
ACCESS-UL-PSU1/PSU2
P/N: CAS996997-1
P/N: CAS958959-1
P/N: SAS138936
•
Dry contact for output and battery faults (GEN)
•
Green Mains present LED
•
Red Fault diagnostic LED
•
Versatile fire relay functionality
•
4-way Class 2 fused outputs with health LED's
•
Enclosure fitted with a tamper switch and lock(s)
•
UL294 UL Listed for Access Control Systems
Destructive Attack – I; Endurance – IV;
Line Security – I; Stand-by Power - II
100-240Vac
50-60Hz
2.0Amax @ Full load
T3.15A (20mm IEC 250Vac HBC)
12.8 – 14.2V dc (13.8V dc nominal) on mains power
9.8 – 13.0V dc on battery standby
4A maximum (4 outputs at 1.0A each)
< 150 mV pk-pk max
F4.0A (20mm IEC Glass)
4 off 1.35A PTC Fused Outputs Class 2 (resettable)
Electronic shutdown until overload or short circuit removed
(under AC mains power only)
