WUBEN B1 - 3600Lm Bike Light Manual

Package List

Before using this product, please check whether the contents of the package are complete.

About Product

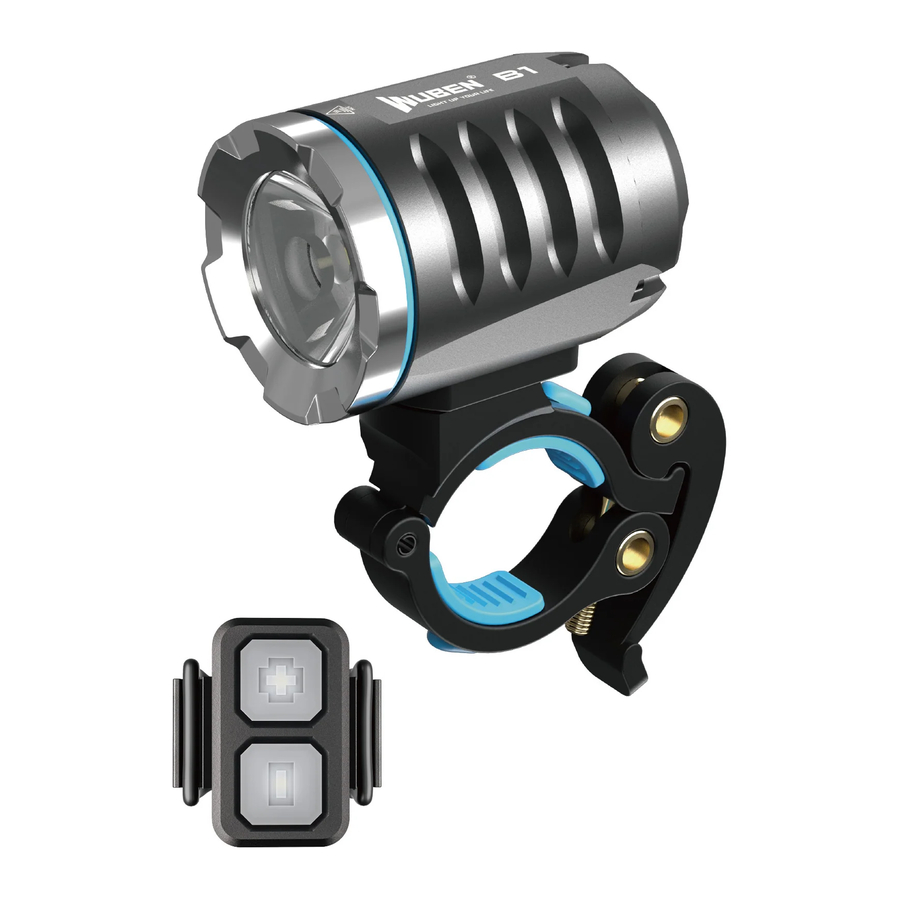

Product Overview

Parameters

FL1 Standard Turbo High Med Low Beacon
3600 2000
Lumens
3000 2000
Lumens
1000
Lumens
200
Lumens
1000
Lumens
2+140
Minutes
5+180
Minutes
8
Hours
36
Hours
/
179 Meters 1 Meter
8000 Candela IP65
Bike light: 164 g/5.78 oz Battery pack: 395 g/13.93 oz
54mm × 40mm | 2.13in × 1.57in (L × D)

warning All data from experiments of WUBEN lab according to the ANSI/NEMA FL1 standard, may vary because of different experiment equipment, experiment environment or other factors. Experiments are based on a WUBEN customized Li-ion battery pack(capacity: 6600 mAh, voltage: 7.4V)

Charging Status Indication

Connect the DC end of the battery pack with a standard charger. It takes about 6 hours to be fully charged.
Charging Status Indication

Battery Capacity Status Indication

Battery Capacity Status Indication

Installation

  1. Detachable bike mount
    Installation - Detaching/Attaching the bike mount
  2. Remove and replace battery
    Installation - Removing the battery
  3. Power cable connection
    Installation - Power cable connection
  4. Fasten remote control
    Installation - Fasten remote control
  5. Replace battery
    Installation - Replacing the battery

Operation

Operation

  1. ON/OFF: Click on switch to turn on the light, long press to turn off the light. The default setting is low mode.
  2. Output Selections: When the flashlight is on, single click switch to rise the brightness. Single click switch to descend the brightness.
  3. Quick Turbo: Double click switch to activate Turbo mode in any mode.
  4. Flash Mode: When the flashlight is at Turbo mode, double click on switch to activate Beacon mode, single click switch to activate Med mode.

Remote Control Mode

When the light is off, long press switch for 10 seconds into pairing mode. Red, orange, green lights flashing alternately. Press remote control switch can be paired in 30 seconds, and the light can be controlled after pairing. Clicking buttons on the remote control, the indicator on the remote control will indicate the battery power status, green means enough power, red means no power.
Using the Remote Control Mode

Temperature Control Mode

When the light temperature over 80 degrees, indicator flashes green, slow descend to 1W brightness(25 lumens) in 30 seconds, then indicator flashes red, cannot change the mode but can be turned off. The light can be used normally after the temperature drops.

Warnings

  • Please read user manual carefully before using the light.
  • Product will generate heat while working, please be cautious with that to avoid any possible harm.
  • Please don't shine into eyes directly to avoid harm to eyes.
  • Please keep the light away from children.
  • Please use WUBEN or WUBEN recommended batteries.
  • Please don't disassemble the product or it will not be covered by WUBEN warranty policy.
  • Please don't throw the product into fire.
  • This is not a diving product, please don't use it underwater for a long time.
  • When not in use for a long time, please disconnect the DC plug to protect the battery and light.


High temperature after light on, no touch, avoid burn!

FAQs

Problems Causes Solutions
Abnormal flash or
failure to turn on
Check if the switch is lockout Unlock the switch
Check if the switch is turned on correctly Turn on the switch
Check if it is assembled in place Tighten the assembly parts
Check if the battery is no power Try the battery on other products
Check if the battery is reversed Remove the battery and reassemble it correctly
Check if the conductive position is dirty Clean the surface with alcohol
Abnormal noise Check if foreign matter falls in the tube Pour out possible foreign matter
Part damage Contact your seller

If your problems still not solved yet, please contact WUBEN Headquarters for after-sales service.

SHENZHEN SHENGQI LIGHTING TECHNOLOGY CO., LTD.
E-mail: support@wubenlight.com
Web: www.wubenlight.com
Add: 202#, Building A, Jihe E-Business Park,
No. 33 Yangmei Road, Bantian Street,
Longgang District, Shenzhen, China
