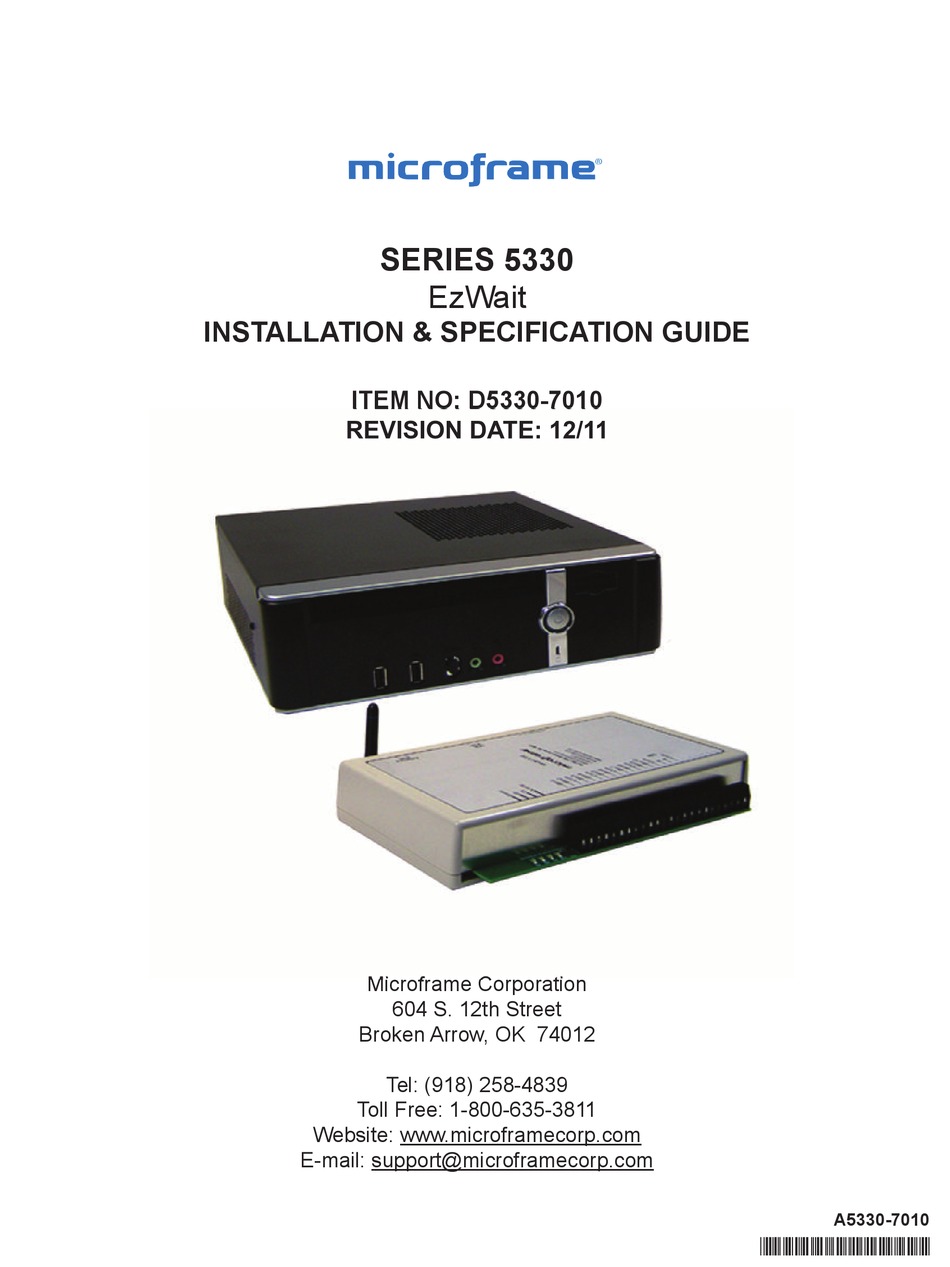

- Page 1 SERIES 5330 EzWait INSTALLATION & SPECIFICATION GUIDE ITEM NO: D5330-7010 REVISION DATE: 12/11 Microframe Corporation 604 S. 12th Street Broken Arrow, OK 74012 Tel: (918) 258-4839 Toll Free: 1-800-635-3811 Website: www.microframecorp.com E-mail: support@microframecorp.com A5330-7010 *A5330-7010*...
- Page 2 1. Place Unit in a sturdy box with suffi cient packing dent of Microframe Corporation. As used herein: material. 1. Life support devices or systems are defi ned as sys- 2.
- Page 3 Table of Contents Parts and Features ............4 Wiring Confi guration ............5 EzWait Confi guration ............6 Normal Operations ............9...
-
Page 4: Parts And Features

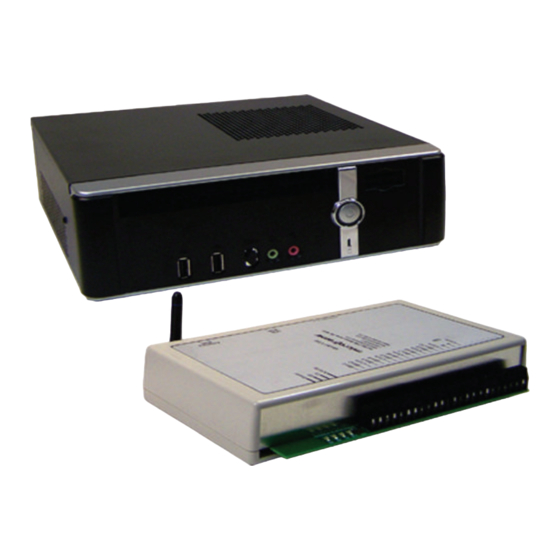

Microframe Corporation Microframe Corporation Series 5330 User Guide Parts and Features Parts List: 1. D1700 computer interface 2. Push Buttons ( 3. 19" Display (C) optional 4. 40' Wire (not pictured) 5. Power Cord (not pictured) 6. Manual (not pictured) -
Page 5: Wiring Confi Guration
Microframe Corporation Series 5330 User Guide Wiring Confi guration There are several confi gurations you can use when selecting monitors. EzWait is compatible with any size LCD or Plasma monitor/television, large and small. Single monitor confi guration 1) After mounting the monitor in the desired position... -
Page 6: Ezwait Confi Guration
Microframe Corporation Series 5330 User Guide EzWait Confi guration There are (3) ways to access the EzWait Admin Screen. Select the option that is best for you. Ethernet Connection One of the ways to confi gure the EzWait Server is over ethernet. To use this option you will need to connect the EzWait Server to your network. - Page 7 Microframe Corporation Series 5330 User Guide EzWait Confi guration Managing the Playlist Select a image/movie from the Movies Available list and click "Move >>" button. This will add the image/movie to the playlist. Once you have multiple images/movies in the playlist, you can arrange them by clicking on the right list and clicking the "Move Up"...
- Page 8 Microframe Corporation Series 5330 User Guide EzWait Confi guration Content Positioning Click and drag the sample image to move the main content positioning. Resize the Content Box by clicking on the sizing arrows and dragging them to the desired size.
-
Page 9: Normal Operations
Microframe Corporation Microframe Corporation Series 5330 User Guide Normal Operations Line Queuing With Keyfob With Push Buttons To show that your window is available, press the Depending on the setup in the confi guration right button. pages, pressing the button for your window will show that you are available. - Page 10 Microframe Corporation 604 S. 12th Street Broken Arrow, OK 74012 Tel: (918) 258-4839 Toll Free: 1-800-635-3811 Website: www.microframecorp.com E-mail: support@microframecorp.com...
