Forest FAL-10G Instruction Manual

Heater broken alarm
-FAL-10G-
RoHS correspondence
Instruction manual
Specification
FOREST INC.

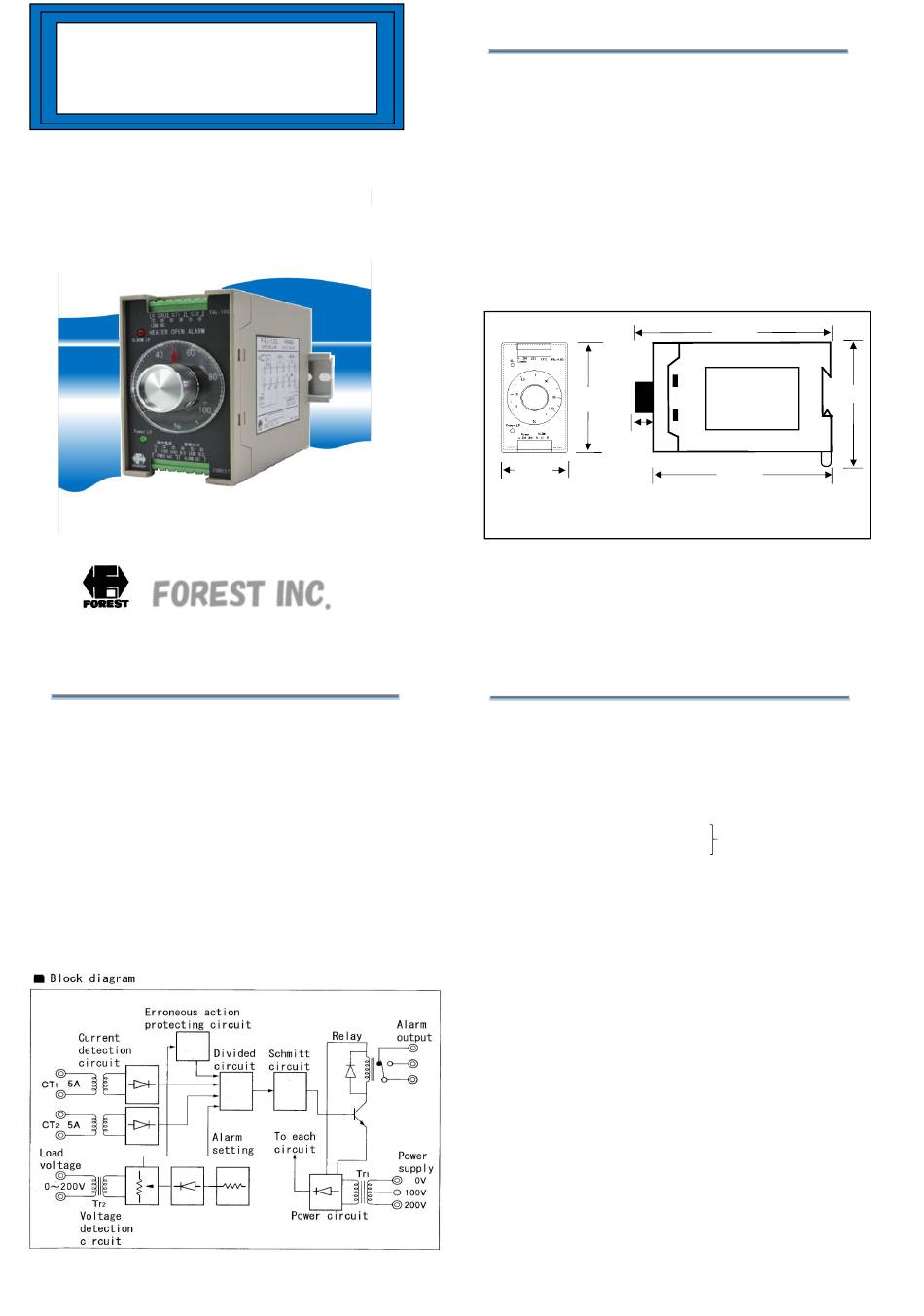

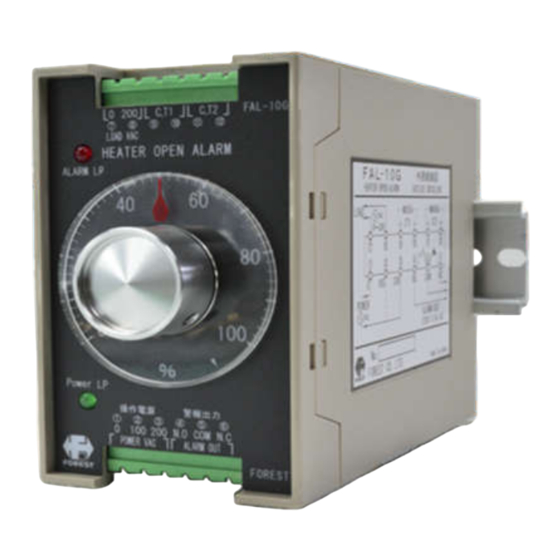

Heater broken alarm FAL-10G＜single phase,three phase dual use＞
■Operating priciple
1. Direct line current of load by current detector (C.T)
convert it to voltage, and enter division circuit
2. The line voltage of the load is detected by the voltage detector(Tr2),
and, it enters the division circuit through the current setting unit
and the alarm setting unit
3. Divide circuit compares and divides both inputs, drives a relay
through a Schmitt circuit , and issues an alarm output
4. Since voltage and current are detected even if the power suplly changes
both increase and decrease at the same rate.
Due to this change no warning will be issued even if the current decrease.
Therefore this equipment can be applied even by using a power
supply device by thyristor phase control or the like.
5. The malfunction prevention circuit operates when the load voltage
is 15% (15V when rated 100V,30V in the case of 200V) or less
and the alarm output does not come out.
Heater broken alarm FAL-10G＜single phase,three phase dual use＞
■Characteristic
● Phase control,ON-OFF control,Zero cross control,etc can be used
regardless of the total
● One heater burnout detection in parallel heater
● Detection points can be set arbitararily by dual scale
● When the detection point is reached,"ALARM LP"lights,and an output
signal is emitted
● Three phase circuit is also OK with this one
● Panel mounting type(DIN rail only)
● RoHS compliant products
■Dimensions
62
1
Heater broken alarm FAL-10G＜single phase,three phase dual use＞
■Specification
Item name：
Model：
Installation method：
Installation power supply：
Load current：
Load voltage：
Heater capacity：
Adaptive load：
Alarm setting range：
Setting precision：
Detection sensitivity：
Detection method：
Alarm output：
Shape：
Insulation resistance：
Withstand voltage：
Terms of use：
Case material：
Weight：
※Two connectors ane not included
OMRON"XW4B-06C1-H1"sold separately
2 3
135
102
13
122
Heater broken alarm
FAL-10G
ＤＩＮ rail mounting
AC100V/200V ±10% 50/60Hz
0.3～5A(When exceeding 5A,C.T external attachment)
0～100V/0～200V
Below direct connection
0.5KW for AC100V,1φ
(line current 5A or less)
： 1KW for AC200V,1φ
： 1.7KW for AC200V,3φ
In case other than the avobe C.T use
Linearity load such as Nichrome wire
3～100%
±1.5%(Full scale)
0.5%(Full scale)
Input：
Phase control, H-L control, Zero cross control
Load current and load voltage
Relay contact 1C(rated 200V 0.1A resistive load)
Inboard mounting(DIN rail only)
50MΩ or more between each input/output terminal
(DC 500V mega meter )
Between each input/output terminal AC1500V/1minute
-10℃～50℃(with no condensation)
Polycarbonate PCN-6-3114(gray Flame retardance)
490ｇ
109
unit：mm
