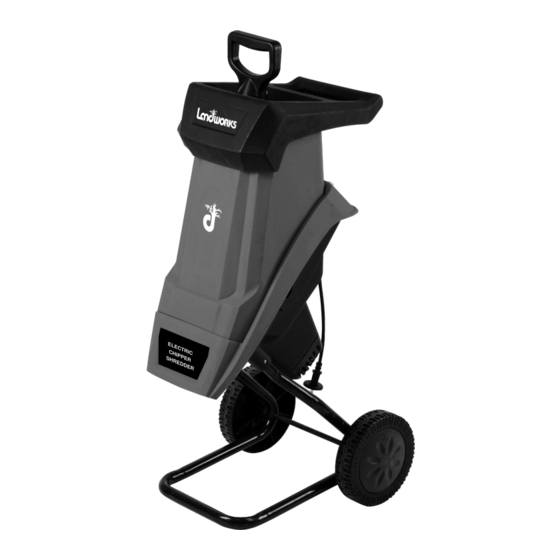

Electric Wood Chipper/Shredder
Instruction Manual
3190553
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
REV 05/28/19

Advertisement

loading
Need help?

Need help?

Do you have a question about the GUO023 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Landworks GUO023

Summary of Contents for Landworks GUO023

  • Page 1 Electric Wood Chipper/Shredder Instruction Manual 3190553 WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS For your own safety, always follow these basic precautions when using this appliance. 1. Read the user Manual carefully for operating instructions. Read all instruc- tions in this manual before use. 2. DO NOT use this product for anything other than its intended purpose. 3.

  • Page 3: Technical Details

    TECHNICAL DETAILS Electrical Rating 120VAC / 60Hz / 15A Blade Speed 4,300 RPM Blade Diameter 7" Maximum Limb Capacity 1.57" Diameter WARNING SYMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
  • Page 4 5. Extension Cord - Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized extension cord will cause a drop in line voltage resulting in loss of power and overheating.
  • Page 5 Gardening Appliance Use and Care 1. Avoid Dangerous Environment - Do not use appliances in damp or wet locations. 2. Do not use in rain. 3. Keep Children Away - All visitors should be kept at a distance from work area. 4.
  • Page 6 ASSEMBLY Bushing Wheel Cover 1. Slide the Axle (65) through the holes on the Lower Frame (64). Washer 2. Slide a Washer (66), a Bushing (67), a Wheel (68) and another Washer (66) onto one end of the Axle. 3. Secure in place with a Pin (63). 4.
  • Page 7 Operating Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Operation 1. Before operating the Chipper/Shredder, put on ANSI-approved safety goggles and other safety gear.
  • Page 8 Overload Protection This Chipper/Shredder is equipped with an overload protection system. If the unit clogs while running, the overload protection system will shut the power off. Wait at least one minute before restarting. Press the Reset Button then turn the Power Switch on. Maintenance and Servicing Procedures not specifically explained in this manual must be performed only by a qualified technician.
  • Page 9 1. Access the Blades by removing the Hopper. 2. Align the slots on the Cutter Head and main body and insert a screwdriver or other metal rod (sold separately) to prevent the unit from rotating while changing the Blades. 3. Unthread the two screws holding a Blade and carefully remove the Blade. 4.

  • Page 10: Parts List And Diagram

    PARTS LIST AND DIAGRAM PLEASE READ THE FOLLOWING CAREFULLY The manufacturer and/or distributor has provided the parts list and assembly diagram in this manual as a reference tool only. Neither the manufacturer or distributor makes any representa- tion or warranty of any kind to the buyer that he or she is qualified to make any repairs to the product, or that he or she is qualified to replace any parts of the product.
  • Page 12 Intradin (Shanghai) Machinery Co., Ltd. marketing@intradinchina.com www.intradin.com Size: 145x210mm 157克铜版纸 REV 05/28/19...
