DEVICE
FUNCTIONS
B102476/3
Bluetooth RS232 Adapters
Features
Bluetooth pairing and unpairing tools
-
Integrated antenna
-
Bluetooth Class 1 Radio
-
Data encryption
-
Automatic Bluetooth connection
-
Support Microsoft Windows Bluetooth COM port
-
RS232 interface in DB9 male or female
-
LED indicators
-
Configuration via Bluetooth or USB
-
Touch button power switch
-
Battery powered
-
-
Battery overdischarge protection (manually activate)
-
Up to 45 hours continuous use (9600bps) on 2 AA batteries.
-
Specifications
Bluetooth
Bluetooth v2.1 + EDR
Class 1 Radio
RS232
Connector: DB9 male/female
Baud rate: 1200bps to 115200bps
Parity: Even, Odd, None
Data length: 8-bit
Stop bits: 1-bit, 2-bit
Part
B102476
Number
B102473
Typical Applications
1. RS232 Extension over Bluetooth
App 1
Pair with your Bluetooth (SPP) enabled devices
Follow Device Pairing instruction to pair this adapter with your Bluetooth enabled device.
The paired Bluetooth devices will connect automatically. You can access your Bluetooth
enabled device remotely via Bluetooth adapter's RS232 port.
App 2
Pair two Bluetooth adapters
Follow Device Pairing instruction to pair the two adapters. The paired adapters will
connect automatically.
2. Microsoft Windows Virtual COM Port over Bluetooth
Power on Bluetooth adapter. Locate Bluetooth icon
select Add a Bluetooth Device. Follow Microsoft Windows on-screen instructions to install the device.
The authentication pin code is 1234. A virtual COM port (Outgoing direction) with SPP description will
be created. To check the COM port number, click
Settings. Click COM Ports in Bluetooth Settings window.
System Requirements
Configuring Bluetooth adapters on a PC requires:
Microsoft Windows 8, Windows 7, Windows Vista, or Windows XP.
-
eeTerminal (download from www.devicefunctions.com).
-
Bluetooth connection to PC or USB adapter H0087135M/F.
-
______________________________________________________________________________________________
Device Functions

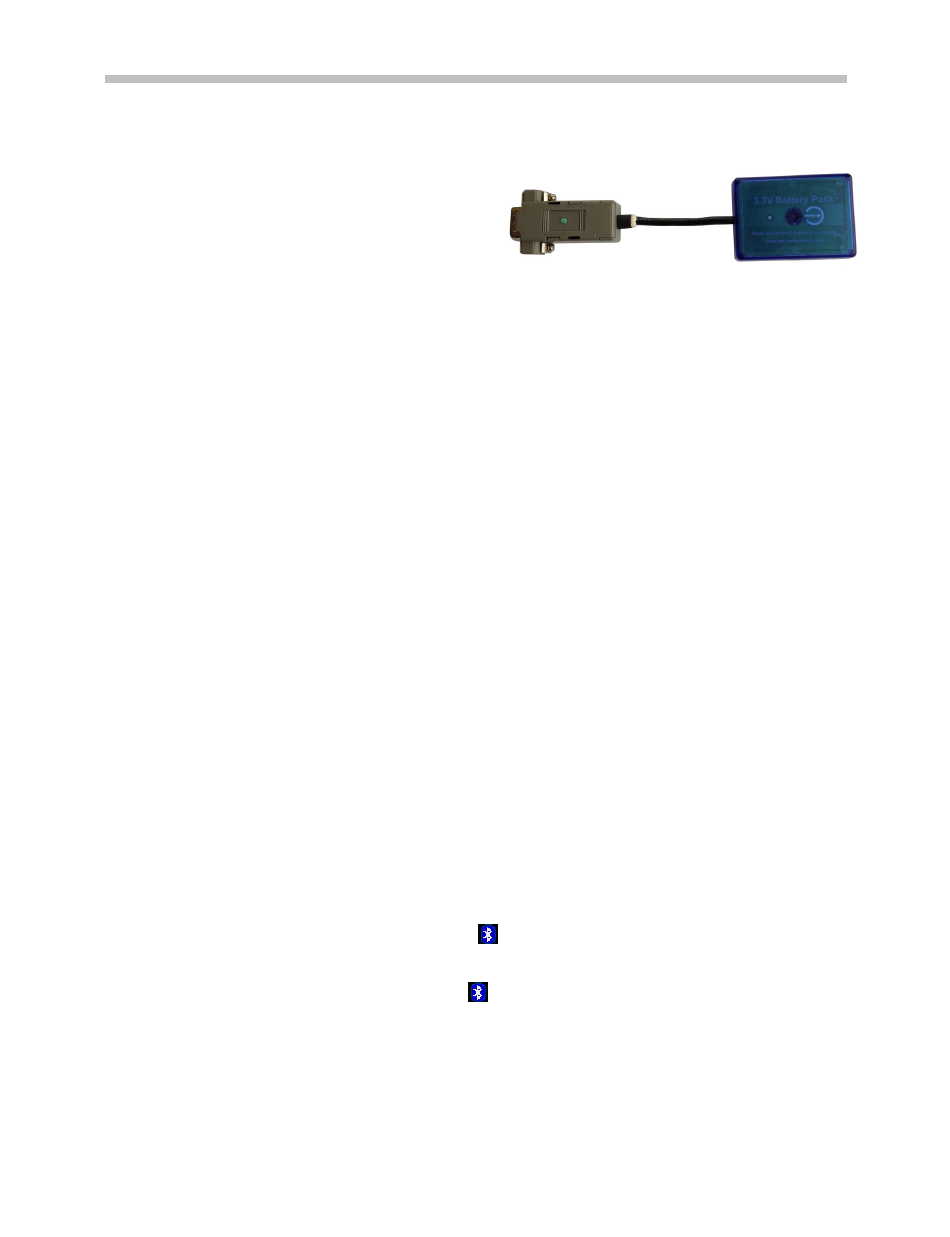

DB9 male
2-AA-battery pack
DB9 female
2-AA-battery pack
on Microsoft Windows taskbar. Click on it and
on Windows taskbar and select Open (Bluetooth)
www.devicefunctions.com
info@devicefunctions.com
Advertisement
Table of Contents
Related Manuals for Device Functions B102476/3
Summary of Contents for Device Functions B102476/3
- Page 1 DEVICE FUNCTIONS B102476/3 Bluetooth RS232 Adapters Features Bluetooth pairing and unpairing tools Integrated antenna Bluetooth Class 1 Radio Data encryption Automatic Bluetooth connection Support Microsoft Windows Bluetooth COM port RS232 interface in DB9 male or female LED indicators Configuration via Bluetooth or USB...
- Page 2 Less than 10% Change Batteries B102476/3 requires two AA batteries. Both Alkaline and rechargeable batteries can be used. Unscrew the screw on the battery pack. Remove the cover gently. Remove the old batteries and place the new batteries in. Align the + and - signs on the batteries with the + and - signs on the battery holder. Put on the cover and tighten the screw.
- Page 3 Click File from eeTerminal’s menu bar and click Open Device. A Select Device window, Fig 1, will popup in a few seconds with a list of devices. You may need to repeat this process until your ______________________________________________________________________________________________ Device Functions www.devicefunctions.com info@devicefunctions.com...
- Page 4 Plug H0087135 in your PC’s USB port. Connect Blueooth adapter with H0087135. Power on Bluetooth adapter. Start eeTerminal. Click File from eeTerminal’s menu bar and click Open Device. A Select Device window, Fig 3, will popup with a list of devices. ______________________________________________________________________________________________ Device Functions www.devicefunctions.com info@devicefunctions.com...
- Page 5 FUNCTIONS Fig 3 Select Device Functions Bluetooth RS232 Adapters from the device list and click Configure button. The Bluetooth Adapter Serial Port Settings window, Fig 4, will popup. If you have Bluetooth adapter’s RS232 settings, select the settings and click Ok button. If you don’t have the information, click Auto Baud button.
