- Page 1 POOL ROPOT PRC-2032 BRUKSANVISNING...
- Page 2 Important Precautions 1. In order to prevent severe damage to the cleaner, never power on the unit when it is outside of the swimming pool. 2. The power cord must be connected to an appropriate earthed socket. 3. Do not operate the cleaner when people are in the pool. 4.
- Page 3 14. After power off the machine, must wait until at least 30 seconds to restart it. 15. For different season different density of the filter net need to be chosen. More detail please contacts your local distributor. 16. This machine is for clean the pool only not for other purpose. 17.
-
Page 4: Table Of Contents
Contents Ⅰ. Introduction--------------------------------------------------------------------------------P 5 Ⅱ. Safety-----------------------------------------------------------------------------------------P 5 Ⅲ. Specifications------------------------------------------------------------------------------P 6 Ⅳ. Operation instructions------------------------------------------------------------------ P 7 Ⅴ. Packing list----------------------------------------------------------------------------------P 11 Ⅵ. Warranty--------------------------------------------------------------------------------------P 12... -
Page 5: Ⅰ.introduction

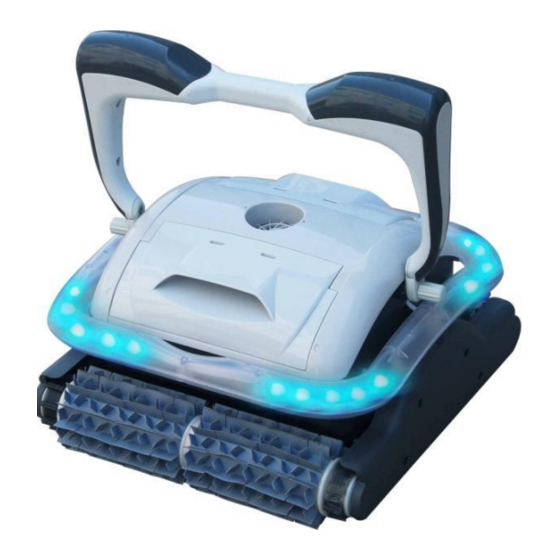

Ⅰ.Introduction The robotic pool cleaner HJ2032 is a new type of highly efficient and energy-saving swimming pool cleaning robot. Through its advanced computer controlled program, it can clean the pool walls and bottom automatically. At the same time, it filters the pool water and gets rid of suspended particles without replace the pool water. -
Page 6: Ⅲ. Specifications
Ⅲ. Specifications 1．Rated input voltage： 220VAC (230VAC)/ 110VAC (120VAC) 2．Frequency：50Hz/60Hz 3．Output voltage：DC20V 4. Power：200W 6. Remote control frequency：315 MHz 7．Cable length： 18m 8．Roller length：465mm 9．Max cleaning area：Appr. 200 ㎡ 10．flow rate：20m³/h 11．Filter net density： 180um 12．Pool water temperature：10℃-32℃ 13. Moving speed：MAX 12.5m/min 14. -
Page 7: Ⅳ. Operation Instructions
Ⅳ. Operation instructions 4.1 Panel No. Indicator Description Function Press this button, the cleaner starts to work; ON/ OFF Power on/ off Press a second time, the cleaner is stopped. When the cleaner is on, use this CYCLE To choose working cycle button choose preferred... - Page 8 together, with warning overload check if anything is sound stuck in impeller flash Driving motor Check if anything is together, with warning overload stuck in the belt sound Eliminate flash Cleaner out of inside the cleaner, together, with warning water immerge the cleaner sound and restart.
- Page 9 4.3 Clean the filter tray 2 ， 2. Lift the filter tray Lift the filter tray cover 3. Push towards the middle to 4. Move the filter panel outwards open the filter tray about 2 cm Center 5 .Pull out the filter panel vertically 6.
- Page 10 4.4 Assembly of transport caddy ( optional) 1. Open the package for assembling 2. Put the Connection part onto the plate 3. Insert the wheel axle 4. Assemble the protecting cover and axle cover 5, Assemble wheel 6. Put on the nut 7.
-
Page 11: Ⅴ. Packing List
Ⅴ. Packing list Quantity Item Name Note Model (pc) HJ2032 Cleaner In Carton HJ2032 Power supply unit In Carton Manual and certificates, etc. Cleaner Battery Mini Plastic Bag Antenna Mini Plastic Bag Remote control ( option) Mini Plastic Bag Top handle In Carton Connection part In Carton... -
Page 12: Ⅵ. Warranty
Ⅵ. Warranty This product has passed all quality control and safety tests, conducted by the technical department of the factory. Warranty information: 1. Warranty period is 2 years from the date of delivery and is settled in accordance with the terms established by Directive 1999/44/EC of 25 of May regarding guarantees on the sale of consumer goods as well as the local law in the Country of Purchase within the European Union. - Page 13 Please respect the European Union regulations and help to protect the environment. Return non-working electrical equipment to a facility appointed by your municipality that properly recycles electrical and electronic equipment. Do not dispose them in unsorted waste bins. For items containing removable batteries, remove batteries before disposing of the product.
