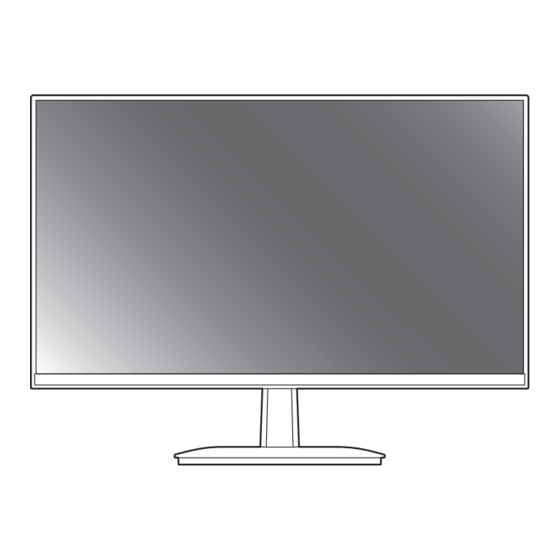

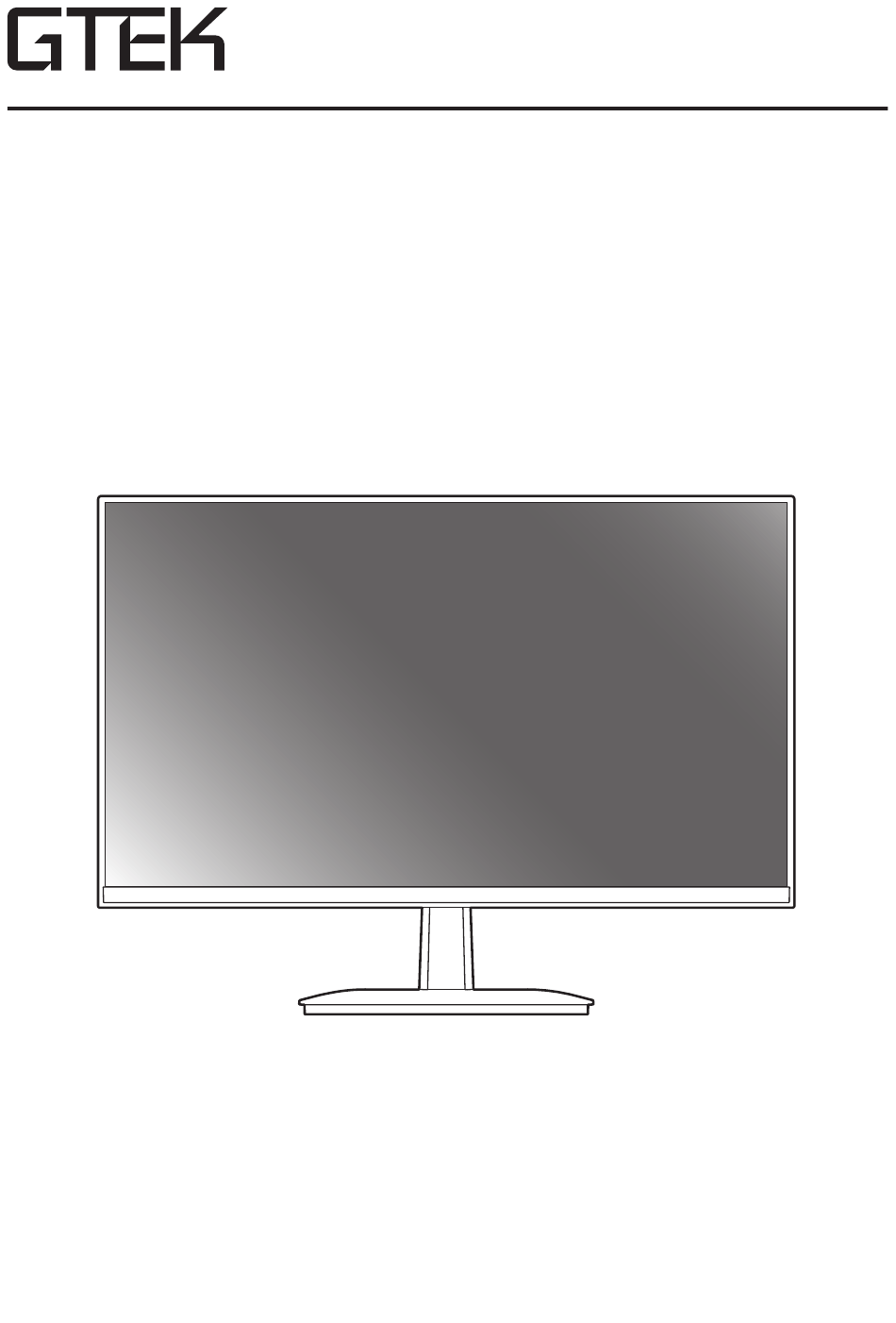

- Page 1 F2407V-D03 User Manual 24 Inch Monitor...
-
Page 2: Safety & Certification
Safety & Certification Important Safety Instructions Your monitor is designed and manufactured to operate within defined design limits. Misuse may result in electric shock or fire. To prevent your monitor from being damaged, the following instructions should be observed for the installation, use, and maintenance of your monitor. - Page 3 ●CAUTION: Always use a power outlet that is properly grounded. ●Unplug this monitor during lightning storms or when unused for long periods of time. ●When moving your monitor from an area of low temperature to an area of high temperature, condensation may form in the housing. Wait before turning on your monitor to avoid causing fire, electric shock, or component damage.
- Page 4 ●Unplug your monitor during a lightning storm or when it will not be used for long period of time. This will protect your monitor from damage due to power surges. ●Do not attempt to repair or service your monitor yourself. Opening or removing the back cover may expose you to high voltages, electric shock, and other hazards.
- Page 5 ●If any of the following occurs, contact the dealer: - The power cord fails or frays. - Liquid sprays or any object drops into your monitor - Your monitor is exposed to rain or other moisture. - Your monitor is dropped or damaged in any way. - The performance of your monitor changes substantially.
- Page 6 ●ALWAYS educate children about the dangers of climbing on furniture to reach the monitor or its controls. ●ALWAYS route cords and cables connected to your monitor so they cannot be tripped over, pulled or grabbed. ●NEVER place a monitor in an unstable location. ●NEVER place the monitoron tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the monitor...
-
Page 7: Regulatory Information
Regulatory Information FCC Class B Radio Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 8 Canada Notice for License-Exempt Radio Apparatus This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 9: Safety Precautions
Safety Precautions The packaging box contains the following items: 1. LCD monitor 4. Give Away Card 2. Stand neck 5. Power adapter 3. Stand base 6. Power cord Control Diagram LCD monitor key operation Function Description Ke y Menu key/OK Exit/Return to the previous menu, select signal source Move down / Select profile Move up / 16:9 or 4:3... -
Page 10: Interface Description
Interface Description Function interface HDMI D-Sub 2.5A Base Installation Guide 1.Take out the LCD monitor, stand neck and stand base from the carton. LCD monitor Stand neck Stand base... - Page 11 2. Align the bottom of stand neck with the stand base, and hear the sound of "cluck". 3. Lay the LCD monitor screen down, then push the stand in the LCD monitor as shown in the picture to install it, until hearing the sound of "cluck". Please be more careful with the installation of the stand : ①The LCD monitor must be placed flat.
-
Page 12: Main Osd Menu
Main OSD Menu a. Outline: Analog (Picture) Digital (Picture) Picture Picture Brightness Brightness Contrast Contrast Standard Standard Analog (Image setup) Digital (Image setup) Image setup Image setup H. Position H. Position V. Position V. Position Clock Clock Phase Phase Aspect Wide Aspect Wide... - Page 13 Analog (OSD Setup) Digital (OSD Setup) OSD Setup OSD Setup Language Language Timeout Timeout Transparency Transparency Analog (Reset) Digital (Reset) Reset Reset Auto Adjust Auto Adjust Auto Color Auto Color Reset Reset Analog (Extra) Digital (Extra) Extra Extra Input Input HDMI Sharpness Sharpness...
- Page 14 b. The description for control function: Main Menu Item 1st Sub Menu Item Description Adjust Range Reset Value Backlight Adjustment 0-100 Warm Brightness each step will Value Brightness increase/decrease value by 1 Contrast from Digital-register. 0-100 Warm Contrast each step will Value Contrast increase/decrease value by 1...
- Page 15 Main Menu Item 1st Sub Menu Item Description Adjust Range Reset Value Warm Recall Warm The Color Color Temperature will Temperature. be set to Warm. R/G/B value will be Standard Recall Normal modified by color Color temp. Temperature. The User R/G/B value (default is Cool Recall Cool...
- Page 16 Note: 1) Press the Menu/Enter button to activate the OSD window. 2) Press ▲ or ▼ to navigate through the functions. (Press “▲” key: the item will move to the forward item; Press “▼” key: the item will move to the next item), (Once the desired function is highlighted, press the Menu/Enter button to activate it.
-
Page 17: Product Specifications
PRODUCT SPECIFICATIONS Model code F2407V-D03 Screen size 24 inch Viewable Size (diagonal) 23.8 inch Panel Type Color Black Dot Pitch 0.2745(H) x 0.2745(V) mm Brightness 250 cd/m2 Contrast 3000:1 (Typ.) Display Color 16.7M Aspect Ratio 16:9 Response Time 9.5 ms Viewable Angle 178°(H) / 178°(V)
