1
INTRODUCTION
This manual provides installation instructions for the Pulsecom
Pulsecom 3O3D3-CPL2C REVB mounting or with a BP-19 or BP-23 rack-mounted bulkhead panel. The kit
provides two bulkhead-mounted 75-ohm coax male/male BNC jacks and cables that connect these jacks to
the front panel of O3D3-MO or O3-3D3DN modules. See Figure 1.
This practice has been reissued to remove information on the manufacture-discontinued CPM-DS3P Kit.
The CPM-DS3P has been replaced by the CSSI-DS3P and CSSI-PROT-MOUNT.
2
INSTALLATION
Follow Procedure 1 to install the CPM-DS3 Kit.
Trademarks used in this manual:
Pulsecom is a registered trademark of Hubbell Incorporated.
©2014 Pulse Communications, Inc. All rights reserved.
®
BULKHEAD CABLE KIT
CPM-DS3

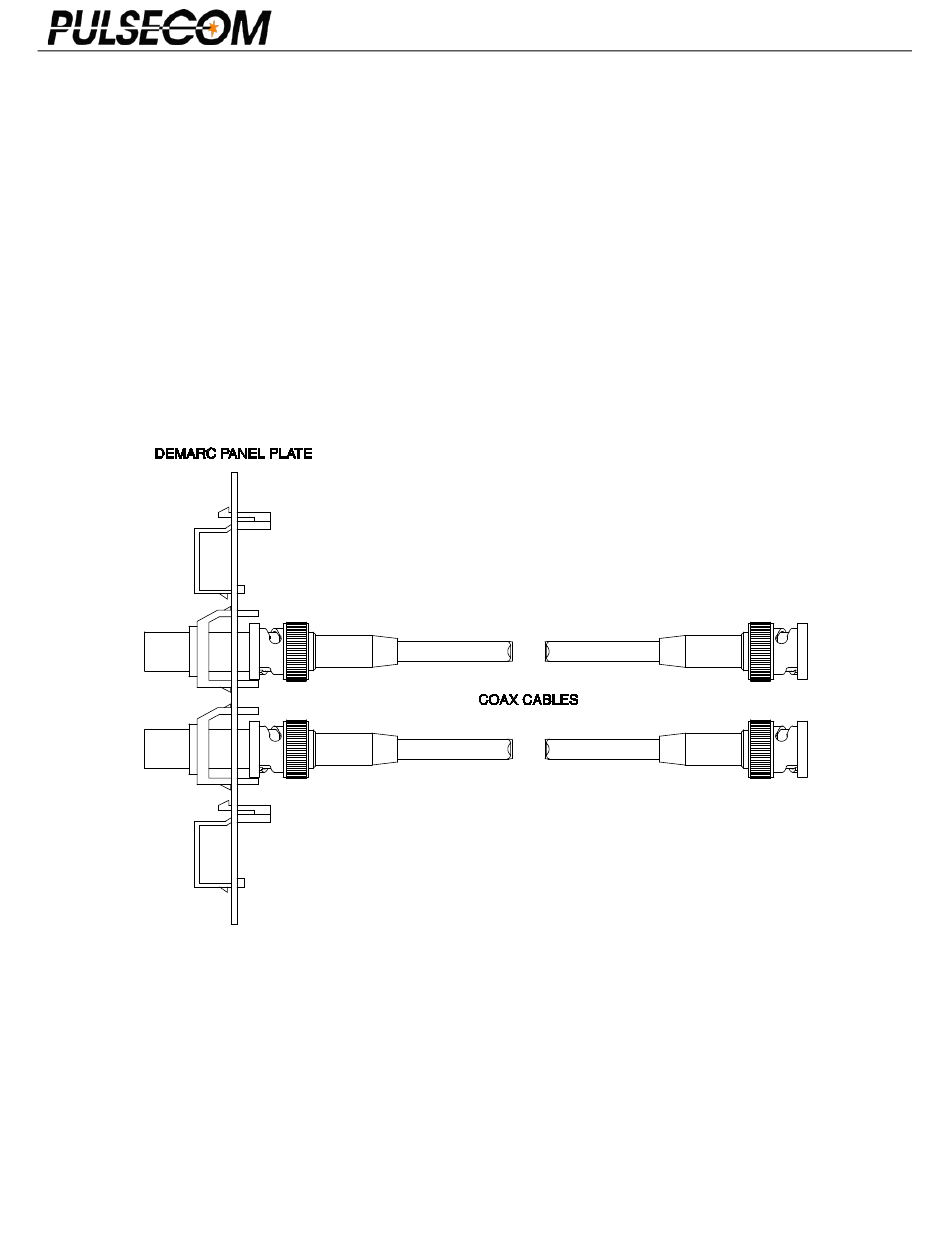

Figure 1: CPM-DS3 Bulkhead Cable Kit
®
CPM-DS3 Bulkhead Cable Kit used with the
1
Practice Section 1643
Issue 2, June 2014
Advertisement
Table of Contents
Summary of Contents for PULSECOM CPM-DS3
- Page 1 This manual provides installation instructions for the Pulsecom CPM-DS3 Bulkhead Cable Kit used with the Pulsecom 3O3D3-CPL2C REVB mounting or with a BP-19 or BP-23 rack-mounted bulkhead panel. The kit provides two bulkhead-mounted 75-ohm coax male/male BNC jacks and cables that connect these jacks to the front panel of O3D3-MO or O3-3D3DN modules.
- Page 2 Step 3. If using the BP-19 or BP-23 , remove the screws next to the desired CPM-DS3 mounting position; save these screws for use in Step 3. Ensure that a pair of BNC feed-through couplers is snapped into place in the CPM-DS3 demarc panel plate (provided with the kit).
