EXOGAL Comet Disassembly and Reassembly Manual
The Comet is designed to be easily serviceable by dealers and distributors. We purposely designed it with
modules that can be easily exchanged because component-level servicing of a highly-integrated digital
processing device is fundamentally impractical!
OPENING THE COMET / REMOVING THE BOTTOM

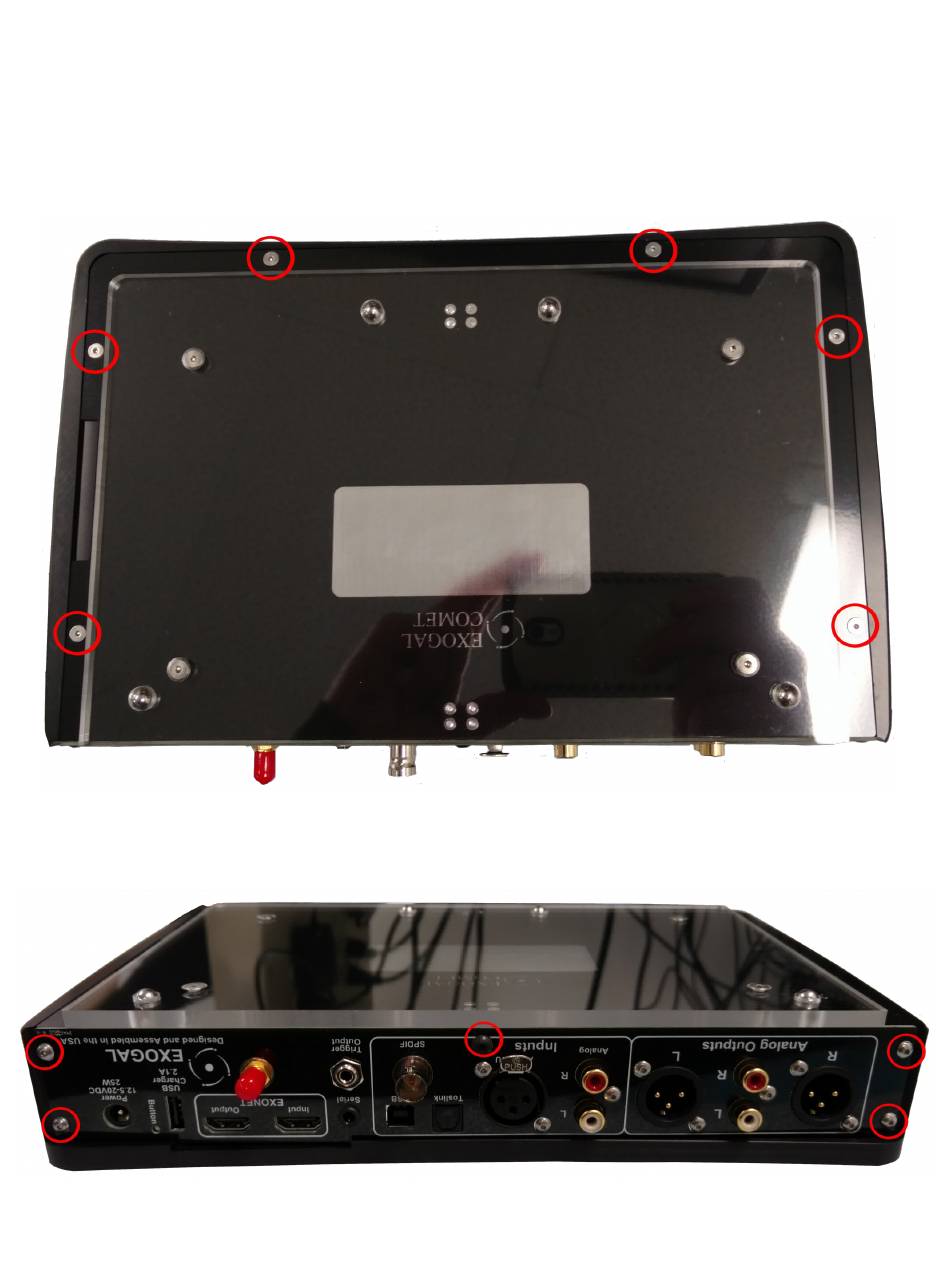

Remove the six (6) Flat Head Hex Screws from the bottom of the unit using a 1/16th inch hex driver:
Next, remove the four screws from the corners of the back panel and the one screw from the center of the
back panel:
Note: The center screw is a different size, 5/64
th
inch, and type than the four edge screws, 1/16th inch! Keep
them separate.
Advertisement
Table of Contents
Related Manuals for Exogal Comet
Summary of Contents for Exogal Comet
- Page 1 EXOGAL Comet Disassembly and Reassembly Manual The Comet is designed to be easily serviceable by dealers and distributors. We purposely designed it with modules that can be easily exchanged because component-level servicing of a highly-integrated digital processing device is fundamentally impractical!
- Page 2 Gently pry the bottom away from the back panel. There are no adhesives used but the Comet is built to tight tolerances and you should expect that it will require some effort to lift it. It is...
- Page 3 (Place the defective main board in the protective wrapper and return it to EXOGAL.) Once the bad board is returned to EXOGAL another good one will be sent to you.
- Page 4 BACKPANEL REPLACEMENT If you need to replace the back panel, remove the 8 screws on the XLR and RCA connectors. Then, remove the Trigger Output cable and the SPDIF cable from the Main Board.Note that on both cables, the RED wire is Pin 1. Also remove the Bluetooth antenna connector from the main board.
- Page 5 LCD DISPLAY MODULE REPLACEMENT To replace the LCD Display Module you will need to remove the main board as described earlier. It is not necessary to remove the back panel from the main board in order to replace the LCD Display Module! Once the Electronics Assembly is removed, the LCD module is removed by simply pulling it off of the main board.
- Page 6 REMOVING THE ACRYLIC BOTTOM Remove the Bottom Assembly as described earlier. Place a towel or rag onto your work surface to avoid any scratches from the metal parts inside the Bottom Assembly. Once the Bottom Assembly is removed, set it down on the towel. Remove the four (4) flat head hex screws with a 5/64” hex driver. Lift off the old acrylic base.
- Page 7 “pivot” the bottom down onto the Comet chassis. It may be necessary to flex the back panel out in order to properly seat the bottom on the chassis. Reinstall the six (6) screws on the bottom and the five (5) screws on the back panel and the Comet is back together.
