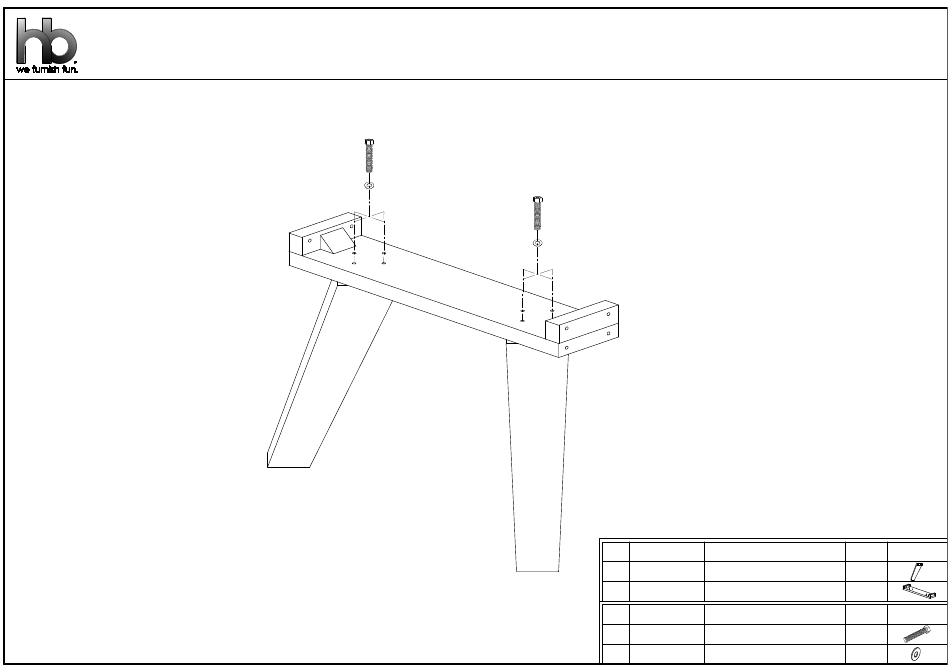

Step 1: Attach the Top Legs to the Legs by using Bolt (A) and Washer (B)
#7225-ARLO 8' BT
ASSEMBLY INSTRUCTION
A
B
2
1
A
B
1
NO
NAME
1
LEG
23 25/32" x 8 7/16"x 8 7/16"
2
WASHER
36 7/32" x 6"x 4 3/32"
NO
NAME
A
BOLT
Ø3/8" x 2 3/4"
B
WASHER
Ø3/8" x Ø3/4"
VERSION 06/05/2022
1
/7
SIZE
PCS DRAW
4
2
SIZE
PCS DRAW
16
16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7225-ARLO 8' BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HB 7225-ARLO 8' BT

  • Page 1 VERSION 06/05/2022 #7225-ARLO 8' BT ASSEMBLY INSTRUCTION Step 1: Attach the Top Legs to the Legs by using Bolt (A) and Washer (B) NAME SIZE PCS DRAW 23 25/32" x 8 7/16"x 8 7/16" WASHER 36 7/32" x 6"x 4 3/32"...
  • Page 2 VERSION 06/05/2022 #7225-ARLO 8' BT ASSEMBLY INSTRUCTION Step 2: Attach the Panels 2 to the Legs by using Bolt (C) and Washer (D) NAME SIZE PCS DRAW END PANEL 2 26 5/8" x 5 3/16" x 2 1/2" SIDE PANEL 2 57 5/16"...
  • Page 3 VERSION 06/05/2022 #7225-ARLO 8' BT ASSEMBLY INSTRUCTION Step 3: Attach the Side panels 1 to the Legs by using Bolt (A),(E) ,Washer (B) and Nut(F). Step 4: Attach the End panels 1 to the Side panels 1 by using Bolt (G) and Washer (D).
  • Page 4 VERSION 06/05/2022 #7225-ARLO 8' BT ASSEMBLY INSTRUCTION Step 5: Attach the beams to the panels 1 by using Bolt (G),(H) and Washer (D). NAME SIZE PCS DRAW BEAMS 36 7/32" x 4 11/32" x 1 3/8" NAME SIZE PCS DRAW WASHER Ø5/16"...
  • Page 5 VERSION 06/05/2022 #7225-ARLO 8' BT ASSEMBLY INSTRUCTION Step 6A: Locate the center piece of framed slate and position it on the cross beam assembly so that it is centered to both the length and width of the assembly (you must be very accurate with placement).
  • Page 6 VERSION 06/05/2022 #7225-ARLO 8' BT ASSEMBLY INSTRUCTION Step 8: Attach the Side Blinds by using Connect Blinds, Bolt (J) and Washer (K) . Step 9: Attach the End Blinds to the Side Blinds by using Corner metals (N), Dowel (L), Bolt (M) and Washer (K) .
  • Page 7 VERSION 06/05/2022 #7225-ARLO 8' BT ASSEMBLY INSTRUCTION Step 10: Attach rail/blind assemblies to the slate using Dome Washer (U), Star Washer (V), Threaded rod (W) and Nut (F). Step 11: NOTE: the side pockets and corner pockets ARE different and will only work correctly one way.
