Summary of Contents for STI Sterisets WB1000F

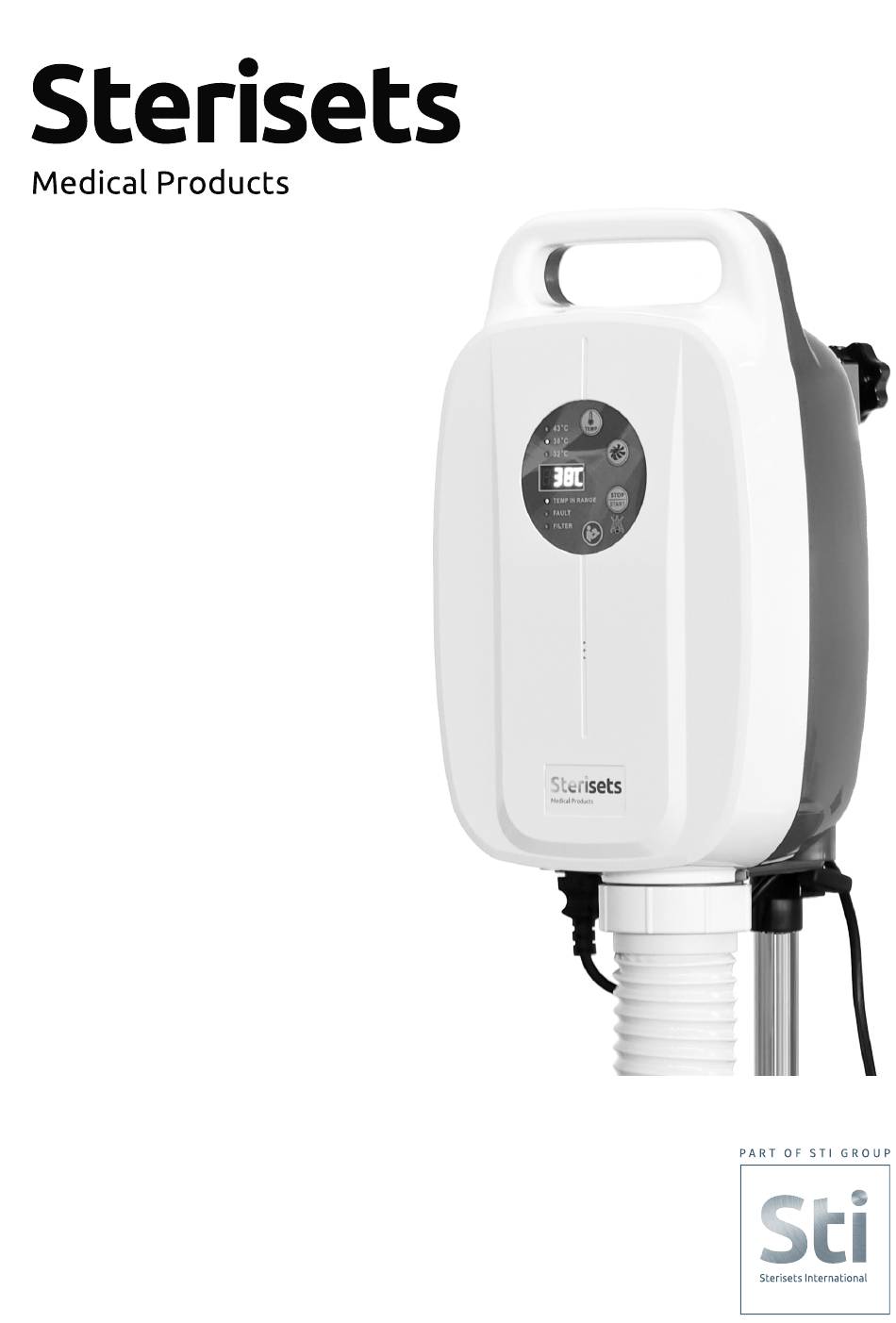

- Page 1 Blanket Warming Unit Operator Manual Model: WB1000F REF: 85000 Sterisets International BV Ketelmeer 3 | 5347 JX Oss | The Netherlands P +31 (0)412 667 755 | E info@sterisets.com www.sterisets.com...
- Page 2 Sterisets International BV Ketelmeer 3. 534JX Oss, The Netherlands P +31 (0)412 667 755 info@sterisets.com www.sterisets.com Dongguan Kaiser Technology Co., Ltd. No.6, 2nd Road, Sanjiang Industrial Block,Hengli Town, Dongguan City, 523462 Guangdong P.R.China MedNet EC-REP GmbH Borkstrasse 10, 48163 Muenster, Germany.
-
Page 3: Table Of Contents
Table of Contents page 3 Instruction manual page 4 Overview page 4 Control panel page 4 Attach Flexible Hose page 4 Mount on an I.V. Pole page 5 Attach Blanket page 5 Instructions for use page 5 Over temperature Condition page 6 User Requirements page 6... -
Page 4: Instruction Manual
Instruction Manual General Description The Sterisets® Blanket Warming System is a forced-air warming system, using convective warming to prevent and treat hypothermia. It consists of two components: a Blanket Warming unit and a single-use blanket. The blanket is connected to the flexible hose of the warming unit. Warm air from the warming unit passes through the hose into the blanket. -
Page 5: Overview
Overview Handle Control Panel Trolley / I.V. Pole Bumper Hose Port Proximal Extremity Distal Extremity Hose Connector Bedrail Bracket Trolley / I.V. Pole Clamp Securing Clip Power Cord Holder Control panel Attach Flexible Hose 1 . Place the unit on a stable surface, make sure the power is not connected. 2 . -
Page 6: Attach Blanket
Attach Blanket 1 . Insert the Distal End of the Flexible Hose into the selected Sterisets Blanket. 2 . Tie up the blanket on the Flexible Hose. 3 . Ensure that it is well secured. Instructions for Use 1 . Connect the unit to the power source. It will run a 1 second power-on self light test and finish with the standby light ON (orange) and the preset High Fan light ON (green). -
Page 7: User Requirements
User Requirements The device is to be operated by a skilled professional only. Please request your supplier for any additional training if desired. System Fault Troubleshooting When the system fails, it will automatically turn off the heater and fan. The screen will display fault code, OVER TEMP and TEMP IN RANGE light indicator will flash simultaneously. -
Page 8: Transportation And Storage
Transportation and Storage · Temperature: +5 to +/-45°C · Relative Humidity: 80% RH maximum Disposal Please dispose the device in accordance with EC Directive - WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal. Specifications ·... -
Page 9: Annex I Hepa Filter Replacement
Annex I HEPA filter replacement HEPA Filter Replacement - Instruction Manual The FILTER light will light up after 500 hours or every 12 months of use to remind to replace the filter. Warnings . ALWAYS power off the device and unplug the power cord from the outlet before filter replacement. -
Page 10: Annex Ii Blanket Assortment
Annex II Blanket Assortment Description Size (cm) Packaging 85100 Full Body 195 x 100 4 x 10 85110 Multi Access 195 x 100 4 x 10 85120 Abdominal Access 192 x 180 4 x 10 85150 Adult Tube 217 x 91 4 x 10 85200 Lower Body...
