Havana low shelf

Advertisement

Quick Links

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.
Tools Needed
Helpline
If you have any problems with this product or require
any replacement fittings please contact Customer
Services Tel: 0844 844 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found
to be faulty. Should you need to return the unassembled product, please repack in the original packaging.
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of 2 persons is required to assemble this product.
PRODUCT INFORMATION
• Made from particleboard,MDF with a wood effect finish.
• Made in Indonesia.
CARE INSTRUCTIONS
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent
scratching or damage.
• Ensure the mats and coasters used do not have an abrasive surface underneath.
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or
warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.
738602
ASSEMBLY INSTRUCTIONS.
1 of 9

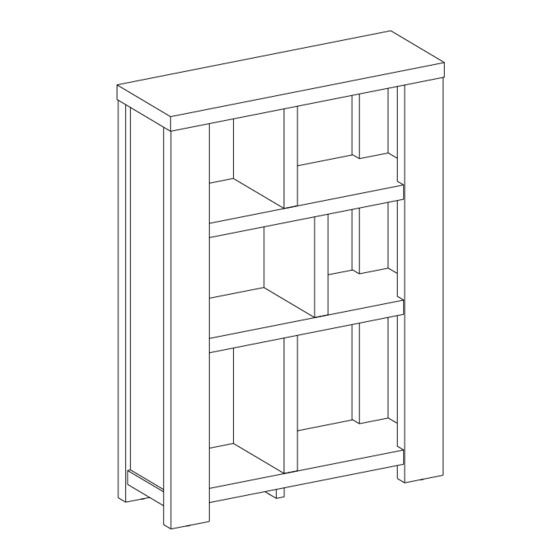

HAVANA LOW SHELF

Advertisement

loading
Need help?

Need help?

Do you have a question about the 738602 and is the answer not in the manual?

Questions and answers

Summary of Contents for Next 738602

  • Page 1 738602 HAVANA LOW SHELF ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. Tools Needed Helpline If you have any problems with this product or require any replacement fittings please contact Customer Services Tel: 0844 844 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty.
  • Page 2 FITTINGS 15x12 mm. 7.5X32 mm. 8x32 mm. F10x50 mm. 150 mm. P6x19 mm. Ax22 Bx22 Cx30 4 mm. PARTS 2 of 9...
  • Page 3 STEP ONE 1. Insert 6x cambolts (B) into the holes of panel 1 and tighten with a screwdriver. STEP TWO 1. Insert 4x camlocks (A) into the holes of panel 2 and ensure that arrow indicator is pointing towards the panel edge before tightening with a screwdriver.
  • Page 4 STEP FOUR 1. Insert 8x camlocks (A) into the holes of panels 4 (x2) and ensure that arrow indicator is pointing towards the panel edge before tightening with a screwdriver. 2. Glue and Insert 8x wooden dowels (C) into the end of panels 4 (x2). 3.
  • Page 5 STEP EIGHT 1. Glue 2x wooden dowels (C ) on panel 7. 2. Attach panel 7 to the panel 2 by using 2x screws (D), turn clockwise with a cross-head screwdriver until tight. STEP NINE 1. Glue 2x wooden dowels (C ) on panel 5. 2.
  • Page 6 STEP ELEVEN 1. Glue 2x wooden dowels (C ) on panel 5. 2. Attach panel 4 to the assembled unit by using 2x screws (D), turn clockwise with a cross-head screwdriver until tight. STEP TWELVE 1. Glue 2x wooden dowels (C ) on panel 6. 2.
  • Page 7 STEP FOURTEEN 1. Glue 6x wooden dowels (C) on panels 2 and 4 (x2). 2. Attach panel 3 to assembled unit by using camlocks (A), turn clockwise with a cross-head screwdriver to secure all panels together. STEP FIFTEEN 1. Glue 6x wooden dowels (C) on panels 2 and 4 (x2). 2.
  • Page 8 STEP SEVENTEEN 1. Turn the unit upright, lifted by 2 person. 2. Glue 6x wooden dowels (C) on panel 3 (x2) and 5. 3. Attach panel 1 to the assembled unit by using camlocks (A), turn clockwise with a cross-head screwdriver to secure all panels together.
  • Page 9 Use the foil stickers to cover all visible camlock holes from construction. Ensure when placing the sticker the grain of sticker follows the direction of the grain of the panel. This will give a better visual appearance. Next Retail Ltd, Desford Road, Leicester, LE19 4AT 9 of 9...
