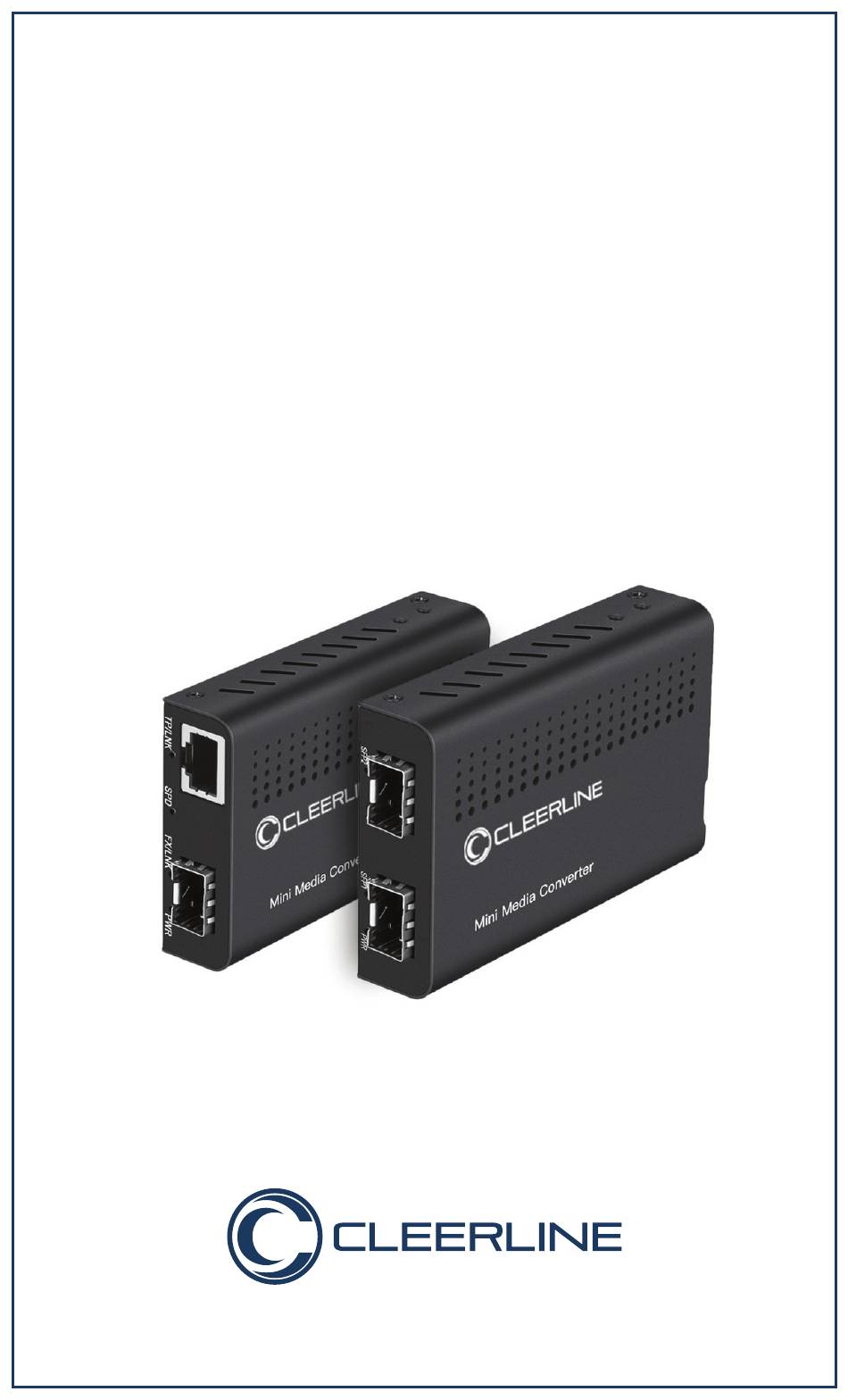

- Page 1 SSF-SFP-RJ45-1G / SSF-SFP-SFP-CON Gigabit Fiber Media Converters Manual www.cleerlinefiber.com...
- Page 2 Gigabit Fiber Media Converters GIGABIT FIBER MEDIA CONVERTERS Ordering Information SSF-SFP-RJ45-1G Gigabit Media Converter 10/100/1000Base-Tx to 100/1000Base-X SFP slot, DIP sw config., AC adapter included SSF-SFP-SFP-CON multi-rate Media Converter SFP slot to SFP slot, DIP sw config., AC adapter included...
- Page 3 Gigabit Fiber Media Converters DIP Switch Settings MODEL SSF-SFP-SFP-CON Function Settings SW 1 OFF – Disabled ON – Enabled OFF/OFF Store & Forward SW 2 Forwarding Mode OFF/ON Cut Through ON/OFF Smart Pass Through SW 3 (paired setting 2&3) ON/ON Pass Through SW 4 FX port 100M mode...
- Page 4 Gigabit Fiber Media Converters Technical Specifications Standards IEEE 802.3, 802.3u, 802.3z, 802.3ab Connectors SFP slot, RJ45 UTP port, DC power plug RJ45, Auto MDI/MDI-X, full duplex, 10M, 100M or UTP port 1000M modes Supports 100M or 1000M speed SFPs (up to 2.5G SFP slot for SSF-SFP-SFP-CON) Adapter with AC 100-240V input, 0.5A...
