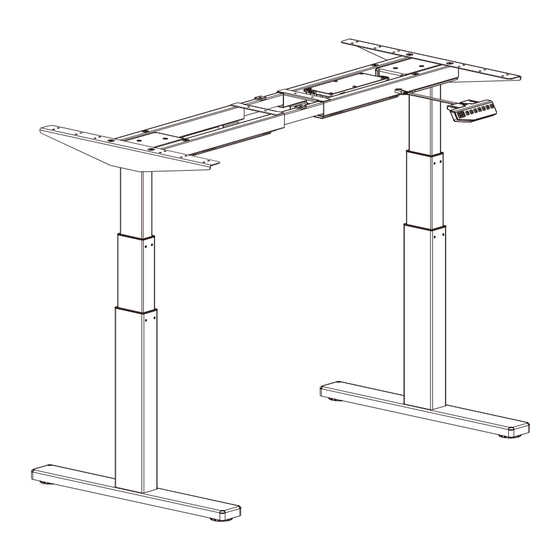

DMTrade SPE-201 Installation Manual

Item No.：S S S P P P E-201
Installation guide
Technical data
3 100- 240V
Column qty Input Voltage
Max Loading
38m m
125KG
Max Speed
capacity
0- 4 0°C
600-1230mm
Height range Temperature
C E F C C C U L
Length range 1100-1800mm Certification
Frequency continuous operation for 2 mins at most after pause for 18 mins
Component list
No. Part Qty No. Part Qty
1 2 2 2
Lifting Column
Pedestal Pad
No. Part Qty No. Part Qty
3 1 4 2
Supporting beam Supporting plate
No. Part Qty No. Part Qty
5 2 6 1
Cable management
Control box
No. Part Qty No. Part Qty
Handswitch
7 1 8 1
Power cable
Accessor y list
Attention: The drawings below are only for reference which might be
slightly different from the actual object, please in kind prevail. Any
tools missing or installation problems, please contact the customer
service firstly.
No. Image Spec
M8×16mm
A
ST4.2x16mm
B
M8×35mm
C
/ s
D
Square spacer
E
Wrench
4x4mm
6
8
4
3
5
2
1
Step 1
C
x4
E
E
5x5
Ground
Qty
To avoid scratch, please lay a
padding on the ground when
8
Attention installation.
26
Step 2
8
C
x4
6
E
Wrench
1
5x5mm
5x5
Ground
Install supporting plate (4), use 5*5
wrench (E) to tighten the screws (C).
7
Step 3
A
x8
E
5x5
Install pedestal (1) and lifting
column (2) together, use
5*5wrench (E) to tighten the
screws (A).
Install Desk Leg
3
C
Install Supporting Plate
C
E
4
3
Install Pedestal
A
E
1
2
Tabletop
Install lifting column (2) &
supporting beam (3) together,
use 5*5 wrench (E) to tighten the
screws (C).
E
A
