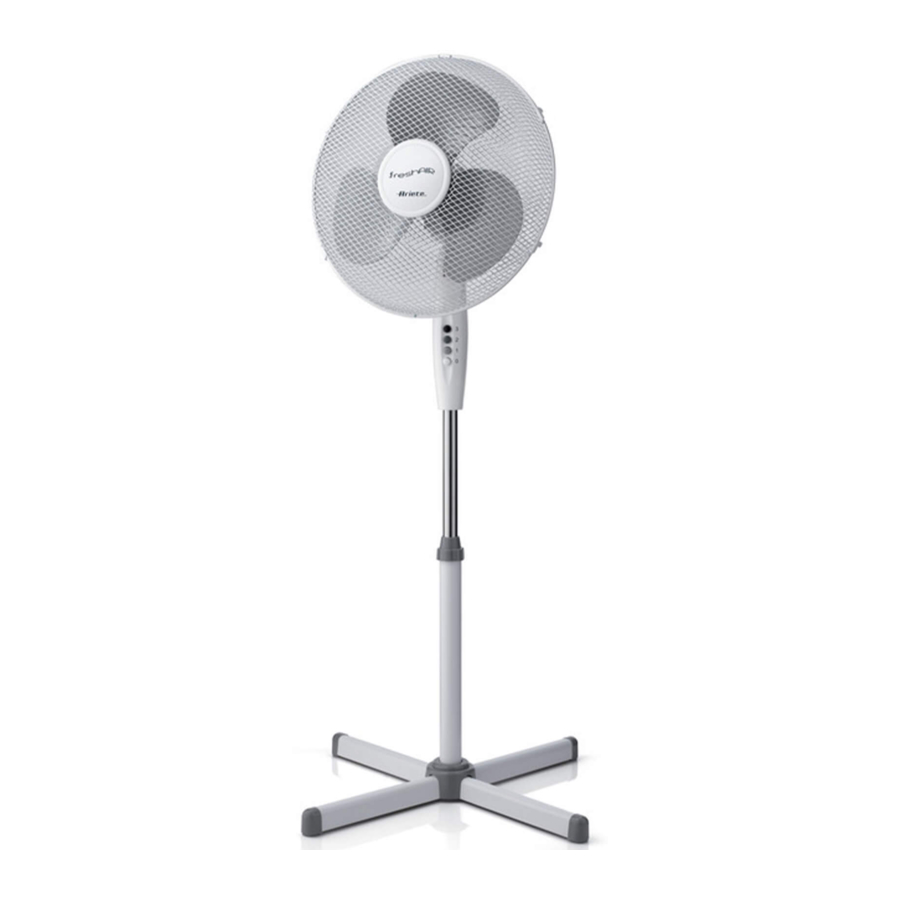

ARIETE 845 - Stand Fan Manual

APPLIANCE DESCRIPTION

1. Front grid
2. Front blade locking ring nut
3. Blade
4. Rear grid locking ring nut
5. Rear grid
6. Motor shaft
7. Motor unit
8. Oscillation function button
9. Tilting unit

12. Speed adjusting controls
13. Appliance body locking screw
14. Adjustable pole
15. Height adjusting knob
16. Main tube
17. Base
18. Base cover
19. Feet
20. Cap

ASSEMBLY

• Insert the main tube (P) on the base (Q) and lock it using the locking screws.
• Position the appliance into the adjustable tube (N) and lock it with the apposite screw (M).
• Mount the feet on the base ends (Q).
• Position the rear grid (E) onto the shaft (F) of the motor unit (G) and fix it by inserting and rotating the apposite ring nut (D) clockwise until it locks in place.
• Insert the blade (C) onto the motor shaft (F) and slightly press it.
• Lock the blade (C) by screwing the corresponding front ring nut (B) on the shaft, until it locks in place.
• Assemble the front grid (A) with the rear one (E) by means of the apposite hook on the front grid (A) and lock them together by screwing with a screwdriver and corresponding screw. Close the clips around the front grid edges so that they lock both grids.
• Adjust the appliance height after having rotated the adjusting knob (O) anti-clockwise. Lock the tube by rotating the knob clockwise.
• Apply the cap (T) on the front grid (A).

ATTENTION:
Before using the appliance, make sure the appliance is properly assembled.

HOW TO OPERATE

• Position the appliance on a flat, dry surface and adjust the blade angle by rotating the tilting unit (G) forward or backward, to obtain the required angle of air flow. Lock with the apposite screw (M).
• Make sure the speed adjusting control (L) marked with "0" is pressed, in order to disable all other controls, and plug the appliance in.
• Set the required air flow using the speed adjusting controls (L).
• For the oscillation function, press the relevant button (H) downward to start and press is upward to stop.
• After use, rotate the speed adjusting control (L) marked with "0", and then unplug the appliance.

CARE AND CLEANING

• Clean the outside of the appliance using a clean, damp cloth.
• Do not use solvents or abrasive agents for cleaning.
• The cooling blades on the motor unit (G) must be always free from dust. Remove dust with a vacuum cleaner, if necessary.
