- Page 1 Operating Instructions Flask Press EWL 5407 1.000.8796 KaVo Elektrotechnisches Werk GmbH Wangener Straße 78 D-88299 Leutkirch Tel.: 0 75 61 / 86-0 • Fax: 0 75 61 / 86-22 2...
-
Page 3: Table Of Contents
Care of the unit ............................5 A 8.1 Cleaning ..............................5 A 8.2 Maintenance ............................5 A 8.3 Accessories ............................5 A 8.4 Repairs ..............................5 Technical Data ..............................6 A 9.1 Flask Press for 1 – 3 Flasks ........................6 Warranty information ............................6 Spare parts ..............................7 EWL 5407... -
Page 4: A 1 Features

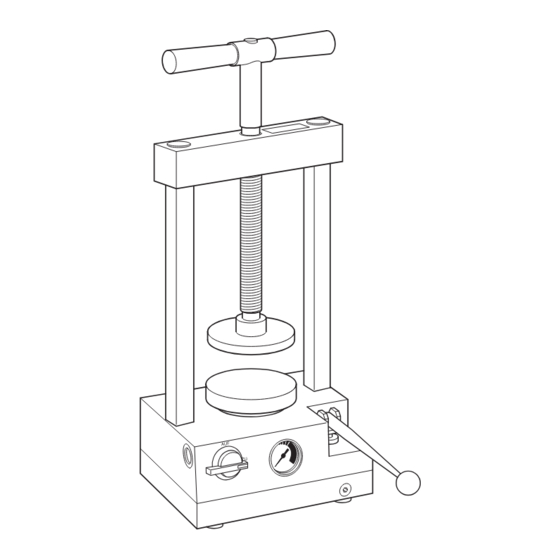

A 1 Features Flask Press EWL 5407 is designed to compress flasks, both individually and appropriate to the material, by means of a smooth build-up of the working pressure to 6 metric tons. After completion of the procedure, Flask Press EWL 5407 is immediately ready for further operation, as the reinforced synthetic-resin pressure piston automatically retracts after opening the valve. -
Page 5: A 4 Preparing For Installation
The usual pressure required lies between 2,5 and 5 metric tons. This area is coloured green on the manometer. In order to prevent damage to flasks and the press, do not pump beyond the maximum indicated on the manometer. EWL 5407... -
Page 6: A 6 Operating The Unit
- Re-assembly follows in reverse order, whereby two points must be observed: a) Do not cant the pump plunger b) Take care not to damage the quad ring. If the above measures do not solve the problem, contact your local Dealer or our Technical Customer Service. EWL 5407... -
Page 7: A 8 Care Of The Unit
Do not use any chemicals. The freely-visible piston track should be cleaned daily with a clean linen cloth, then lightly lubricated with the recommended hydraulic oil. The nameplate must always be legible, and never be removed. A 8.2 Maintenance The KaVo EWL Flask Press requires no special maintenance. Simply ensure that the unit is always clean. A 8.3 Accessories Mat. No. Description 1.001.2187... -
Page 8: A 9 Technical Data
Within the scope of the current Delivery and Payment Conditions, KaVo EWL warrants the unit to be free from malfunctions, defects in both materials and workmanship for a period of 6 months from the date of purchase. At the end of this warranty period, KaVo provides a further 6-months guarantee for faults arising, which can be traced back to deficiencies in materials or the manufacturing process. -
Page 9: Spare Parts
EWL 5407 SPARE PARTS Spare parts 1.001.3423 1.001.2168 1.001.2201 1.001.2170 1.001.2198 1.001.2200 1.001.2204 1.001.2199 1.001.2181 1.001.2182 1.001.2200 1.001.2169 EWL Hydraulic Oil 0.489.2007 EWL 5407...
