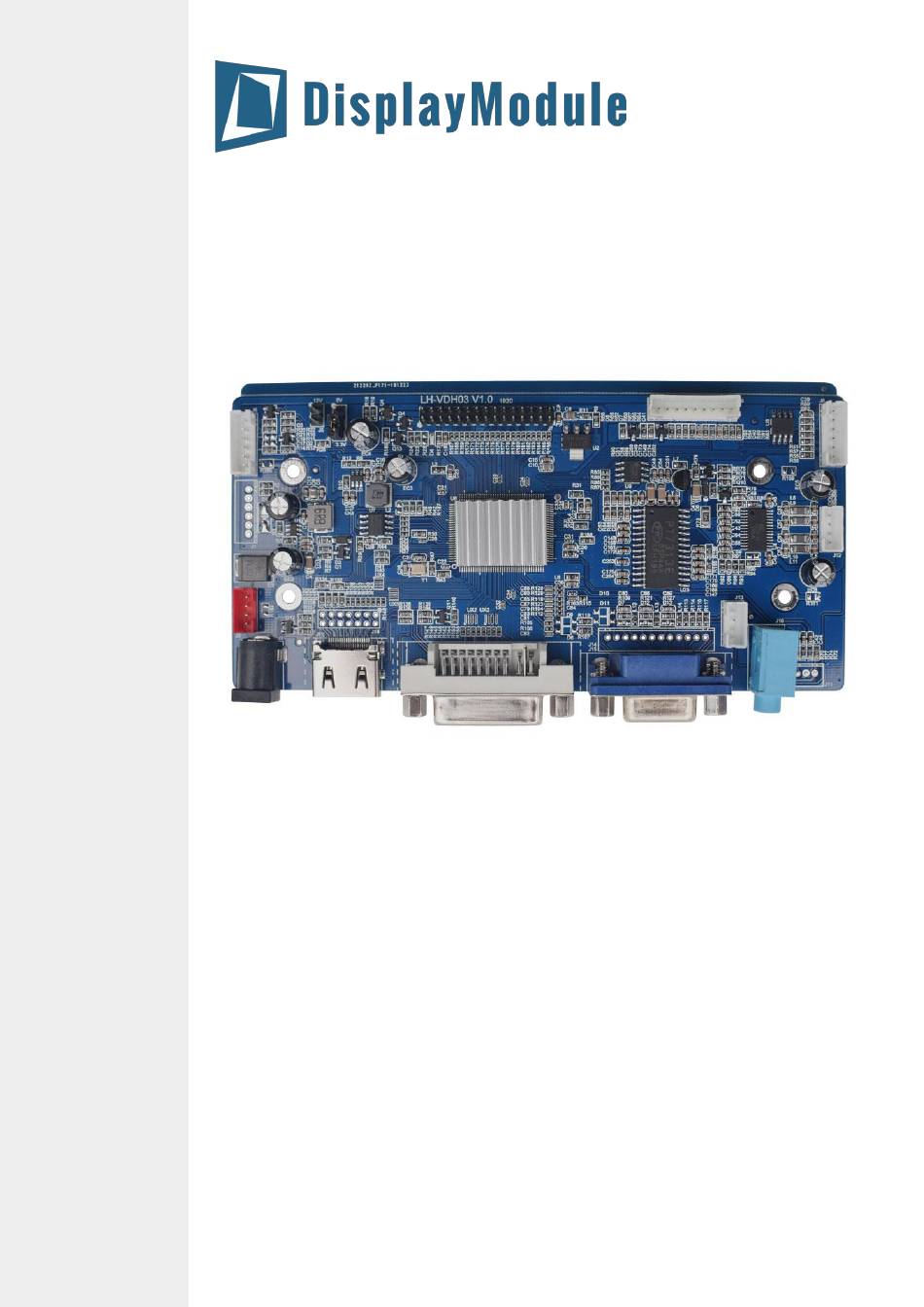

- Page 1 DM-ADTTR-018 DISPLAY ADAPTER FOR HDMI TO LVDS...
-
Page 2: Table Of Contents
DM-ADTTR-018 Contents 1 Revision History 2 Main Features 3 Pin Description 3.1 J2(PJ-20 Connector) Power input 3.2 J3(PH2.0 Connector) Power input 3.3 J18(2.0mm double row needle) HDMI input 3.4 JP2(HDMI Tpye A) HDMI input 3.5 J16(DVI-D) DVI interface 3.6 J14(PH Connector) pin head for VGA 3.7 J15(D-SUB-15) VGA input... -
Page 3: Revision History
DM-ADTTR-018 1 Revision History Date Changes 2020-03-26 First release 2 Main Features Specification Unit Item 20pin LVDS output HDMI to LVDS VGA to LVDS 20pin LVDS output DVI to LVDS 20pin LVDS output Maximum Resolution 1920 1080 139 x 66... -
Page 4: Pin Description
DM-ADTTR-018 3 Pin Description 3.1 J2(PJ-20 Connector) Power input Pin No. Symbol Function Description Ground Ground 12V Power input 3.2 J3(PH2.0 Connector) Power input Pin No. Symbol Function Description 12V Power input 12V Power input Ground Ground 3.3 J18(2.0mm double row needle) HDMI input Pin No. -
Page 5: Jp2(Hdmi Tpye A) Hdmi Input
DM-ADTTR-018 3.4 JP2(HDMI Tpye A) HDMI input Pin No. Symbol Function Description TMDS Data2+ Ground TMDS Data 2- TMDS Data 1+ Ground TMDS Data 1- TMDS Data 0+ Ground TMDS Data 0- CLK+ TMDS Clock+ Ground CLK- TMDS Clock -... -
Page 6: J14(Ph Connector) Pin Head For Vga
DM-ADTTR-018 3.6 J14(PH Connector) pin head for VGA Pin No. Symbol Function Description DDC clock DDC data Ground Blue primary Ground (Blue) Green primary Ground (Green) Red primary Ground (Red) Horizontal synchronizing signal Field synchronizing signal Ground 3.7 J15(D-SUB-15) VGA input Pin No. -
Page 7: J12(Ph Connector) Speaker
DM-ADTTR-018 3.9 J12(PH Connector) Speaker Pin No. Symbol Function Description Amplifier left channel positive pole Amplifier left channel negative Amplifier right channel positive pole Amplifier right channel negative 3.10 J9(PH Connector) Keypad menu Pin No. Symbol Function Description Exit / Select... -
Page 8: J7(2.0Mm Double Row Needle) Lvds Interface
DM-ADTTR-018 3.13 J7(2.0mm double row needle) LVDS interface Pin No. Symbol Function Description Ground Ground OIN0- Odd field data 0- OIN0+ Odd field data 0+ OIN1- Odd field data 1- OIN1+ Odd field data 1+ OIN2- Odd field data 2-... -
Page 9: Mechanical Drawing
DM-ADTTR-018 4 Mechanical Drawing Note: 1. Relative humidity: ≤80% 2. Storage temperature: -30 ~ +80℃ 3. Operating temperature: -20 ~ +75℃ 4. Please keep the board away from static electricity 5. Do not press and bend 6. Double check connect correct before power on 7. -
Page 10: Connector Instruction
DM-ADTTR-018 5 Connector instruction ① J6(PH Connector) Backlight interface ② J7(2.0mm double row needle) LVDS ③ J9(PH Connector) Keypad menu ④ J12(PH Connector) Speaker ⑤ J3(PH2.0 Connector) Power input ⑥ J2(PJ-20 Connector) Power input ⑦ J18(2.0mm double row needle) HDMI input ⑧... -
Page 11: Electric Characteristics
DM-ADTTR-018 6 Electric Characteristics Item Symbol Typ. Unit Note Power input Operating voltage 5V/12V LVDS display panel Voltage optio Audio output frequency response 18000 Audio Output Power 2 x 10 8Ω 7 Warranty and Conditions http://www.displaymodule.com/pages/faq HYPERLINK "http://www.displaymodule.com/pages/faq" Copyright © 2020 11 / 11 www.displaymodule.com...
