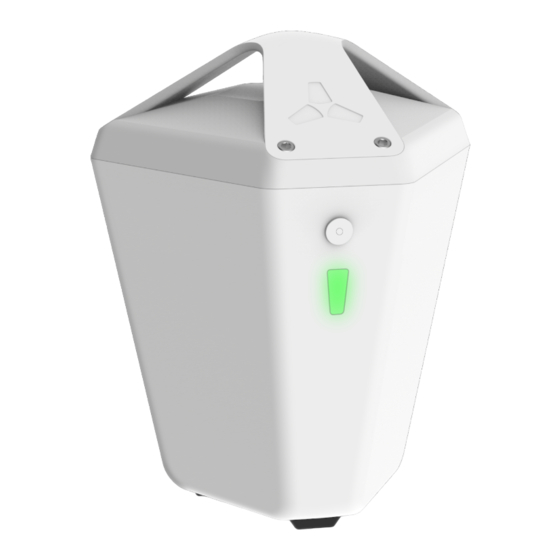

Summary of Contents for Skycatch Edge1
- Page 1 Skycatch Edge1 User Manual © 2018 Skycatch, Inc.
- Page 2 Base Station is an RTK GNSS base station for on-site RTK GPS corrections logging, structure from motion (SfM) image processing (3D reconstruction), and artificial intelligence deep learning capabilities. The Skycatch Edge1 Data Engine allows for processing high accuracy point clouds in the field, including remote areas without internet connection. ...
- Page 3 Setting up Edge1 Base Station for GPS Data Logging The Edge1 base station can be used to log GPS correction data from your drone during the flight. This data is merged with your images to create high-accuracy geotagged images during data processing. ...
- Page 4 Edge1 base station on that point and manually type in coordinates. After you have established a Network RTK and account, you are ready to set up the Edge1 base station for data logging by following these steps: ...
- Page 5 3. As the white light is flashing, press and hold the power button. The three lights in a vertical configuration below the power button will turn white. This means the Edge1 has been powered on. © 2018 Skycatch, Inc.
- Page 6 4. Choose the preferred method for data logging. You can log data through an RTK network or manual input of the base station’s position. © 2018 Skycatch, Inc.
- Page 7 Edge1 base station does not move from its position, from this point onwards. 6. When the Edge1’s LED light has turned blue, and the Position Status on the Edge1 app displays “Fixed”, you can start flying your mission. ...
- Page 8 PC4 (33 dBm) GSM 1800 Mhz PC1 (30 dBm) GSM 1900 Mhz PC1 (30 dBm) WCDMA 900 Mhz PC3 (24 dBm) WCDMA 2100 Mhz PC3 (24 dBm) © 2018 Skycatch, Inc.
