Product Installation Manual

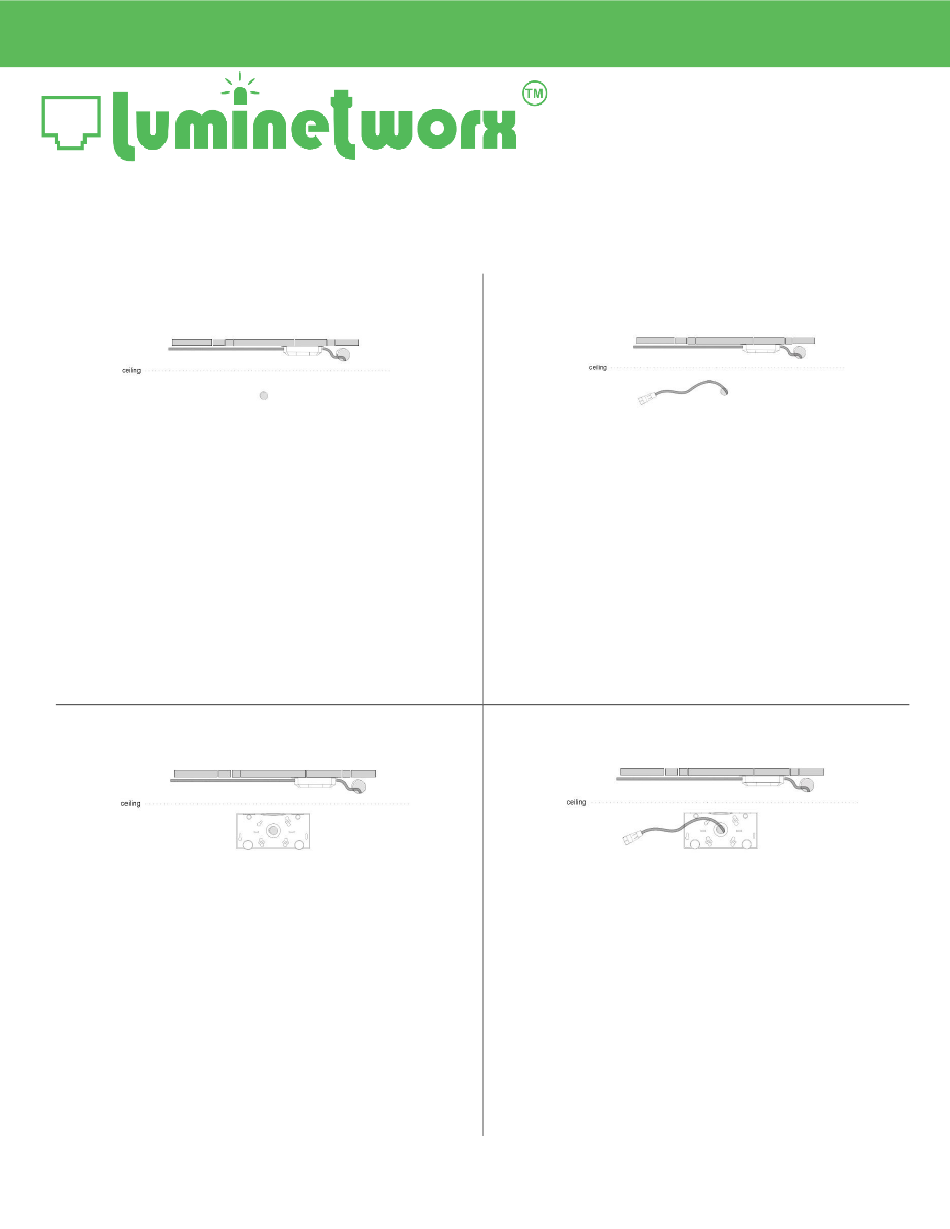

Step 1
Run your plenum rated category cable from the demarc to the approximate
location of your emergency light fixture. Affix the driver to the joist with the
appropriate screws and connect the terminated category cable to the rj45 on the
driver.
Step 3
Affix the fixture mounting plate to the wall feeding the whip through the center
hole of the mounting plate. Be sure to use the proper mounting screws.
Installation Sheet LVES-F5024CA
Step 2
Make a hole above the ceiling and behind where the fixture is to be installed.
Once both holes are in place feed your whip extension cable provided with the
light fixture through the hole from the plenum space to the wall. Connect the
whip in the plenum space to the second connector on the driver.
Step 4
With the mounting plate secured to the wall and the whip in place proceed to
the next step.
Advertisement
Table of Contents
Related Manuals for luminetworx LVES-F5024CA
Summary of Contents for luminetworx LVES-F5024CA
- Page 1 Installation Sheet LVES-F5024CA Product Installation Manual Step 1 Step 2 Run your plenum rated category cable from the demarc to the approximate Make a hole above the ceiling and behind where the fixture is to be installed. location of your emergency light fixture. Affix the driver to the joist with the...
- Page 2 Step 5 Slide 6 Connect the fixture to the whip with the provided connector. After the fixture is See slide 7 below for an example of how to wire up to 6 exit signs. Each connected to the whip attach the fixture to the wall using the previously installed fixture contains 4 RJ45 connections input and output, either connection mounting plate.
