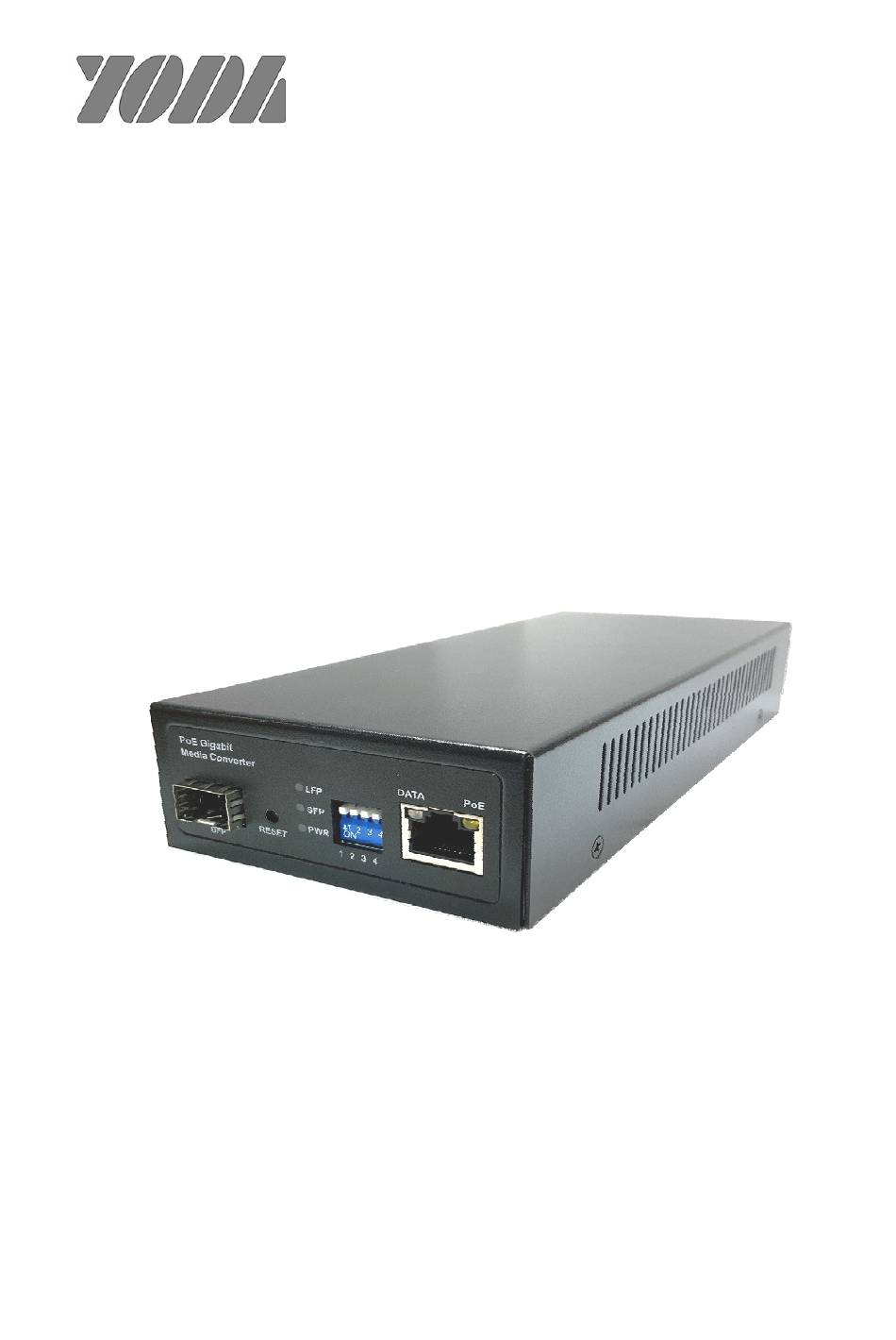

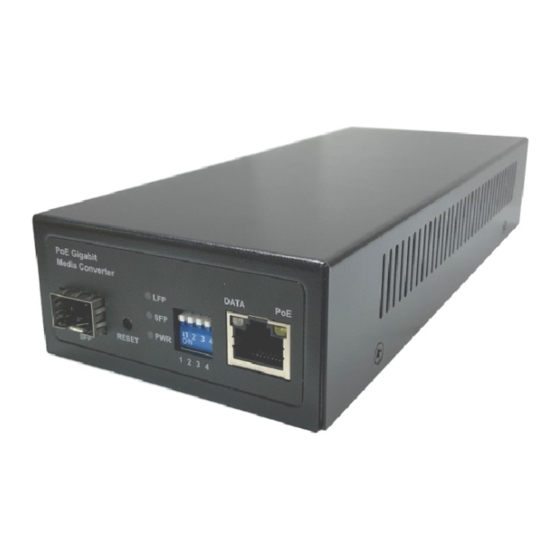

- Page 1 Fiber Gigabit Media Converter 10/100/1000Base-T to 100/1000Base-FX With IEEE802.3af/at 30W PoE Injector PF211GA...
-
Page 2: Key Features
FEF prevents loss of valuable data transmitted over invalid link. Combining the LFP and FEF troubleshooting features of PF211GA, both end devices can be notified of a loss of fiber link. PF211GA supports both switch mode and converter mode for user applications. -
Page 3: Technical Specifications
Legacy PD Compatible Minimum load sensing Fault Protection Input LFP (Link Fault Pass-through) and FEF (Far End Fault) Supports one 10/100/1000Base-T Gigabit Ethernet UTP RJ45 port and one 100/1000Base-FX Gigabit Ethernet Fiber SFP port Supports 10/100/1000Base-T auto mode on the UTP port ... -
Page 4: Network Interfaces
Enable LFP & FEF Function LED Indicators: Color Function Green Lit when PF211GA power is ON Lit Green for fiber connection at 1000Mbps, Green / Amber Lit Amber for fiber connection at 100Mbps, Blinks when SFP fiber data is present... -
Page 5: Application Scenario
Application Scenario: Example: Wall Mount Application The PF211GA can be installed and mounted on the wall as the following picture with the mounting holes on the bottom. - Page 6 Step 3: Power ON and Run F. Turn ON the AC Power. The LEDs PWR, SFP, DATA, PoE should be lit on. G. The PF211GA will provide PoE up to 30W to the IP CAM at Gigabit fiber connection. Yoda Communications, Inc.
