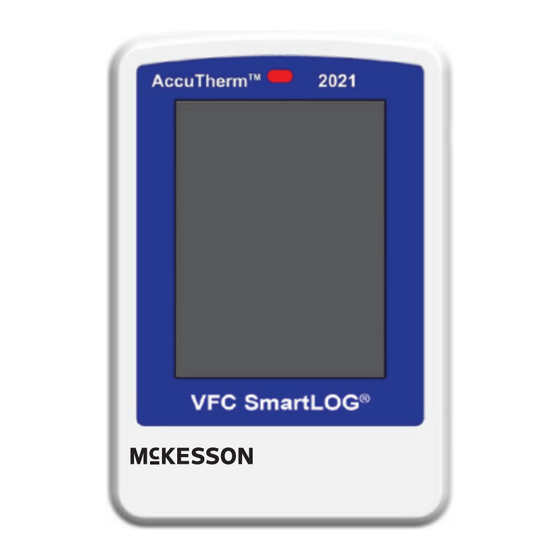

Refrigerator/Freezer Thermometer
DATA LOGGER
WIRELESS
Wireless External, -40 to 122°F (-40 to 50°C): wireless
sensor probe; Internal, -40 to 257°F (-40 to 125°C)
For use with MFR # MCKSL2021.
INSTRUCTIONS FOR USE
FEATURES:
•
Monitor 1 or 2 wireless temperature sensors simultaneously
•
Ambient room temperature and humidity displayed & recorded
•
SMS and email alerts
•
Replaceable wireless sensors
No down time for sending equipment back for calibration.
No fumbling with wires in fridge.
•
Bright color touch display for ease of use.
•
Web dashboard, use any browser on local network
No cloud, no subscription fees
•
Enterprise network login for security
•
Time automatically synchronized from internet
•
Reports in PDF format
•
No PC software needed
*Second temperature sensor optional (cat#: ACCSLBLET)
1
Advertisement
Table of Contents
Summary of Contents for McKesson MCKSL2021
- Page 1 DATA LOGGER WIRELESS Wireless External, -40 to 122°F (-40 to 50°C): wireless sensor probe; Internal, -40 to 257°F (-40 to 125°C) For use with MFR # MCKSL2021. INSTRUCTIONS FOR USE FEATURES: • Monitor 1 or 2 wireless temperature sensors simultaneously •...
-
Page 2: Main Screen
SmartLOG DDL Red Alarm LED USB Power LED Green 5v Mirco USB Port Factory Reset Button Deletes All Settings Power On Button Wall Mount Keyhole Kick Out Desk Stand Battery Compartment MAIN SCREEN DDL Tile Logger Name Ambient Room Temperature Humidity Time And Date Of Last Scan Buzzer, Wi-Fi Strength, Battery Level Icons P1 Tile... - Page 3 KIT CONSIST OF: • 1 x Digital Data Logger • 1 x Wireless Transmitter • 1 x 5V 1A Power Adapter • 1 x USB Cable • 2 x AAA (for transmitter) • 3 x AA (for DDL) • 1 x Plastic Touch Screen Stylus...
-
Page 4: Product Overview
PRODUCT OVERVIEW The McKesson refrigerator/freezer thermometer data logger (also referred to as SmartLOG in this document) is a Wi-Fi digital data logger (DDL) that monitors and records temperature and sensor battery status for up to two wireless sensors. It also logs the ambient room temperature/humidity and backup battery voltage. -
Page 5: Status Page
SMARTLOG DASHBOARD HOME PAGE Navigation Icons Logger Name, Alarm Spk, Wi-Fi, Pwr icons Tap Speaker icon to acknowledge alarm. This will mute Alarm Buzzer and send ACK alert Sensor(s) Name Temperature Gauge relative to Min/Max set points Current temperature Min/Max settings values Lowest and Highest recorded Temperature, Date and Time Sensor Battery power remaining... -
Page 6: Settings Page
SETTINGS PAGE ACCESS POP-UP Pin: 5 digit number If created during initial setup, enter Pin number, otherwise, leave blank and click Open. SETTINGS PAGE Logger Configuration Access Pin: 5 digit number (required to save) Scale: Display & Report in °C or °F. Log Interval: Select from 1 to 60 minutes. - Page 7 EMAIL / SMS MESSAGES Time Date DDL Booted! * Time Date Temperature Excursion Name : Temp 8.5C (above limit of 8.0C) Alert Time Date Temperature Notice Name : Returned to safe temp 7.5C" Messages * Time Date POWER Failure ON Battery Backup 100% remaining * sent every Time Date POWER Restored OFF Battery Backup hour until...
- Page 8 TEST MESSAGE BUTTON: Will send an email and/or SMS to recipients in contact list. Received message links will open Dashboard in a browser. Tap TEST MESSAGE button. Tap YES in Confirm pop-up window, will send a Test Email and SMS message then return to main screen. If you tap NO, the pop-up will close and you will be sent back to main screen automatically.
-
Page 9: Troubleshooting Guide
TURN OFF BUTTON: Powers off SmartLOG. Tap TURN OFF button. Tap YES in confirm pop-up window to power off. Wait for button to transition as email/SMS alerts are being sent out. Confirm pop-up window “Powering Off In 5 Seconds”. TROUBLESHOOTING GUIDE Logger not powering on Check 5v adapter, USB cable, batteries Not receiving wireless temperatures... - Page 10 General Questions? Call 1-800-777-4908 Technical Support? Call 1-973-300-9100 If you are not completely satisfied with any McKesson Brands product, you may return it for a full refund or credit within 12 months from the purchase date. McKesson Brands satisfaction guarantee is limited to products purchased directly from McKesson.
