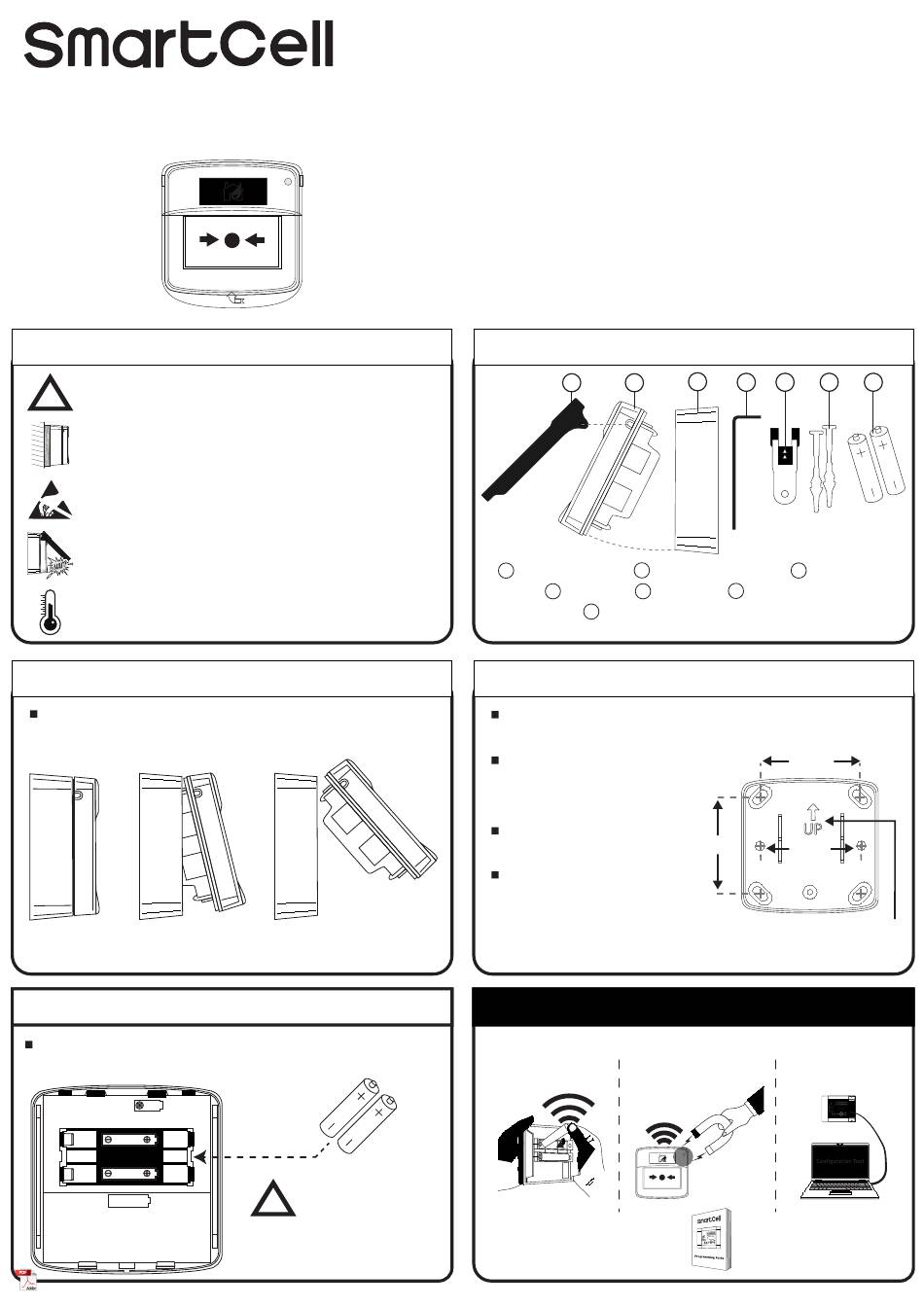

SmartCell SC-51-0100-0001-99 Installation Manual

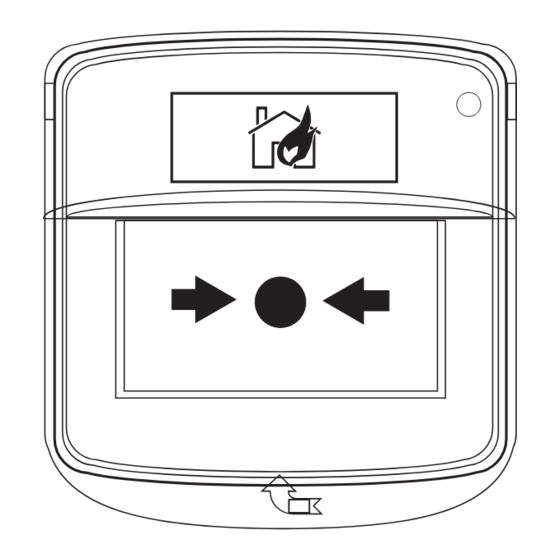

Fire Manual Call Point
Installation Guide
1 Pre installation
Installation must conform to applicable local installation codes and
!
should only be installed by a fully trained competent person.
The use of a non-metallic spacer should be considered if mounting
the device on to a metal surface.
This device contains electronics that may be susceptible to damage
from Electrostatic Discharge (ESD). Take appropriate precautions
when handling electronic boards.
Fit the breakable tag after installation and testing of the device.
To ensure correct operation, products must be used within the
specified environmental operating conditions.
3 Remove mounting plate
Carefully unclip the two sections, observing the hinged connection at the top
of the device.
5 Fit batteries
When fitting / replacing batteries, observe correct polarity, using only
specified batteries.
2x ER14505M
LITHIUM 3.6V
©2021 EMS Ltd. All rights reserved.
OBSERVE BATTERY
!
POLARITY!
Page 1 of 2
Part number Product description
SC-51-0100-0001-99 Fire Manual Call Point
2 Components
2
1
Transparent cover Fire manual call point
1 2
4 Allen key 5 Reset key
7 Batteries (Not included in some regions*).
*When batteries are not supplied, only fit specified batteries.
4 Fix mounting plate
When fixing to the wall, all four fixing positions must be used to ensure a
firm fixing.
2x alternative fixing positions
are also available for fixing to
existing electrical mounting
boxes
Observe the orientation
marking as shown.
Use suitable fasteners and
fixings.
6 Configuration
The device must now be added (programmed) to the control panel.
Method 1
Device powering Magnet application
Refer to the programming manual
for full programming details.
3 4 5 6
3 Mounting plate
6 Breakable tags
60 mm
60 mm
60 mm
(Alternative
fixing positions)
ORIENTATION!
Method 2 Method 3
Via computer
SmartCell panel = TSD155
SmartCell WZM = MK067
TSD087-0001-99 (Issue 3) 25/08/2021 AJM
7
