Summary of Contents for Slee ERGOTEC
- Page 1 O P E R A T I N G M A N U A L E R G O T E C WORKTABLE D ES I GN & M A N UFACT UR I N G M A D E I N GE R M A NY...
- Page 2 2/16 Manual_Ergotec_2022-10-001.00_EN.docx...
-
Page 3: Table Of Contents
Content Purpose of the device Symbols Safety notes Parts Specifications Installation and initial commissioning Installation First use Use of the Ergotec workplaces Errors Cleaning and maintenance Cleaning Recommended maintenance and service schedule Service Warranty DisposaL Manual_Ergotec_2022-10-001.00_EN.docx 3/16... -
Page 4: Purpose Of The Device
Purpose of the device Workplaces must increasingly meet good ergonomics. The Slee ergonomic worktables comply with good ergo- nomics using electrically height-adjustable parts. The height adjustment can be stored electronically and can eas- ily be recalled, allowing the user to easily adjust the desired working height. -
Page 5: Parts

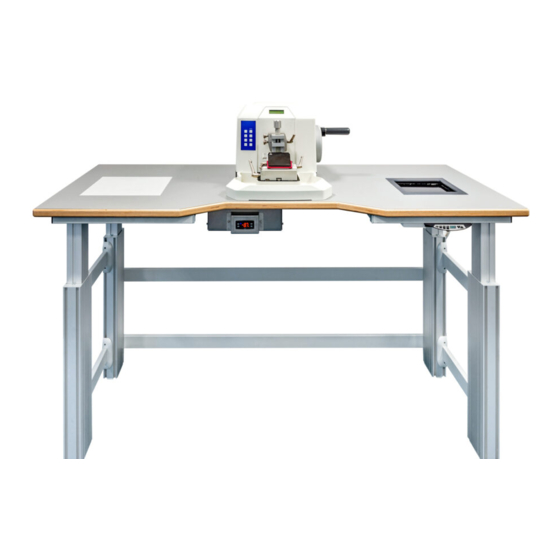

4 Parts Ergotec Basic table (optional ergonomic cutout) • (optional) Cooling plate Water bath (optional) Manual_Ergotec_2022-10-001.00_EN.docx 5/16... -
Page 6: Specifications
5 Specifications General Nominal supply voltage 230 V AC +/- 10 % Nominal frequency 50/ 60 Hz Power consumption 120 VA Protection class Fuses 1 x T 1 A Mains cable 1 x 0,75 mm / 10 A (C13 / C14) Pollution degree (1) Installation category for over voltage (1) according to IEC 1010, EN 61010... -
Page 7: Installation And Initial Commissioning
6 Installation and initial commissioning Installation The device must be placed on a flat, vibration-free surface. Connect the mains cable. First use Initialize the control box by pressing and holding simultaneously. The columns move down- wards until they have reached the mechanical stop and then switch off. Now release the buttons. The control box beeps three times to indicate that the initialization has been completed. -
Page 8: Use Of The Ergotec Workplaces
Use of the Ergotec workplaces Turn the table on. Set the table height manually: Press , to raise the table. Press , to move the table down. The columns move as long as the button is pressed. Save table heights: Set the table with the buttons. - Page 9 Use of the cooling plate: Turn the cooling plate on. The display will now flash for a few seconds and then show the current room temperature. The cooling plate will now be cooled down to the set temperature. Setting of the desired temperature: To set the desired temperature press the SET button two times in quick succession.
- Page 10 Use of the water bath: Turn the water bath on. The display will flash for a few seconds and then show the current room temperature. The water bath will now heat up to the set temperature. Setting the desired temperature: To set the desired temperature press the SET button two times in quick succession.
-
Page 11: Errors
8 Errors Error codes in the display of the height-adjustable table: Code Description Solution SC-Reset OK THD-Display overflow Forced reset The control box must be reset. Keep the “up” and “down” keys pressed simultaneously until the control box gives an acoustic signal. The table will move to the lowest end position. - Page 12 Overheated The table has been in use longer than permit- ted. Wait a few minutes. Engine(s) overheated Afterwards the system is operational again. 12/16 Manual_Ergotec_2022-10-001.00_EN.docx...
- Page 13 Error code concerning the cooling plate and water bath: If an “E” code appears in the display, the display or the sensor are defective. Contact your supplier. Other possible problems with the cooling plate: The cooling plate does not become The condenser can be Make it dust free.
-
Page 14: Cleaning And Maintenance
9 Cleaning and maintenance Cleaning The table top should be cleaned regularly with lukewarm water. The table legs must be cleaned of dust and dirt every six months. This can be done with a dust cloth. Wear protective clothing and disposable gloves following GLP. Do not use chemicals to clean the device. -
Page 15: Service
If it is necessary to return the device, it must be cleaned and disinfected before delivery. It must be returned in its original packing. If the device or parts thereof are sent back in a dirty or non-disinfected condition, SLEE medical GmbH reserves the right to return the parts to the debit of the customer. - Page 16 SLEE medical GmbH • Am Neuberg 14 55268 Nieder-Olm • Germany www.slee.de T: +49 (0) 6136 76997-0 E: mail@slee.de www.slee.de YouTube LinkedIn Instagram INS1300GB ∙ Manual_Ergotec_2022-10-001.00_EN...
