Summary of Contents for GridConnect GC-WIFI300-SMT

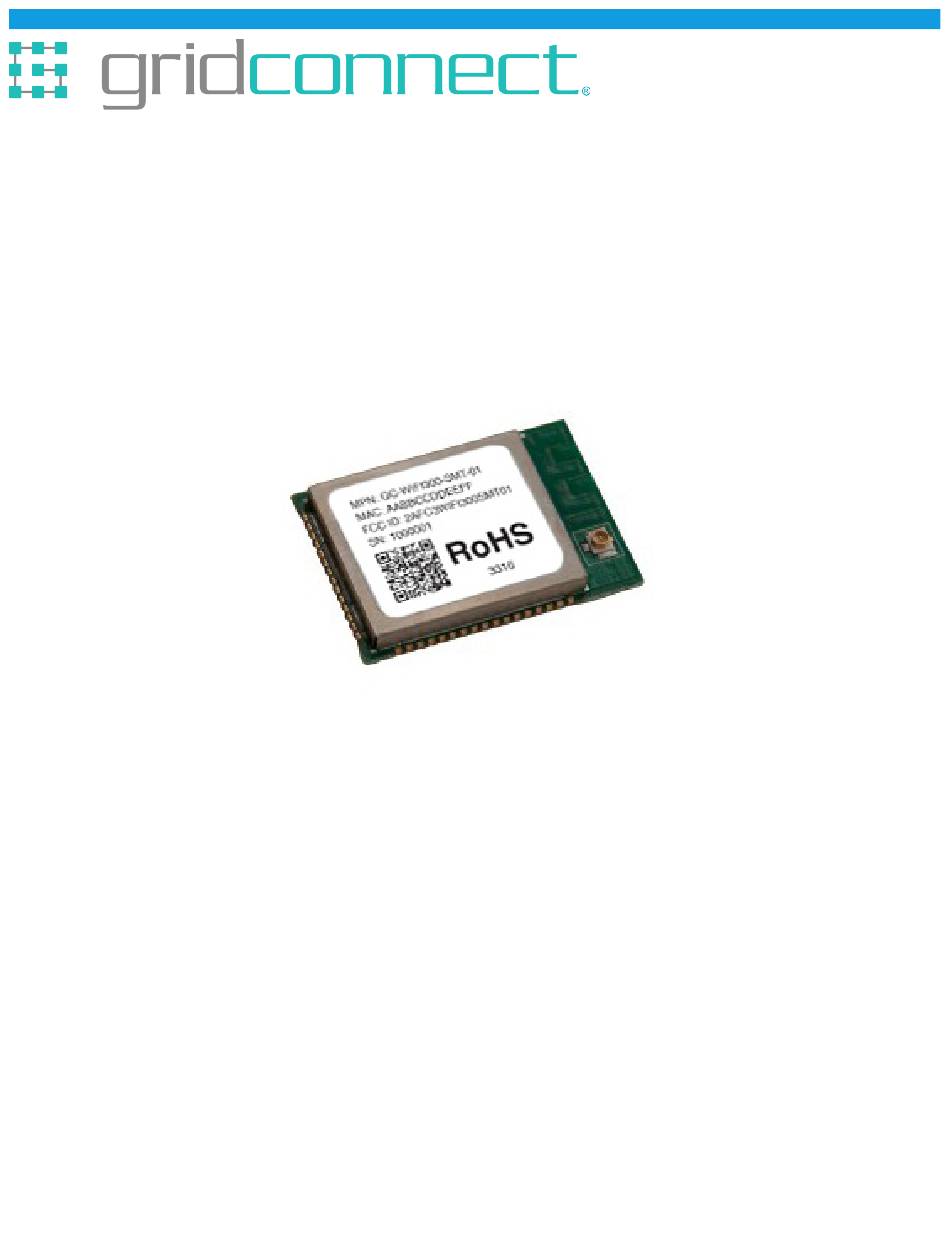

- Page 1 GC-WIFI300-SMT Low Power Wi-Fi Module User Manual V 1.0 Grid Connect Inc.
-
Page 2: Table Of Contents
GC-WIFI300-SMT Low Power Wi-Fi Module User Manual TABLE OF CONTENTS: LIST OF FIGURES LIST OF TABLES HISTORY PRODUCT OVERVIEW General Description Device Features Device Paremeters Key Application Hardware Introduction Pins Definition Electrical Characteristics Mechanical Size On-board Chip Antenna Order Information... -
Page 3: List Of Figures
GC-WIFI300-SMT Low Power Wi-Fi Module User Manual LIST OF FIGURES: Figure 1. GC-WIFI300-SMT Pins Map Figure 2. GC-WIFI300-SMT Mechanical Dimension Figure 3. GC-WIFI300-SMT PCB Symbol Size Figure 4. Suggested Module Placement Region Figure 5. GC-WIFI300-SMT Order Information Figure 6. Reflow Soldering Profile Figure 7. -
Page 4: Product Overview
Marvell 88MW300, which provides a wireless interface to any device with a Serial/SPI/ GPIO interface for data transfer. The GC-WIFI300-SMT-01 is a fully self-contained Wi-Fi solution for a variety of applications. Marvell Software SDK provides most of the software functions you will need to build your complete application all on this module. -
Page 5: Device Paremeters
GC-WIFI300-SMT Low Power Wi-Fi Module User Manual Device Parameters Class Item Parameters Certification FCC/CE Wireless Standard 802.11 b/g/n Frequency Range 2.412GHz-2.484GHz 802.11b: +16 +/-2dBm (@11Mbps) 802.11g: +14 +/-2dBm (@54Mbps) Wireless Transmit Power 802.11n: +13 +/-2dBm (@HT20, MCS7) Paramaters 802.11n: +12 +/-2dBm (@HT40, MCS7) 802.11b: -93 dBm (@11Mbps ,CCK) -
Page 6: Hardware Introduction
GC-WIFI300-SMT Low Power Wi-Fi Module User Manual Hardware Introduction Pins Definition GC-WIFI300-SMT Figure 1. GC-WIFI300-SMT Pins Map Description Net Name Signal Type Comments Ground Power 1,17,31,48 JTAG Function JTAG_TCK I, PU JTAG/Debug functional pin, N/C if not is use JTAG Function... - Page 7 GC-WIFI300-SMT Low Power Wi-Fi Module User Manual GPIO BOOT0 GPIO, N/C if not is use. A/D Input 1 ADC1 GPIO11, N/C if not is use. A/D Input 2 ADC2 GPIO12, N/C if not is use. GPIO RTC_XIN GPIO13, N/C if not is use.
-
Page 8: Electrical Characteristics
GC-WIFI300-SMT Low Power Wi-Fi Module User Manual Electrical Characteristics Absolute Maximum Ratings: Parameter Condition Min. Typ. Max. Unit ˚C Storage temperature range IPC/JEDEC J-STD-020 ˚C Maximum soldering temperature Supply voltage Voltage on any I/O pin ESD (Human Body Model HBM) TAMB=25˚C... -
Page 9: On-Board Chip Antenna
10mm; Figure 4. Suggested Module Placement Grid Connect recommends that the GC-WIFI300-SMT module be located as suggested in Figure 4 to reduce interference with the antenna and wireless signal. Please contact Grid Connect to assist with your initial development. -
Page 10: Order Information
GC-WIFI300-SMT Low Power Wi-Fi Module User Manual Ordering Information The GC-WIFI300-SMT series module provides several ordering options: GC-WIFI300-SMT-01 Revision Product Number, WIFI300-SMT Vendor Information: GC Figure 5. GC-WIFI300-SMT Ordering Information PACKAGE INFORMATION Recommended Reflow Profile Figure 6. Reflow Soldering Profile... -
Page 11: Device Handling Instruction (Module Ic Smt Preparation)
GC-WIFI300-SMT Low Power Wi-Fi Module User Manual Device Handling Instructions (Module IC SMT Preparation) 1. Shelf life in sealed bag: 12 months, at <30℃ and <60% relative humidity (RH) 2. After bag is opened, devices that will be re-baked after 168 hours. -
Page 12: Appendix A: 88Mw300 Pin Maping
GC-WIFI300-SMT Low Power Wi-Fi Module User Manual APPENDIX A: 88MW300 PIN MAPING GC-WIFI300-SMT 88MW300 GC-WIFI300-SMT 88MW300 Net Name Pin Name Net Name Pin Name IIC0_SCL GPIO_5 JTAG_TCK GPIO_7 IIC0_SDA GPIO_4 JTAG_TDO GPIO_6 SSP1_RXD GPIO_45 JTAG_TDI GPIO_9 SSP1_CLK GPIO_42 JTAG_TMS GPIO_8...
