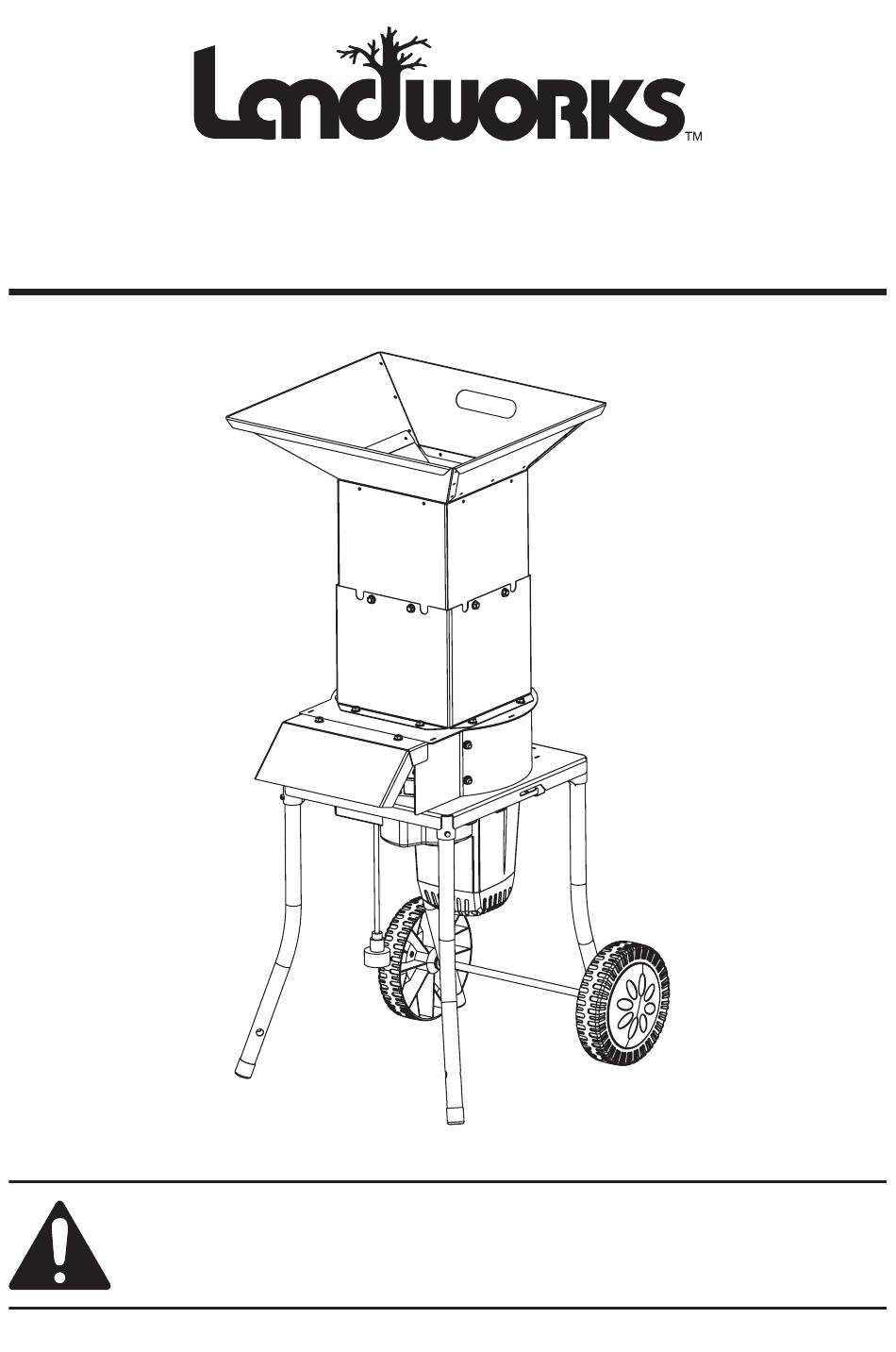

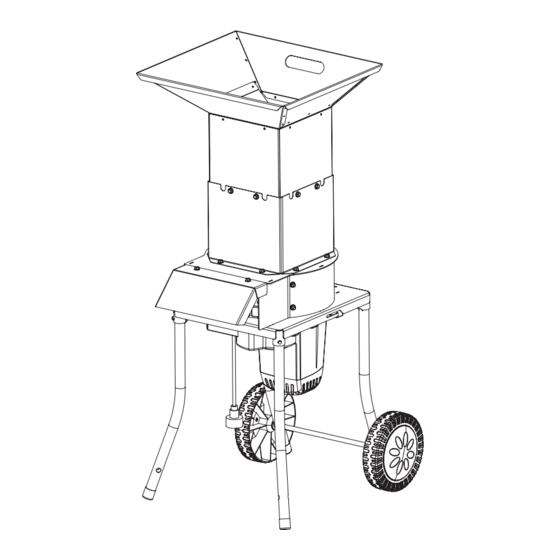

Electric Shredder & Mulcher
Operator's Manual
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
REV 06/18/20
Advertisement
Table of Contents
Summary of Contents for Landworks GUO049
- Page 1 Electric Shredder & Mulcher Operator's Manual WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS For your own safety, always follow these basic precautions when using this appliance. 1. Read the user Manual carefully for operating instructions. Read all instruc- tions in this manual before use. 2. DO NOT use this product for anything other than its intended purpose. 3. -
Page 3: Technical Details
TECHNICAL DETAILS Item No. GUO049 Electrical Rating 120VAC / 60Hz / 15A Wheel 8" Blade 11" (280mm) Blade Speed 4100RPM PARTS LIST AND DIAGRAM Upper Feeding Port Lower Feeding Port Discharge Guard Body Motor Assembly Support Stand Axle 8" Wheel... -
Page 4: Important Safety Instructions
WARNING SYMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Indicates a hazardous situation which, if not avoided, will result in death or serious injury. - Page 5 TABLE A – MINIMUM WIRE GAUGE FOR XTENSION CORDS (120 VOLT) EXTENSION CORD LENGTH Ampere Rating (at full load) 100' 150' 0 – 6 6 – 10 10 – 12 12 – 16 Not recommended Connecting Cords To reduce the risk of the cords pulling apart during operation, do one of the following: 1.
- Page 6 8. Do not put your hands into the hopper opening while the unit is running. Use the paddle to push objects into the hopper. 9. Before feeding material into the shredder, remove any metal, rocks, bottles, cans or other foreign objects that may damage blades. 10.
-
Page 7: Package Includes
PACKAGE INCLUDES Upper Feeding Port Lower Feeding Port Body Support Stand 1 pc 1 pc 1 pc 4 pcs Wheel #27 Wheel #37 Axle Discharge Guard 1 pc 1 pc 2 pcs 1 pc Flat Washer Flange Bolt Flange Nut (M6*16mm) (24*2.5mm) (2.5*25mm) -
Page 8: Installation Steps
INSTALLATION STEPS 2pcs 2pcs 4pcs 2pcs... - Page 9 8pcs 8pcs 8 pcs 2pcs...
-
Page 10: Operation
OPERATION This leaf shredder is only used for shredding leaves, grass clippings, etc. It is not suitable for shredding branches or long fiber plants which above 0.5". 1. Before operating the Shredder, put on ANSI-approved safety goggles and other safety gear. Safety goggles and other safety gear are sold separately. -
Page 11: Troubleshooting
TROUBLE SHOOTING 1. Normal and regular maintenance will extend the service life of the equipment. 2. The following troubleshooting guide lists the most common problems, causes and solutions. PROBLEM POSSIBLE CAUSE SOLUTIONS Engine won't start. 1. The cutting blade is stuck. 1. -
Page 12: Parts Breakdown
PARTS BREAKDOWN... - Page 13 Part No. Description Q’ty Part No. Description Q’ty Pressing Plate Body Rubber Curtain Motor Handle Support Stand Upper Feeding Port Motor Cover Hexagon Flange Bolts M6*16 Switch Flange Lock Nut M6 Axle Lower Feeding Port Hexagon Head Bolt M8*80 8" Wheel Large washer 8 Flat Washer 12 Pressing Plate...
- Page 16 Great Circle USA Support Line: 1-866-493-0524 help@greatcircleus.com www.greatcircleus.com Size: 145x210mm 157克铜版纸 REV 06/18/20 3.02.02.1059...
