HARMSCO

Hurricane

Swing Bolt Water Filters

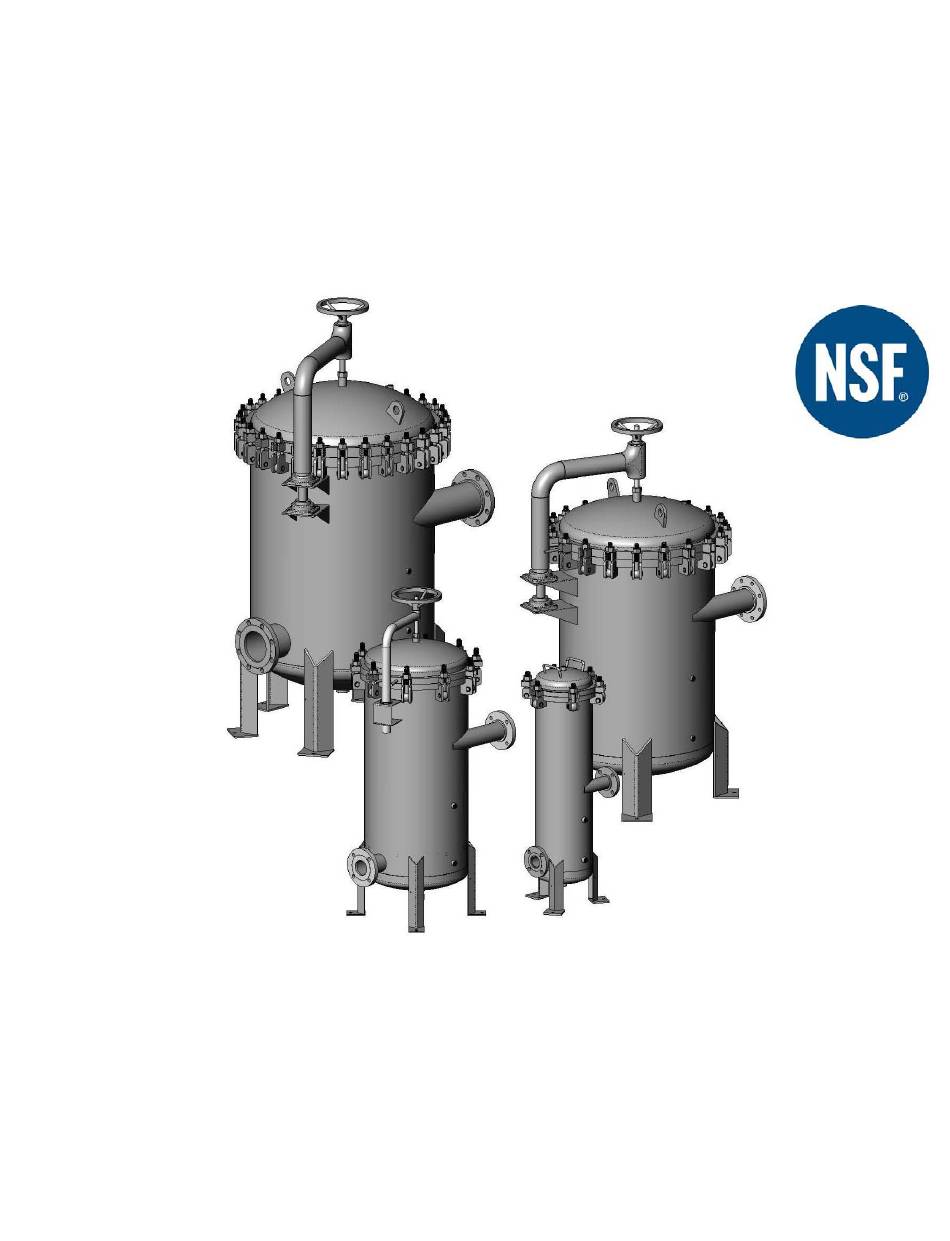

Models: HUR 1X170FL-XP, HUR 3X170FL-XP

HUR 5X170FL-XP, & HUR 8X170FL-XP

INSTALLATION AND OPERATION MANUAL

HUR 8X170FL-XP

HUR 5X170FL-XP

HUR 1X170FL-XP

HUR 3X170FL-XP

Harmsco

Filtration Products

With Patented Up-Flow and Tangential/Rotational Flow

Filtration Technology

www.harmsco.com

(561) 848-9628

Inc.

1243-XP, MANUAL - HUR FL

Revised - 2/14

Need help?

Do you have a question about the Hurricane HUR 1X170FL-XP and is the answer not in the manual?

Questions and answers

Summary of Contents for HARMSCO Hurricane HUR 1X170FL-XP

Page 1 INSTALLATION AND OPERATION MANUAL HUR 8X170FL-XP HUR 5X170FL-XP HUR 1X170FL-XP HUR 3X170FL-XP ® Harmsco Filtration Products With Patented Up-Flow and Tangential/Rotational Flow Filtration Technology www.harmsco.com (561) 848-9628 ® Copyright Harmsco Inc. All rights reserved. 1243-XP, MANUAL - HUR FL Revised - 2/14...
Page 2 3X170FL-XP, HUR5X170FL-XP & HUR 8X170FL-XP are equipped with pipe flanges on both the inlet and the outlet, & cartridge lifting handle(s) (part # 362-L). ® All models are NSF Certified per Standard 61 when used with Genuine Harmsco ® Hurricane HC/170 cartridges.
Page 3 This information is subject to change without notification. Contact ® ® Harmsco Filtration Products for the latest and most up to date specifications. Harmsco Filtration Products does not assume any liability for the accuracy and completeness of the data in this publication. ®...
Page 4 Hurricane HC/170 filter cartridges available include: Activated Carbon, High Temperature, SureSafe Poly-Mesh, Poly-Pleat & more. ® ® Contact a Harmsco sales representative for Harmsco ® Hurricane HC/170 filter cartridge specifications. 2. Housing O-ring Seal: Model # Part # EPDM (std)
Page 5 Hurricane Swing Bolt Water Filters INSTALLATION/SET-UP ® ® The following instructions & diagrams show the Harmsco Hurricane Swing Bolt Water Filter housing with typical plumbing hook-up requirements. All steps of the installation are to be performed by qualified personnel. 1. Always adhere to state and local plumbing codes and requirements for design and installation.
Page 6 - HC/170 cartridge filters are available in many micron ratings and styles. - Activated carbon and several high temperature cartridges are also available. ® ® - The use of cartridges other than Genuine Harmsco Hurricane HC/170 filter cartridges will void certifications by NSF International.
Page 12 Tank Wall. Loosen Tighten Swing Bolt Swing Bolt, Washer Nut & Washer Disengaged from Lid Lid Cleat Tang of Lid Cleat Tank Wall ® Copyright Harmsco Inc. All rights reserved. Page 12 of 25 1243-XP, MANUAL - HUR FL...
Page 13 Note: The Lid must be raised sufficiently to clear the Cartridge Lifting Handle prior to removal. Handle on Lid, Qty 2 Cartridge Lifting Handle Part #362-L Model HUR 1X170FL-XP ® Copyright Harmsco Inc. All rights reserved. Page 13 of 25 1243-XP, MANUAL - HUR FL...
Page 14 Lid Lifting Wheel To Raise Lower Davit Assembly Davit Pivot Axis Assembly Housing O-ring Lid Closed Model HUR 3X170FL-XP Lid Open Model HUR 3X170FL-XP ® Copyright Harmsco Inc. All rights reserved. Page 14 of 25 1243-XP, MANUAL - HUR FL...
Page 15 HARMSCO Hurricane 170 Cartridge Cartridge Lifting Handle Part #362-L Seal Top End Cap ® HARMSCO ® Hurricane 170 Cartridge Exploded View Partial Sectional View ® Copyright Harmsco Inc. All rights reserved. Page 15 of 25 1243-XP, MANUAL - HUR FL...
Page 16 Lid for servic- ing. DO NOT USE The Lid/Davit Assy to raise the Lid while swing bolts are engaged. Model HUR 3X170FL-XP ® Copyright Harmsco Inc. All rights reserved. Page 16 of 25 1243-XP, MANUAL - HUR FL...
Page 17 Housing. Do not allow tilting or cocking of Lid on the O-ring. Note: The Lid/Davit Assembly is NOT to be carrying any load from the Lid at this time. ® Copyright Harmsco Inc. All rights reserved. Page 17 of 25...
Page 18 15. Flush unit at recommended flow rate for 10 minutes prior to use. Inspect closure for any leaks. If a leak is observed, Isolate and Remove Pressure in Housing, then repeat steps 1 through 5 and 8 through 15. ® The Harmsco Swing Bolt Water Filter is now operational. ® Copyright Harmsco Inc.
Page 23 Generally, it is not possible to clean filter cartridges when filtering petroleum base liquids, cyst reduction applications, toxic substances, and 1 micron or smaller rating. ® Copyright Harmsco Inc. All rights reserved. Page 23 of 25 1243-XP, MANUAL - HUR FL...
Page 24 NO. 2,261,817; FRANCE NO. 7,246,864; EUROPEAN NO. 0,191,844, Other patents pend- ing. ® Harmsco Filtration Products With Patented Up-Flow Filtration Technology www.harmsco.com (561) 848-9628 ® Copyright Harmsco Inc. All rights reserved. Page 24 of 25 1243-XP, MANUAL - HUR FL...
Page 25 For this reason, we do not assume any liability for the accuracy or completeness of the data in this publication. End users should perform their own tests to determine suitability for each application. ® Copyright Harmsco Inc. All rights reserved.
