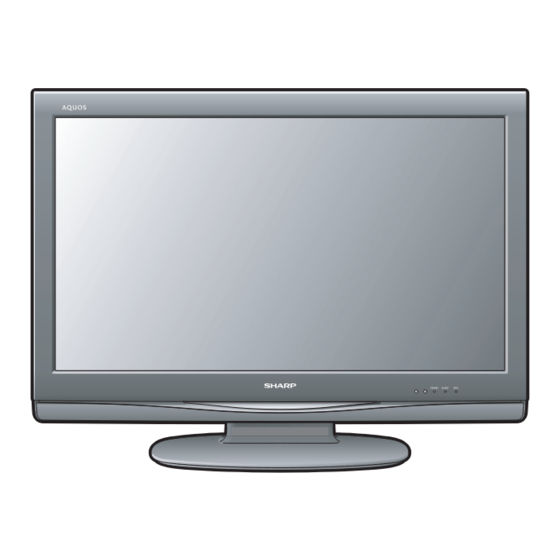

Sharp LC-32R24B Service Manual

Lcd colour television
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig-
inal condition and only parts identical to those specified should be used.
CHAPTER 1. OPERATION MANUAL
[1]
SPECIFICATIONS ........................................ 1-1
[2]
OPERATION MANUAL .......................... . ....... 1-2
[3]
DIMENSIONS ............................................... 1-7
[1]
REMOVING OF MAJOR PARTS ........... . ....... 2-1
CHAPTER 3. ADJUSTMENT
[1]
ADJUSTMENT PROCEDURE ............... . ....... 3-1
[1]
TROUBLESHOOTING TABLE............... . ....... 4-1
Parts marked with "
" are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.
SERVICE MANUAL
LCD COLOR TELEVISION
MODEL
CONTENTS
[1]
MAJOR IC INFORMATIONS .........................5-1
[1]
OVERALL WIRING DIAGRAM ......................6-1
[2]
SYSTEM BLOCK DIAGRAM .........................6-2
[1]
MAIN Unit ......................................................7-1
[2]
KEY Unit ........................................................7-5
[3]
R/C, LED Unit ................................................7-6
[1]
DESCRIPTION OF SCHEMATIC DIA-
GRAM............................................................8-1
[2]
SCHEMATIC DIAGRAM ................................8-2
No. S98P4LC32R24B
LC-32R24B
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
LC-32R24B
