Fresco Allure Connect-12 Instructions

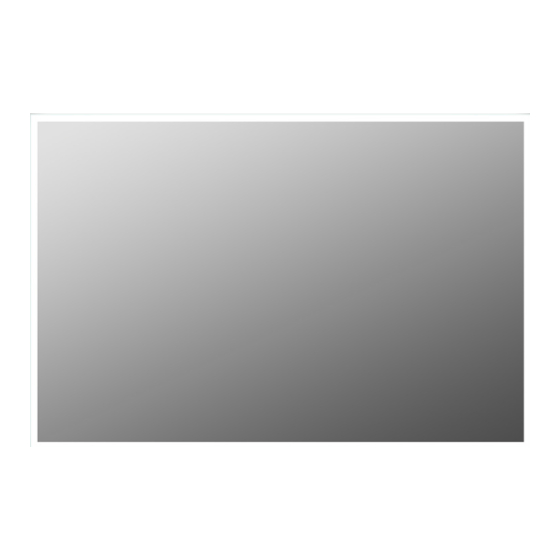

Allure Connect-12 Mirror Instructions

Features -

Bluetooth Speakers

LED Light Frame

Infra Red Dimmer Switch

De Mist Function

Shaver Socket

Size -

Allure Connect-12 (S429)

1200 x 800mm wide Landscape

All Allure Connect Mirrors are

CE approved & IP44 rated and

are suitable for installation in a

bathroom within "Zone 2" or the

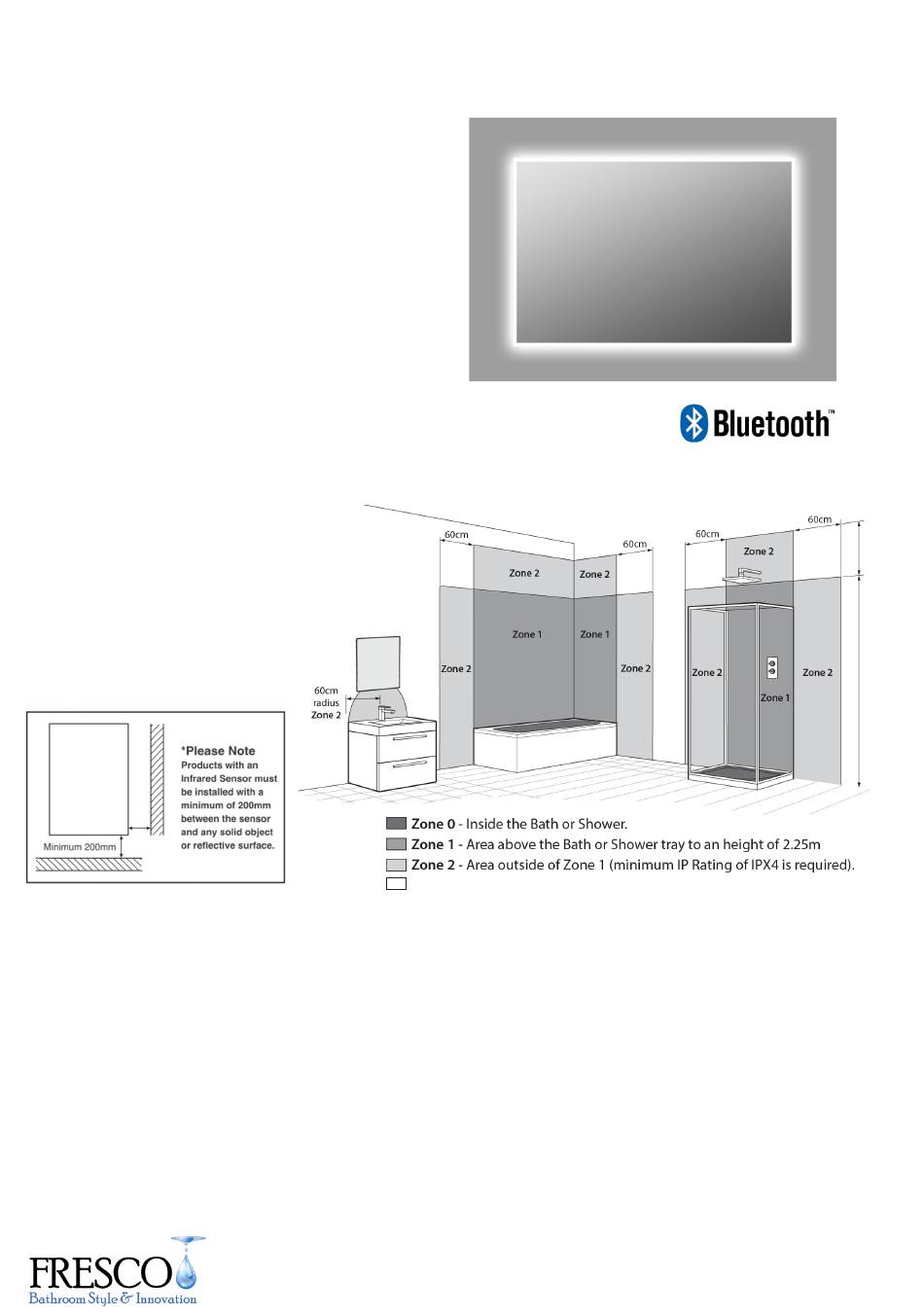

"Outside Zone". See diagram -

Safety & Care

Wear suitable eye protection when drilling. Take care when using power tools near water - the use of a RCD

(Residual Current Device) is advised. Beware of hidden cables or pipes when drilling. It is recommended that a

piece of masking tape is applied to the wall before marking out the fixing holes to help prevent the drill slipping

when drilling the fixing holes.

Allure Mirrors are manufactured in 5mm glass, do not strike glass surfaces with hard or sharp items. Do not place

very hot or very cold items against the glass. Do not cover the glass when the mirror is in use.

Ensure that the wall surface is of suitable strength to hold the weight of the mirror.

Outside Zone

Outside Zone - Area outside of Zone 2

60cm

2.25m

Table of Contents

Do you have a question about the Allure Connect-12 and is the answer not in the manual?

Page 1 Allure Connect-12 Mirror Instructions Features - Bluetooth Speakers LED Light Frame Infra Red Dimmer Switch De Mist Function Shaver Socket Size - Allure Connect-12 (S429) 1200 x 800mm wide Landscape Installation Areas 60cm Outside Zone All Allure Connect Mirrors are CE approved &...
Page 2 Installation All mirrors should be installed by a qualified electrician The mirrors are hung on the wall using a z-profile with the additin of 2 keyholes cut in the aluminium frame for secure fixing mirror to the wall. The measurements for these are given in the diagrams below - Determine the position and height at which you want to install the mirror.
