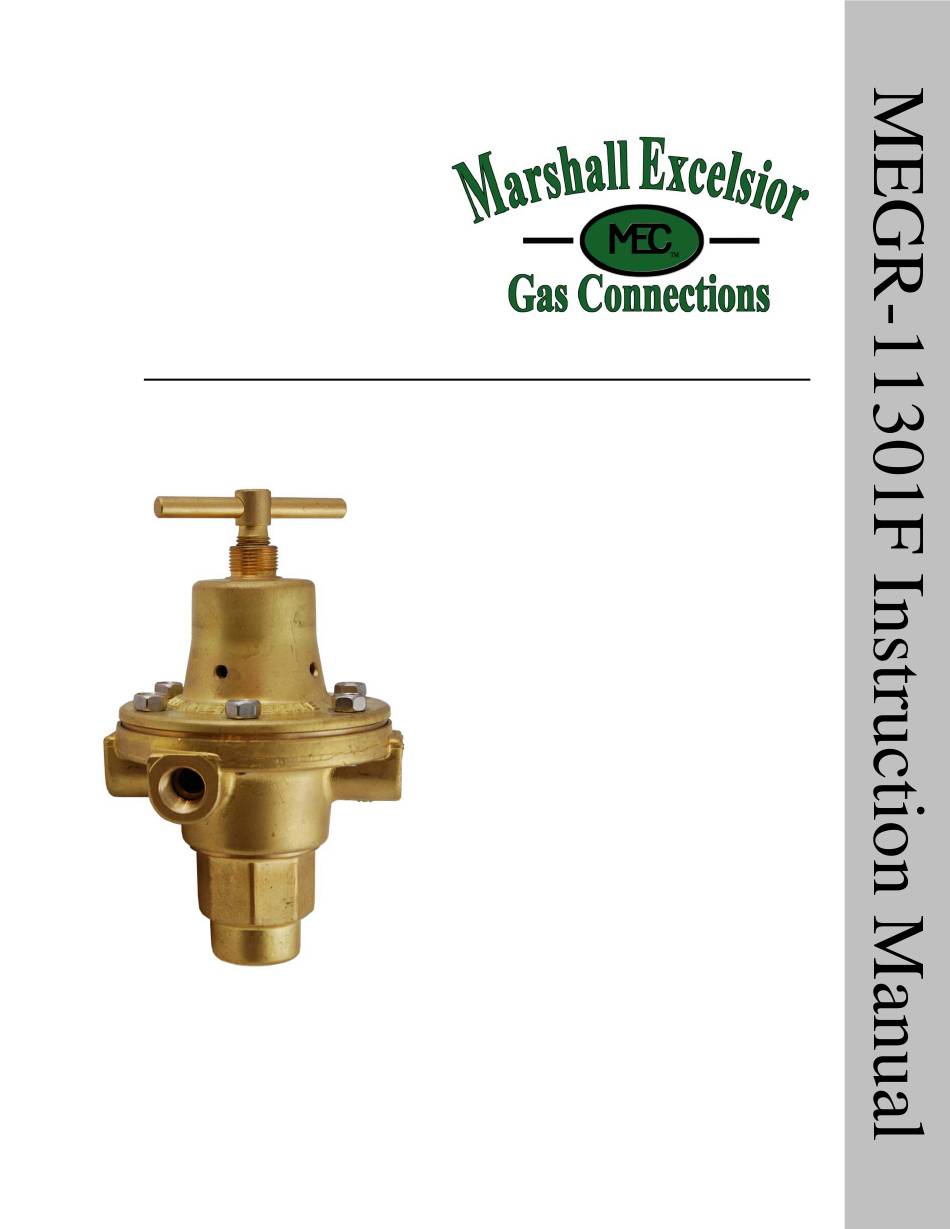

Marshall Excelsior MEGR-11301F Instruction Manual

High pressure regulator

MEGR-11301F HIGH PRESSURE REGULATOR

Instruction Manual-

Look Inside For:

Parts Ordering

Parts List

Marshall Excelsior Company

Marshall, MI 49068

269-789-6700

FAX 269-781-8340

www.marshallexcelsior.com

The contents of this publication are for informational purposes only. While every effort has been made to ensure accuracy, these

contents are not to be construed as warranties or guarantees, expressed or implied, regarding the products or services described herein or

for their use or applicability. Marshall Excelsior Co. reserves the right to modify or improve the designs or specifications of such

products at any time without notice. The MEC™ logo is the trademark of Marshall Excelsior Co.

Form #907 Rev A

Table of Contents

Need help?

Do you have a question about the MEGR-11301F and is the answer not in the manual?

Page 1 Marshall Excelsior Co. reserves the right to modify or improve the designs or specifications of such products at any time without notice.

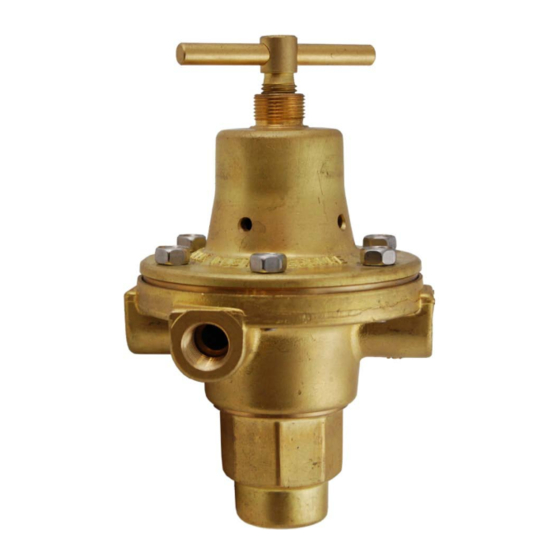

Page 2 The MEGR-11301F is a direct acting, self-operated, brass, high-pressure gas regulator designed for inlet pressures up to 5500 psig (379 bar). The MEGR-11301F provides output pressures up to 500 psig (35 bar) in four separate ranges. This is ideal for reducing large inlet pressures to the much lower supply pressures required for precision regulators. The rugged design of the multi-purpose MEGR-11301F makes it especially useful in Propane and Natural Gas applications.
Page 3 Regulators should be inspected in accordance with the requirements of local, state, and federal rules and regulations (NFPA 54 & 58). Regulator parts showing wear should be replaced as necessary. The procedure below describes how to disassemble the MEGR-11301F for parts inspection. Assembly is the reverse of this procedure. 1. Remove the tamperproof cover (item 3), if...
