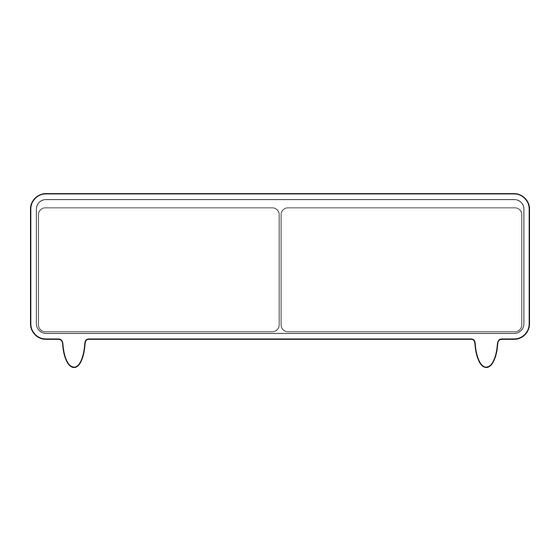

REFRIGERATED COFFEE TABLE WITH
BT SPEAKER & WIRELESS CHARGING
User Manual
Model CT51
READ UNPACKING INSTRUCTIONS CAREFULLY. YOU MUST LEAVE THE SOUND FRIDGE
SITTING TOPSIDE UP FOR A MINIMUM OF 2 HOURS PRIOR TO PLUGGING IN AND TURINING
IT ON. DO NOT PLACE THE SOUND FRIDGE UPSIDE DOWN, ON EITHER END OR ANY SIDES.
THOROUGHLY READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO FIRST USE.
FAILURE TO DO SO MAY RESULT IN DAMAGE TO THE UNIT, PERSONAL INJURY
AND/OR PROPERTY DAMAGE
.
Advertisement
Table of Contents
Related Manuals for SOUND FRIDGE CT51-FRIDGE
Summary of Contents for SOUND FRIDGE CT51-FRIDGE
- Page 1 SITTING TOPSIDE UP FOR A MINIMUM OF 2 HOURS PRIOR TO PLUGGING IN AND TURINING IT ON. DO NOT PLACE THE SOUND FRIDGE UPSIDE DOWN, ON EITHER END OR ANY SIDES. THOROUGHLY READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO FIRST USE.
- Page 2 WARNING: Keep ven�la�on openings, in the appliance enclosure or in the If the power cable is damaged, it must be replaced by • • built-in structure, clear of obstruc�on. the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.” WARNING: Do not use mechanical devices or other means to accelerate the •...
-
Page 3: Specifications
TABLE OF CONTENTS SPECIFICATIONS 160kWh/year 53.5" x 30.5" x 20" Consump�on Packing Size • Unpacking the Sound Fridge Noise Level 36dB Temp Control Electric • Safety Precau�ons & Warnings Voltage 110V-120V/60HZ Cooling Type Compressor Net Weight 135 lbs Refrigerant/Wt R600a/25g •... -
Page 4: Preparation For Use - Unpacking
PREPARATION FOR USE – UNPACKING 1. Remove all packaging materials. 4. Place table where it will be hooked up. WARNING WARNING Remove from foam base. Do not use while on • Place table so that there is more than 16-inches on the front foam base. -
Page 5: Grounding Warning
STORAGE WARNINGS • Before cleaning, repairing or replacing any parts, • Sound Fridge should not be used to store blood or other unplug the Sound Fridge to avoid electric shock. biological products. • If the power cable or plug has any damage, do not •... - Page 6 • Sound Fridge should be placed in a well ven�lated area, with at least 16 inches around all sides. • Do not place the Sound Fridge in areas that are damp or where the unit may encounter water.
- Page 7 33 feet. It can easily connect to cell phones, • Do not store foods that require colder environments. computers, laptops or your TV. • Do not put hot food into the Sound Fridge, as it will increase the temperature inside the unit, affec�ng items. ATMOSPHERE LIGHT Built in atmosphere ligh�ng provides rich color and...
- Page 8 Tempered Glass Top Mood Ligh�ng Tray Wireless Charger Par��on Control Panel Le� Drawer Tray USB – Type A (2) & Type C (1) Right Drawer 110V Sockets (2) Shelf Bluetooth Speaker Power Supply Base Power Overload Protec�on Feet...
- Page 9 The Control Panel is divided into two sec�ons, split by the horizonal line. The area above the line controls the refrigera�on and the area below the line controls the speaker. RIGHT LEFT RIGHT LEFT DRAWER DRAWER DRAWER FRIDGE DRAWER MODE DISPLAY TEMP SELECTION...
-
Page 10: Door Alarm
• When a Drawer is opened, the temperature of the Drawers will show in the display. If the Drawer is le� open, an alarm will beep to remind you to close the Drawer. POWER OFF MEMORY • When the Sound Fridge is powered off, the Power Se�ng will be memorized and revert back to last se�ng when powered back on. - Page 11 SPEAKER CONTROL PANEL DISPLAY ACCESSING SPEAKER SETTINGS • Double tap on the Speaker Unlock icon. Speaker will turn on and go into Bluetooth mode. • On your device, go to Bluetooth se�ngs and select device “SS FRIDGE”. Speaker will announce when device has been paired.
-
Page 12: Wireless Charging
WIRELESS CHARGING NOTE: Wireless charging feature only works for devices that are equipped with wireless charging. • Wireless charging feature is enabled once the table has been plugged in. • Try to center device when placing on wireless charger. Voltage 12V Input •... - Page 13 Benzene, sodium bicarbonate, alcohol, carious good seal and preserve power consump�on. acids or petroleum • The Sound Fridge is heavy. Protect floor when cleaning the unit. o Abrasive cleaners • When moving the Sound Fridge, do not shake. o Abrasive sponges or hard brushes •...
- Page 14 Unplug the Sound Fridge. Secure the trays and par��ons. Do not �lt or stand the Sound Fridge up. The maximum incline should be less than 45 degrees. Inclining more can cause damage to the refrigera�on system. Refrigerated drawers will stay cool for 1 2 hours without power. However, once power has been shut off, do not open the drawers again to preserve the inside temperature.
- Page 15 FAULT CAUSES SOLUTION Turn off the unit and restart it when the power is stable. If Power light is on, compressor is working but making buzzing sound. Power voltage is lower than 90V reguatro 2000V. Compressor starts but stops a�er one minute, and then starts and stops ongoing.
- Page 16 LI M I TED O N E- YEAR COSUMER W ARRAN TY W I TH PRO O F O F PURCH ASE FRO M AUTH O RI ZED RETAI LER Soundstream promises to the original purchaser, to repair or replace this product with a new or refurbished unit (at Soundstream’s sole discre�on) should it prove to be defec�ve in workmanship or material under normal use, for a period of one year from the date of purchase from a Soundstream authorized retailer.
