Summary of Contents for Lufkin LUFKIN LCL4

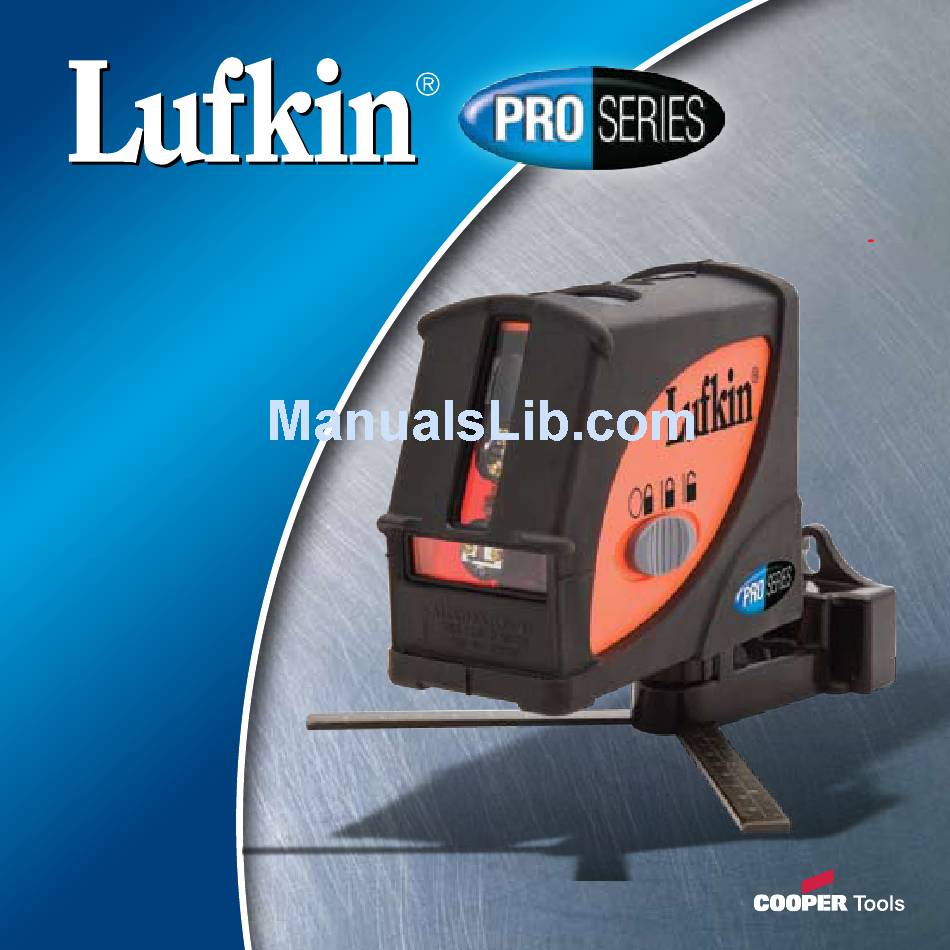

- Page 1 LCL4 MULTI-LINE LASER USER GUIDE...
-
Page 2: Table Of Contents
CONTENTS Contents: Warranty Features Laser Safety & Battery Placement Operation Using the Universal Mount Applications Laser Offsets Calibration Specifications Care & Maintenance Standard Accessories Page 2... -
Page 3: Warranty
Page 3 WARRANTY Statement of Limited Warranty: This laser is warranted to be free from defects in performance and workmanship for a period of twelve months from date of purchase. The warranty covers all cost of repair or replacement of parts. The seller is not responsible for the cost of transportation for returning the instrument for repair. -
Page 4: Features
FEATURES Low battery, Out of Level, External Power LED Working Mode LED Pulse Mode LED Pulse Mode Button Horizontal, Vertical & Cross Line Select Button Plumb Up Beam Window Vertical Beam Window Horizontal Beam Window 1/4” Tripod Mount Plumb Down Beam Window Bottom View Page 4 Top View... - Page 5 Page 5 FEATURES Battery compartment External Power 4.5V DC Attachment Hole Magnetic Back Strap Raceway 1/4” Tripod Screw 5/8” Tripod Mount Universal Mount Square Attachment...
-
Page 6: Laser Safety
Page 6 LASER SAFETY AVOID EXPOSURE: Laser radiation is emitted from this product. Use of controls, adjustments or procedures other than those specified herein may result in laser radiation exposure. Never stare directly at the beam or view directly with optical instruments. AVOID EXPOSURE This label is attached to the unit at the laser aperture. - Page 7 Page 7 OPERATION Pendulum Lock The LCL4 is a precision instrument and should be treated with care. When not in use, the pendulum should always be in the off position (figure1). Locking the pendulum allows the LCL4 to better withstand vibrations and shock incurred during transportation or Figure 1 if the unit is dropped.
-
Page 8: Operation
OPERATION Horizontal, Vertical, Plumb & Cross Line Options The LCL4 has three line options, accessible by using the line options button located on the top of the instrument. If the unit has been turned on, the plumb up and down beams will always be on. -
Page 9: Using The Universal Mount
Page 9 USING THE UNIVERSAL MOUNT The LCL4 comes with a multi-purpose universal mount that allows the unit to be attached to multiple surfaces including wood, metal, pipes, construction tripods, camera tripods and flat surfaces. 1/4” Tripod Mount Use the threaded hole, located on the bottom of the universal mount, to mount the universal mount and the attached LCL4 to a camera tripod. -
Page 10: Applications
APPLICATIONS Cabinet installation Floor tiling • Carpentry: Level and set cabinets and counter tops and Install trim • Stair Layout: Level and plumb decks, plumb framing and partition walls, plumb windows and door frames • Concrete: Set forms and footings •... -
Page 11: Laser Offsets
Page 11 APPLICATIONS Hanging pictures Aligning shelves Hanging pendant lamps Window framing LASER OFFSETS Laser Offsets Use the laser offset information provided in the adjacent illustration to speed plumbing and levelling operations. 28mm 32mm... -
Page 12: Calibration
CALIBRATION It is recommended that you check your LCL4 periodically to assure its accuracy. To check level: Choose two walls approximately 4 - 5 metres apart (figure 1). Turn on the LCL4 to the “auto level” setting. With the laser 15cm away from and facing Surface 1, carefully mark the center of the line where the lines cross. - Page 13 CALIBRATION Surface 1 4-5m Make a second mark 5 metres from point “A”. Make this point “C”. Without moving the laser, make a third mark on the door header. Make this point “D”. Now move the laser to point “C”. EXACTLY align the beam with point “B”. Notice where the beam falls at point “D”.
-
Page 14: Specifications
SPECIFICATIONS Accuracy Self-levelling Range Operating Range Fan Angle Out-of-level Indication Unit Tripod Mount Pendulum Lock/Off Unit Dimensions Unit Weight Universal Mount Dimensions Universal Mount Weight Storage Temperature Operating Temperature Laser Diode Power Supply Operating time ± 3mm @ 10m Plumb beams: ± 1.5mm @ 5m ±... -
Page 15: Care And Maintenance
Page 15 CARE & MAINTENANCE This device is a product of precision design and manufacture and should be treated with care. The suggestions below will help the user fulfill any warranty obligations and also allow the user to enjoy this product for many years. When using the device: Keep it and all its parts and accessories out of small children’s reach. -
Page 16: Standard Accessories
Page 16 STANDARD ACCESSORIES • Laser (LCL4) • Universal mount • Square • Strap • User guide • 3 “AA” batteries • Pouch... - Page 17 519 Nurigong Street PO Box 366, Albury NSW 2640 Phone: (02) 6058 0300 Fax: (02) 6021 7403 E-mail: coopertoolsaus@coopertools.com Web Site: www.cooperhandtools.com.au Issue: 0708829A...
