3monkeez P-3MSS-FVM Installation Instructions

Congratulations! You have just purchased one of the premium products from 3monkeez commercial tapware range which has been manufactured
to Australian Standard AS/NZS3718.

SCOPE OF APPLICATION

P-3MSS-FVM
Features:
• Full stainless steel construction (means lead free water)
• 18 second timed flow option

IMPORTANT INFORMATION

• Valve must be installed by a qualified plumber in accordance with the Plumbing Code of Australia (PCA), AS/NZS3500 and the Manufacturer's
instructions
• All pipework must be thoroughly flushed to remove any debris prior to installation as foreign materials may cause damage to internal parts and
affect performance
• If the unit is replacing an existing unit please ensure the water supply is turned off. It is recommended that isolating stop taps are fitted to the
inlet connection
Step 1
Flush the water supply line to clear any debris. Remove the unit from the packaging.
Step 2
This valve requires 2 mounting holes. If the holes do not exist, mark out and drill 6mm holes as shown in Figure 1 (mounting holes are 5.95mm in
diameter).
Step 3
Secure the valve in place using chosen fixings through the mounting holes.
Step 4
Connect your cold or tempered water flexible hose/pipework to the inlet and outlet of the valve. Water must travel in the direction of the arrow as
shown in Figure 2. Important: Connections other than flexible hoses may require the application of thread sealant or thread tape, if used, ensure it
does not obscue the opening.
Step 5
Once the flexible hoses/pipework are connected to your water source and spout, turn on water supply and test the functionality of the valve by
pushing the top assembly in. Check for any leaks. Place the appropriate coloured indicator in place.

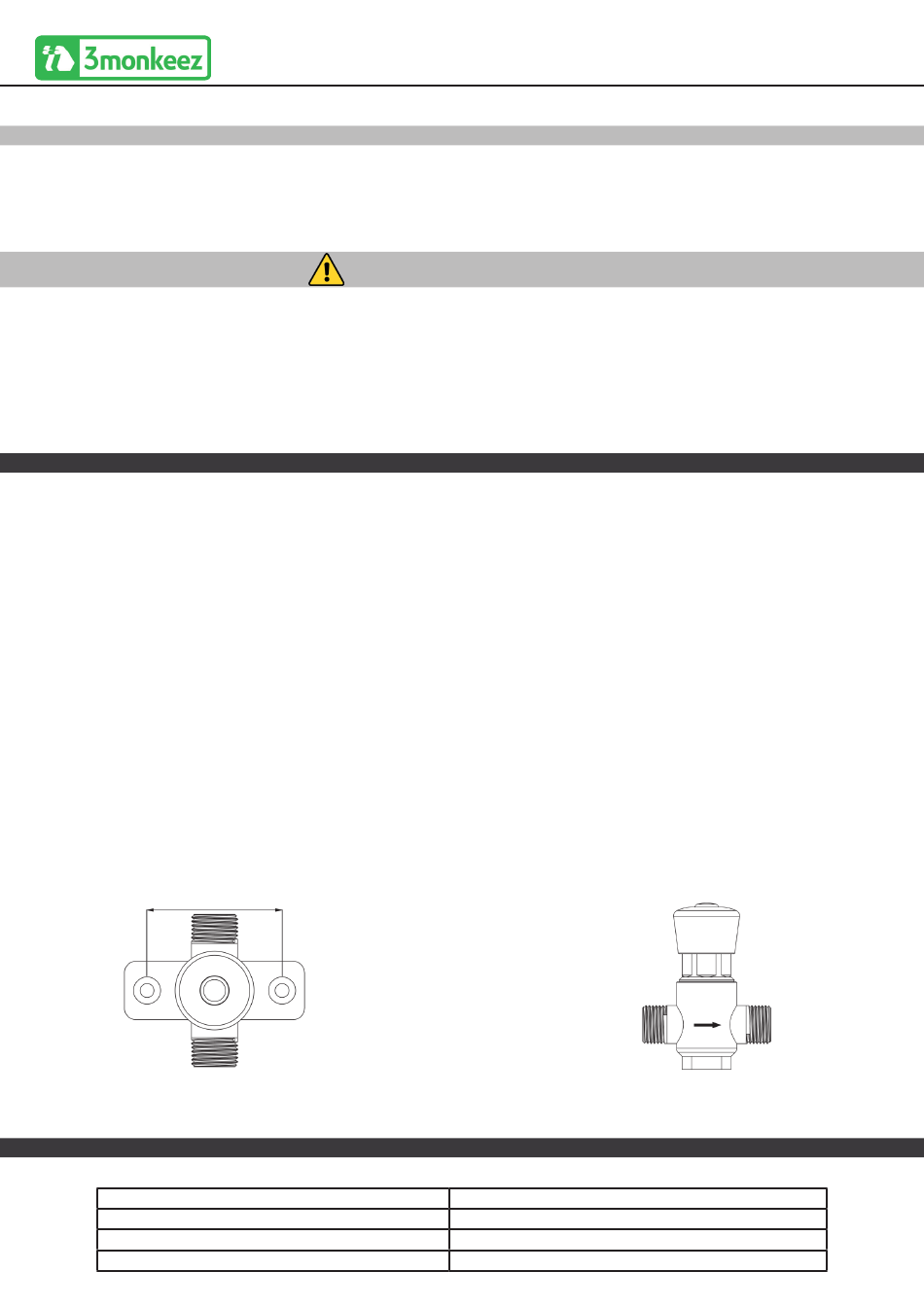

Figure 1
60
TIME IS SET UNDER FACTORY CONDITIONS AND MAY VARY ACCORDING TO WATER PRESSURE, FLOW RATE AND TEMPERATURE
Connections
Working Pressure Range
Recommended Operating Temperature
Finish

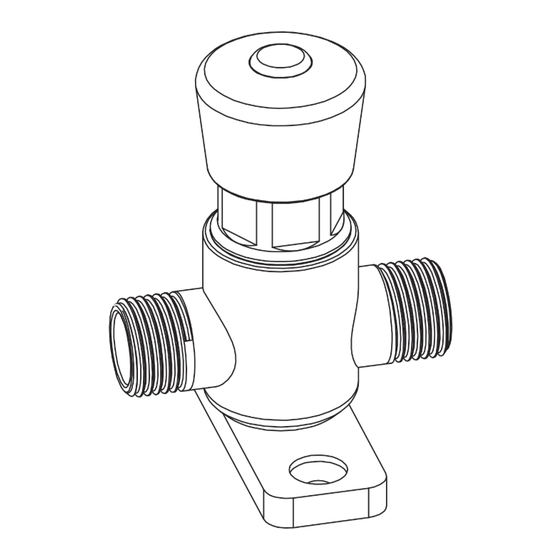

STAINLESS STEEL KNEE/FOOT VALVE
P-3MSS-FVTF (18 second timed flow)
• Easy to operate
Note: Please follow the below procedures. If the below procedures are not followed it may
impact the life of some components and void warranties.
INSTALLATION INSTRUCTIONS

TECHNICAL INFORMATION

1/2" MI BSP Thread
50kPa - 500kPa (Maximum Pressure - 500kPa)
5-70 Degrees Celcius
Satin Stainless Steel
INSTALLATION INSTRUCTIONS
Figure 2
