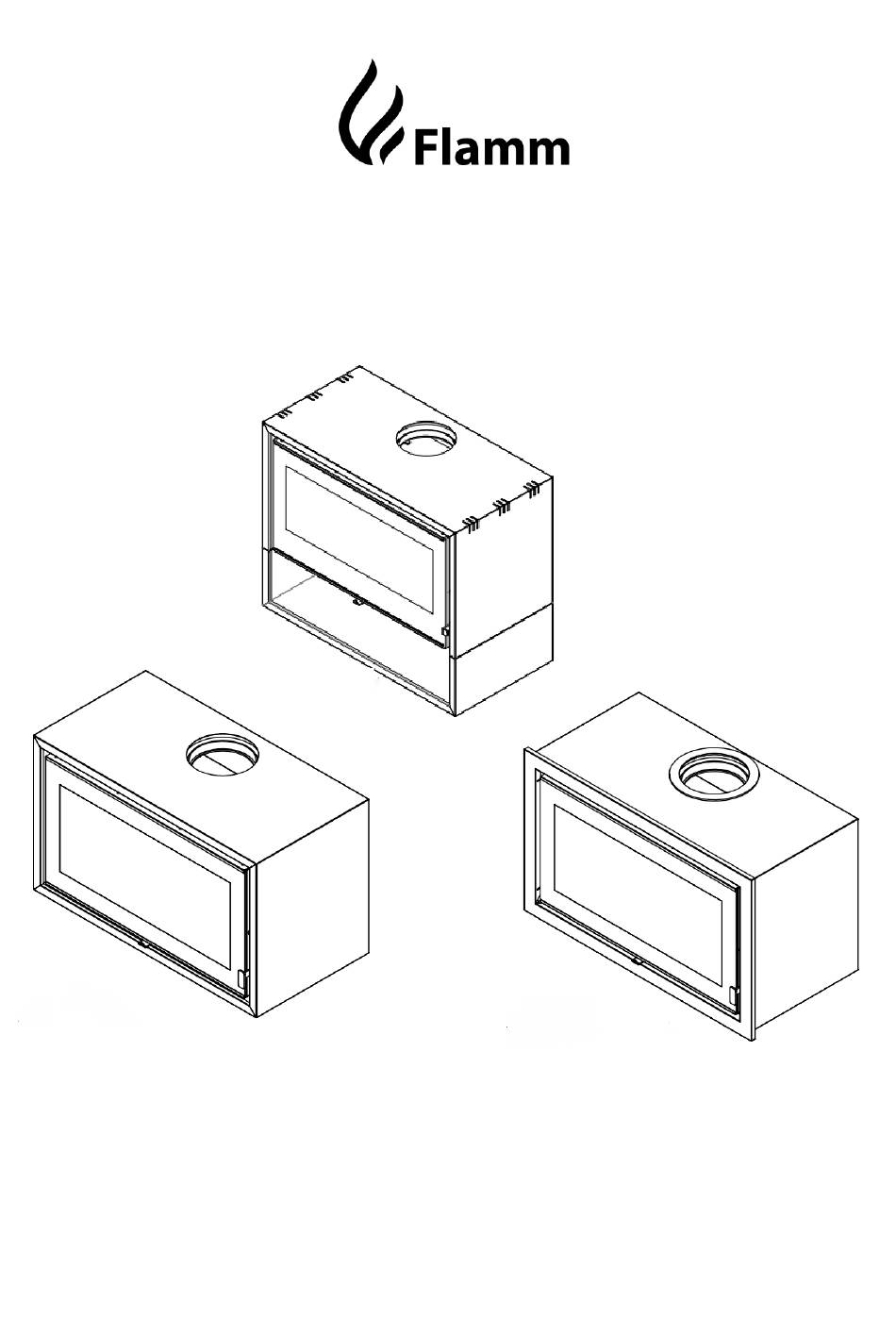

CLOSED COMBUSTION FIREPLACE
950Log base/950/950 Insert
ASSEMBLY & OPERATING INSTRUCTIONS
Important: Read these instructions for use carefully so as to familiarize yourself with
the
appliance before installing and using it. Keep these instructions for future reference.
We reserve the right to make changes to this manual without prior notice.
1
Advertisement
Table of Contents
Related Manuals for Flamm 950Log base
Summary of Contents for Flamm 950Log base
- Page 1 CLOSED COMBUSTION FIREPLACE 950Log base/950/950 Insert ASSEMBLY & OPERATING INSTRUCTIONS Important: Read these instructions for use carefully so as to familiarize yourself with appliance before installing and using it. Keep these instructions for future reference. We reserve the right to make changes to this manual without prior notice.
-
Page 3: Product Specification
INTRODUCTION Thank you for purchasing this Closed Combustion Fireplace. Before attempting to install or use the fireplace, please read this manual throughout and follow the instructions carefully. Thoroughly familiarize yourself with this fireplace & its operation in order to ensure the safety of yourself and others around you. - Page 4 Overall Sizes 950 Log Base 950 Insert...
- Page 5 INSTALLATION OF THIS PRODUCT WARNING! AN ACCREDITED FIREPLACE INSTALLER SHOULD CARRY OUT THE INSTALLATION OF THIS FIREPLACE. ALTERNATIVELY, SHOULD A NONACCREDITED INSTALLER UNDERTAKE THE INSTALLATION, YOUR LOCAL BUILDING CONTROL OFFICER WILL BE REQUIRED TO APPROVE THE COMPLETED INSTALLATION. IF THE FIREPLACE IS NOT FITTED CORRECTLY, BY AN ACCREDITED PERSON OR OUTSIDE THE SCOPE OF THIS MANUAL IT COULD RESULT IN A HOUSE FIRE OR CARBON MONOXIDE POISONING.
-
Page 6: General Safety Rules
CARBON MONOXIDE POISONING CAN BE FATAL. Due consideration should be given to the dangers of carbon monoxide poisoning following incomplete combustion of solid fuels in an enclosed space. See page 14 in this booklet. Ensure the room were this product is installed is well-ventilated, additional air bricks may need to installed to allow for a source of permanent ventilation. -
Page 7: Material Clearances
ASSEMBLY You can either: • Use a registered installer who can self certify that the work he does complies with the relevant Building Regulations; or • The consumer applies to their local authority building control department for a building notice, and pays the appropriate fee. It is generally worthwhile to use an accredited installer who will supply a Certificate of Compliance as a record of the job and that it complies with Building Regulations. -
Page 8: The Chimney (Flue)
It is recommended that the fireplace be installed at least 800mm from combustible materials. However, any household furnishings should be at least 1000mm away as they could be adversely affected by heat. The fireplace can be recessed in a suitable sized fireplace but a permanent free air gap of at least 200mm must be left around the sides and top and at least 50 mm at the back of the fireplace to obtain maximum heat output and for access to the rear of the fireplace. -
Page 9: Flue Height
Bends and offsets should be formed only with the matching factory-made components. Liners need to be placed with the sockets or rebate ends uppermost to contain moisture and other condensates in the flue. Joints should be sealed with fire cement, refractory mortar or installed in accordance with their manufacturer’s instructions. -
Page 10: Inspection And Cleaning
BENDS IN FLUES Offsets in flues are only acceptable if the following rules are respected: a) The chimney system shall have no more than 4 bends in total; - 2 bends in the chimney and 2 bends in the flue pipe connection. b) The offset shall provide a change of direction no more than 45 degrees from the vertical. -
Page 11: Connection To The Chimney
There must always be a permanent means of providing air for combustion into the room in which the fire is installed. A permanent vent with a total free area of at least 550mm2 for every kW rated above 5kW should be connected directly to the outside air or an adjacent room which itself has a permanent vent of the same size direct to the outside air. -
Page 12: Using Your Fireplace
CLEANING THE FLUE Access for cleaning the flue should be incorporated in the system other than through the appliance (e.g. a soot door or access through a register plate). FUME EMISSIONS To avoid chimney problems, your fire should not be burnt slowly for longer than 12 hours without a period of fast burning. -
Page 13: Types Of Fuel
950Log Base/950/950 Insert Air Slide Air Slide Door Handle Door Handle TYPES OF FUEL Fuel should be dry and timber should be well seasoned (at least 8-12 months) so as to have moisture content below 20%. The use of damp wood will result in more soot and tar deposits being left in the chimney, flu and fireplace, and will not release heat if thermal energy is being used to drive out moisture from the fuel. -
Page 14: Lighting Your Fire
FIREBRICKS The firebricks are designed to fit in the base and along the rear and side walls of the firebox. Please ensure the bricks are fitted before using the fire. LIGHTING YOUR FIRE 1) Place firelighters and pieces of crumpled newspaper in firebox floor. 2) Cover the paper with small diameter split kindling. -
Page 15: General Operation
INITIAL OPERATION PERIOD Operate your first few fires to allow the high temperature paint to cure. NOTE: For the first few fires the high temperature paint curing may cause an odour. Ensure sufficient ventilation is supplied to allow dissipation of any smoke and odour. THIS ODOUR IS NORMAL GENERAL OPERATION Refueling on to a low fire bed... - Page 16 Initial paint curing: Note: NEVER wipe the stove in the early stages (prior to paint fully curing), as the paint will be very soft and will damage easily. NEVER attempt to clean or wipe the paint surface when warm or hot.
-
Page 17: Overnight Burn
• Once theses logs are alight, and after about 7 minutes or so, a normal load of 2 or 3 logs weighing up to 1.5kg each, can be added (ONLY AFTER THE INITIAL TEMPERING PERIOD HAS BEEN FOLLOWED – SEE ABOVE) Refueling Once the heater has been burning on high for approximately 20 to 30 minutes it will have reached operating temperature. -
Page 18: Ash Removal
ASH REMOVAL Keep the fireplace free from a heavy build-up of ash. The frequency of this is dependent upon the type and quality of fuel being used. Ash should be removed before it builds up to the underside of the grate, at which point, the grate would be burning hot on both sides, shortening its life expectancy. - Page 19 9. To keep the outer body clean, simply dust over with a clean soft duster when cold. If there are marks which cannot be removed with a duster, use a slightly moistened cloth very gently, but only when the stove is cool and has not been in use. Then pat dry with absorbent paper towel. Regularly vacuum soot and dust from around the inside of the door and around the glass and rope seals.
- Page 20 Troubleshooting Solutions for Stove Problems Installed and used correctly your stove will provide years of warmth with little effort, but used incorrectly will be difficult to achieve the results you expect and can be damage the stove. Combustion is a complex chemical process with many variables, all of which need to be correct for your stove to burn correctly.
- Page 21 3. Smoke comes back into room A small amount of smoke entering the room when you open the stove door is normal but should stop after a few seconds…. If smoke ever leaks constantly into the room stop using the fire immediately, shut down all vents on the stove, open windows and exit the room.
- Page 22 • The fireplace has been recessed into the existing fireplace and a lot of heat is absorbed in the surrounding fireplace walls rather than being radiated into the room. Pull the fireplace forward. 6. Too much heat in room Common causes: •...
- Page 23 If you do not register in time, or have not purchased through an Authorized Retailer don’t worry - our stoves are built to last and you are unlikely to have any issues. In the unlikely event you do encounter any problems, we will still be here to help.
