Instruction Sheet
DTS650 - Silver Corner Glass Display Cabinet - 650mm

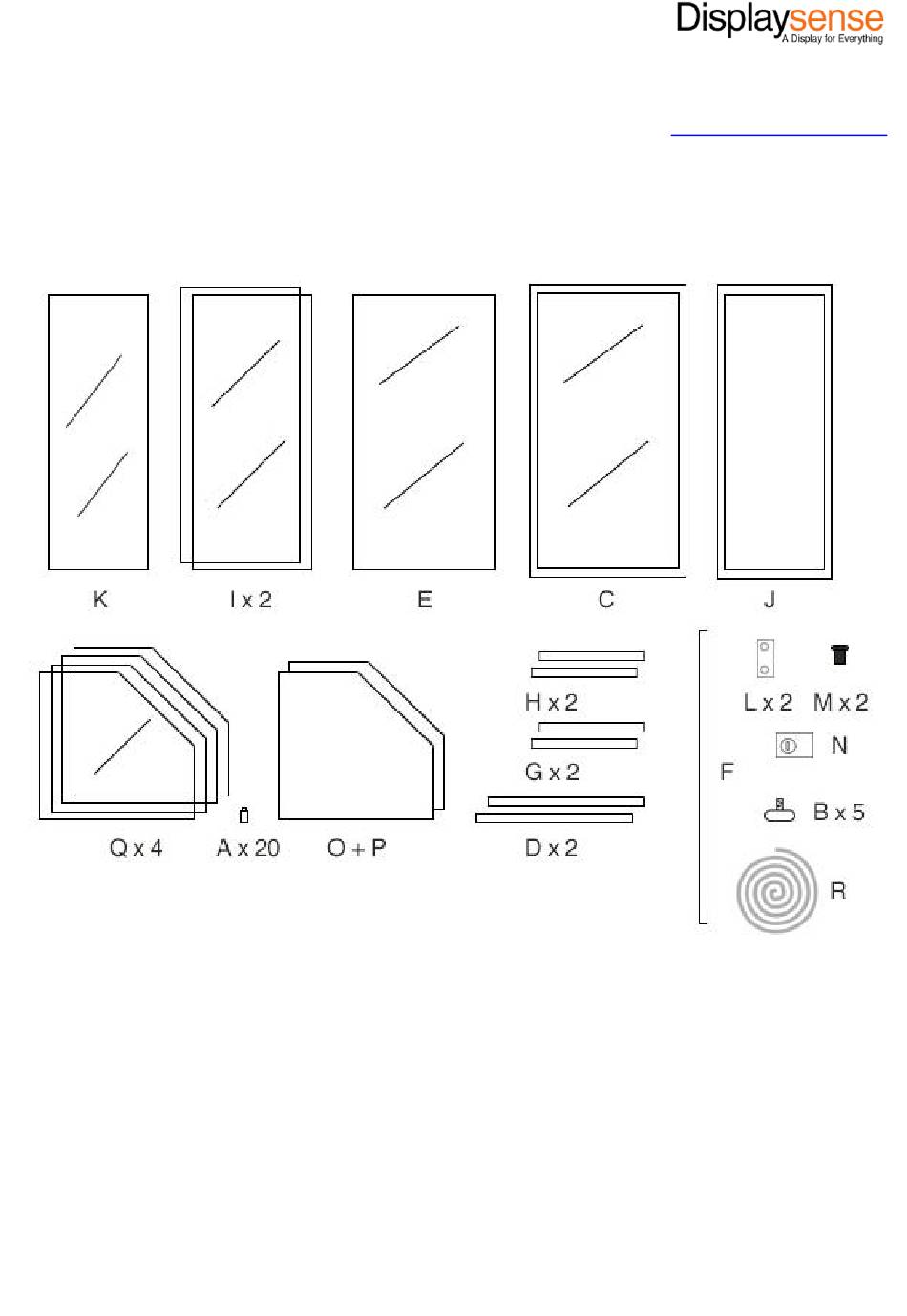

Contents:
A
20 x Self Supports
B
5 x Adjustable Feet
C
1 x Assembled Back Panel
D
2 x Large Back Cross Bars
E
1 x Glass Back Panel
F
1 x Aluminium Upright
G
2 x Cross Bars
H
2 x Cross Bars
I
2 x Glass Side Panels
J
1 x Assembled Front
K
1 x Glass Door
L
2 x Door Hinges
M
2 x Hinge Plugs
N
1 x Door Lock
O
1 x Top Panel
P
1 x Bottom Panel
Q
4 x Glass Shelves
R
1 x Rubber Seal
Bottle of Display Cleaner and Allen Key supplied
Suggested Tools: Philips Screwdriver
1
Phone: 01279 460460
Email: help@displaysense.co.uk
Website:
www.displaysense.co.uk
Advertisement
Table of Contents
Summary of Contents for Displaysense DTS650
- Page 1 Phone: 01279 460460 Email: help@displaysense.co.uk Website: www.displaysense.co.uk Instruction Sheet DTS650 - Silver Corner Glass Display Cabinet - 650mm Contents: 1 x Glass Door 20 x Self Supports 2 x Door Hinges 5 x Adjustable Feet 2 x Hinge Plugs 1 x Assembled Back Panel...
- Page 2 1. Insert all shelf supports (A) into each upright using the markers for guidance by twisting in to position, then attach the adjustable feet (B) into the bottom of each upright 2. Place the back panel (C) onto a flat, soft surface and slide the two large cross bars (D) into the top and bottom corners of the panel, securing in place with the Allen key, then slide the glass back panel (E) in between the two cross bars (D) 3.
- Page 3 11. Screw the lock (N) into position using a Philips screwdriver 12. Finish the cabinet by inserting the top and bottom panels (O + P) and place the shelves (Q) onto the supports 13. Finally, add stability to the glass panels by inserting the rubber seal (R) into the channels where the glass meets the aluminium Hint: Use the display cleaner as a lubricant to help ease the rubber seal into each channel...
