Technical specs
Normal operating voltage
Frequency range
Wireless Range
Temperature sensor accuracy +/‐ 2,5
Motion sensor range
Basic Operations
‐
The MoLiTe can detect movement,
‐
The MoLiTe can measure light intensity
‐
The MoLiTe can measure the temperature.
‐
The MoLiTe can trigger a security system.
ow it operates
H
After a successful inclusion the MoLiTe can be mounted on the wall directly or with a bracket.
When movement is detected the indicator light will blink shortly, this indicates that a z‐wave message has
been send successfully.
With a controller you can request the temperature and battery level.
Mounting
1.
Before mount, the MoLiTe Sensor should be included into a Z‐Wave network and associated.
2.
Use a flat screwdriver at the inlets on the sides to gently unlock the back cover.
3.
Use the supplied screws to mount the cover or bracket to the wall.
For optimal use, mount the MoLiTe between 1,5m and 2,5m above ground
(A rotating bracket is available to adjust the direction the MoLiTe is pointing to).
4.
Place two AA 1,5V batteries into the device.
5.
Mount the MoLiTe onto the back cover and be sure to close it on all sides.
6.
Mounting is completed when the led blinks for a full 1 sec.
7.
The MoLiTe sensor has to start up for ca 10 seconds.
8.
After ca 10 seconds the MoLiTe is ready for detection.
Include or exclude in Z‐Wave network
1.
When the MoLiTe is mounted, remove it from the back cover.
2.
Press and hold the Tamper switch for 2 seconds and release to start the inclusion or exclude process.
3.
When classic inclusion failed, the product will start Network Wide Inclusion automatically.
1
Make sure your Z‐Wave controller is in de correct operation mode (include or exclude).
Version 0.3

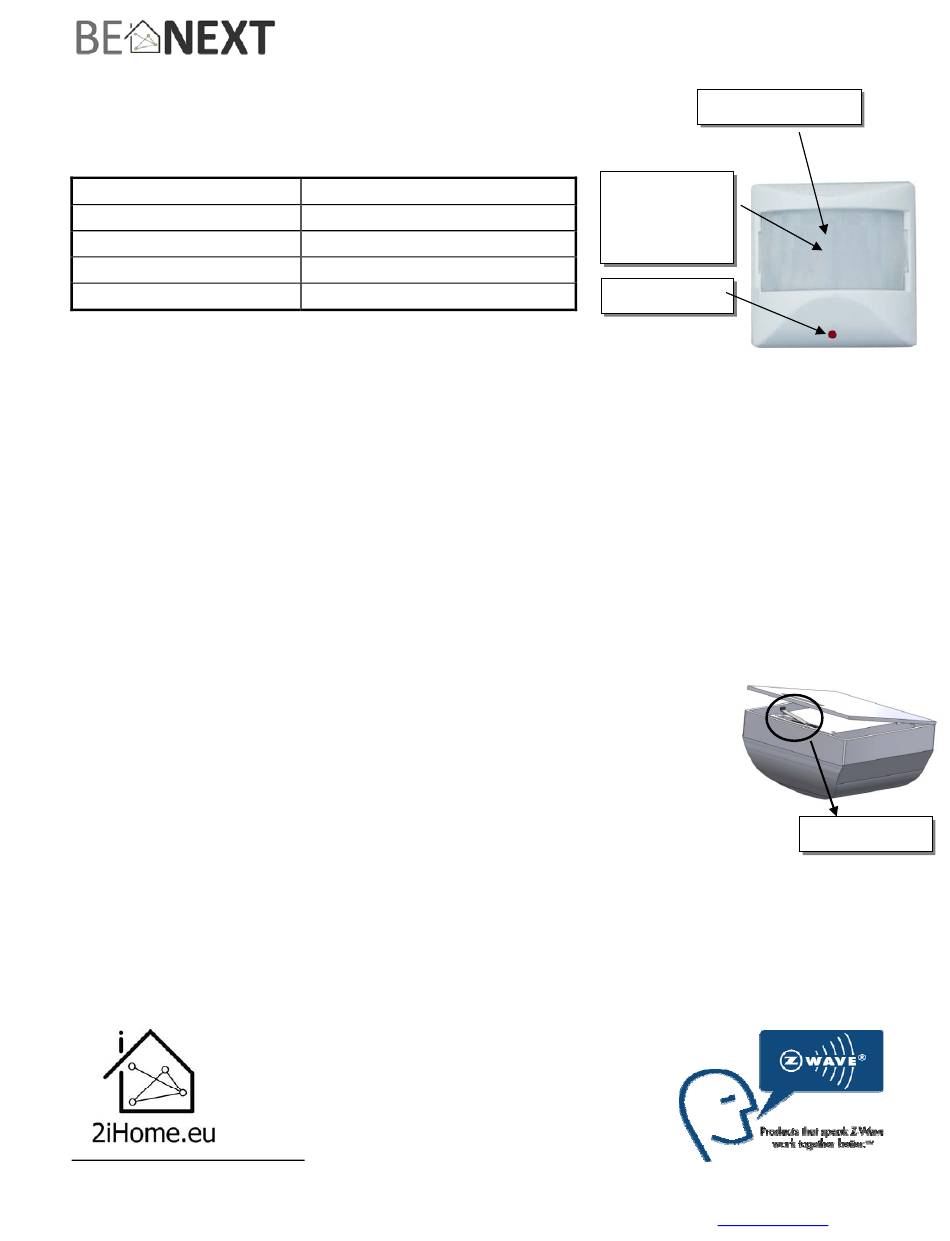

Quick start
MoLiTe sensor EU
2x AA 1,5V batteries
868.42 MHz
Up to 30 meters in line of sight
°
°
C from ‐55
C to +130
Max. 10 meters under a 110
1
20 February 2012
Light and
temperature
sensor
°
C
°
angle
Indicator light
Movement sensor
Tamper switch
www.2iHome.eu
Advertisement
Table of Contents
Summary of Contents for BeNext MoLiTe
- Page 1 Quick start Movement sensor MoLiTe sensor EU Technical specs Light and Normal operating voltage 2x AA 1,5V batteries temperature Frequency range 868.42 MHz sensor Wireless Range Up to 30 meters in line of sight ° ° ° Temperature sensor accuracy +/‐ 2,5 C from ‐55 C to +130 C ° Motion sensor range Max. 10 meters under a 110 angle Indicator light Basic Operations ‐ The MoLiTe can detect movement, ‐ The MoLiTe can measure light intensity ‐ The MoLiTe can measure the temperature. ‐ The MoLiTe can trigger a security system. ow it operates After a successful inclusion the MoLiTe can be mounted on the wall directly or with a bracket. When movement is detected the indicator light will blink shortly, this indicates that a z‐wave message has been send successfully. ...
-
Page 2: Technical Manual
° Motion sensor range Max. 10 meters under a 110 angle ° ° Storage temperature ‐5 C to +65 Storage humidity 10% to 70% ° ° Operating temperature C to 50 C Operating humidity: 30% to 80% Detailed instruction We advise the MoLiTe to be mounted between 1,5m and 2,5m from the ground, flat on the wall and not facing down. With an optional bracket, the direction the MoLiTe is points at can be changed (up/down and left/right). The MoLiTe detects movement up to 10 meters. Without bracket attached, it is recommended to place to MoLiTe in the middle of the wall (see ‘Good sensor positioning’). Bad sensor positioning (poor area coverage) Good sensor positioning Version 0.3 20 February 2012 www.2iHome.eu ... -
Page 3: Indication Mode
Indication mode The indicator light gives various statuses of the device as follows: 1. Ready for learn mode: indicator light blinks every second. 2. Learn in progress (add): indicator light 2 times every second. 3. Learn in progress (remove): indicator light 3 times every second. 4. Learn mode success: indicator light is on for one second. 5. Learn mode failed: indicator light blinks 8 times rapidly. 6. Tamper pressed/released indicator light blinks 3 times rapidly. 7. Mounting successful indicator light is on for 1 second. 8. RF message send failed indicator light blinks 6 times rapidly Supporting Command Classes Basic type: BASIC_TYPE_ROUTING_SLAVE Generic type: GENERIC_TYPE_SENSOR_BINARY Specific type: SPECIFIC_TYPE_NOT_USED Listening: False, Z‐Wave Lib: 4.51 class: 0x30 COMMAND_CLASS_SENSOR_BINARY class: 0x31 COMMAND_CLASS_SENSOR_MULTILEVEL ... - Page 4 Because this is a Z‐Wave device, it means it can co‐operate with other Z‐Wave devices of other manufacturers. It can co‐exist in a Z‐Wave network existing with product from other manufacturers. Hops & Retries The Z‐Wave range has a range of up to 30 meters in line of sight. This signal is not limited to the 30 meter range due to routing the Z‐Wave message to other nodes in the network. This way the range of the Z‐Wave network can be expanded to 150 meters indoors (limit of 4 hops). class 0x20 COMMAND_CLASS_BASIC When a movement is detected a basic set frame with value 255 is sent to the associated nodes. If the configured time is done with no movement is detected a basic set frame with value 0 is sent to the associated nodes. This is the controlling role of the basic command class. The supporting role of the basic command class is mapped to the sensor binary command class. class: 0x30 COMMAND_CLASS_SENSOR_BINARY The Sensor Binary Command Class can be used to check if motion is detected, value 0 means that there is no motion detected and therefore a associated node is off, value 255 means that a associated node is on. Class: 0x80 COMMAND_CLASS_BATTERY This class is used to request and report battery levels for a given device. When battery level is lower then 20% the MoLiTe will send a battery warning (value 255) after every wake up notification. A battery get will report the actual value even if below 20 % class: 0x86 COMMAND_CLASS_VERSION This Command Class is used to obtain information about the MoLiTe. The Z‐Wave library type, the Z‐Wave protocol version and the application version will be reported. Because the version 2 is supported this command class can also be used to request the serial number of the device with the DEVICE_SPECIFIC_GET command. class: 0x72 COMMAND_CLASS_MANUFACTURER_SPECIFIC This will report information about the manufacturer. This product will contain the manufacturer ID of BeNeXt. Manufacturer ID of BeNeXt is 138, the ID of this product is 4. class: 0x70 COMMAND_CLASS_CONFIGURATION Configure parameters: 0. Not used 1. Set to default Description: ...
- Page 5 2. Mode timeout Description: The time used in mode 2 to turn the sensor off. This Time will start running as soon as detection is seen. Default value: 0x0384 = 900 sec = 15 min Size: 2 bytes (integer)* Param1: the most significant byte of the integer Param2: the least significant byte of the integer Param3,4: not used 3. Switch off time Description: T he switch off time will start running as soon as mode timeout is done. M otion sensor is turned on and when movement is ...
- Page 6 Size: 2 bytes* Param1,2: A signed integer to determine the offset off the temperature. Param3,4: not used. * if a size is other then given size the frame is ignored totally so configuration values are not changed class: 0x31 COMMAND_CLASS_SENSOR_MULTILEVEL Sensor_multilevel_get The Sensor Multilevel Command Class is used to get a report from the MoLiTe. The returned value is the measured temperatue inside the housing with 2 decimals. class: 0x60 COMMAND_CLASS_MULTI_CHANNEL_V2 Request temperature Channel 1 Note: The returned value is the measured temperature (+/‐ offset) inside the housing with 2 decimals. Request light / lux Channel 2 Note: The returned value is the measured LDR resistance in %. class: 0x85 COMMAND_CLASS_ASSOCIATION The Association Command Class is used to associate other devices with the MoLiTe. The devices that are associated can be controlled on application level. Every node associated in the group will be switched on with a BASIC_SET very time motion is detected. Number of groupings: 1 Maximum supported nodes per group: 5 ...
- Page 7 class: 0x71 COMMAND_CLASS_ALARM This command class is used to identify the state of the tamper alarm. The device will send an unsolicited report to the controller if the status is changed, the value 0x00 will indicate that the tamper is placed correctly on the wall. The value 0xFF will indicate a tamper alarm. There is 1 alarm type: 3: Tamper switch Every other alarm type that is requested will be ignored by application. Version 0.3 20 February 2012 www.2iHome.eu ...
-
Page 8: Configuration Reset
Configuration Reset The MoLiTe Supports a configuration reset function. Configuration reset means ‐ All configuration values are defaulted. ‐ Wake up interval is defaulted. Note: All configurations will also be defaulted after exclusion the device. This function can be activated by sending a configuration set frame: CONFIGURATION_SET Parameter: 0x01 Size: 0x01 (can’t be different from 1) Value: 0xFF (can be any value except for 0x55 or 0xAA) When the value of configuration value is requested 2 possible values can be returned CONFIGURATION_REPORT Parameter: 0x01 Value 0x55: Device doesn’t have all his default configuration settings anymore. Even when a configuration parameter is changed back to the default value Value 0xAA: Devices still has all his factory settings. This are only configuration parameters, wake up interval can be changed. ... -
Page 9: Troubleshooting
1. The MoLiTe isn’t included in a Z‐Wave network. Include it and try it again. 2. The batteries are almost empty, try putting new ones in. Q: The temperature report of the MoLiTe is incorrect. A: 1. The MoLiTe is placed directly in the sun, which makes the temperature in the housing of the MoLiTe hotter than elsewhere in the room. 2. The calibration is not the same as your other temperature sensor, it is possible to do a re‐calibration of the temperature sensor with 2myhome and the myGate. Q: I have configured a value but when I request it, it is not changed? A: It is mandatory that the correct size is used while configure a parameter; go to the documentation about the configuration command class to check if the right size is used during configuration. If the wrong size is used the frame is ignored totally. Q: I have configured a new value and when I request it the correct value is returned but the behavior is still the same? A: Some configuration parameters have limits of what they can do, go to the documentation about configuration to check if the value of the configured parameter is out off limit. Q: When I mount the MoLiTe it performs its standard mounting routine but after 4 seconds the indicator light doesn’t go on for 1 second but blinks 6 times. A: blinking 6 times can mean: 1. MoLiTe is not included 2. MoLiTe is not associated 3. MoLiTe can’t reached his destination If all three options are corrected, MoLiTe is will operate correctly and can be mounted again. Q: When I exclude the MoLiTe the configuration times(idle and switch off) are reset back to default. A: That is correct when the MoLiTe is excluded all configurations including wake up timings are reset back to default. You will need to configure the device again after included into the controller. By forcing the tamper switch a wake up message (broadcast) will be send to easily change the configuration. Version 0.3 20 February 2012 www.2iHome.eu ...
