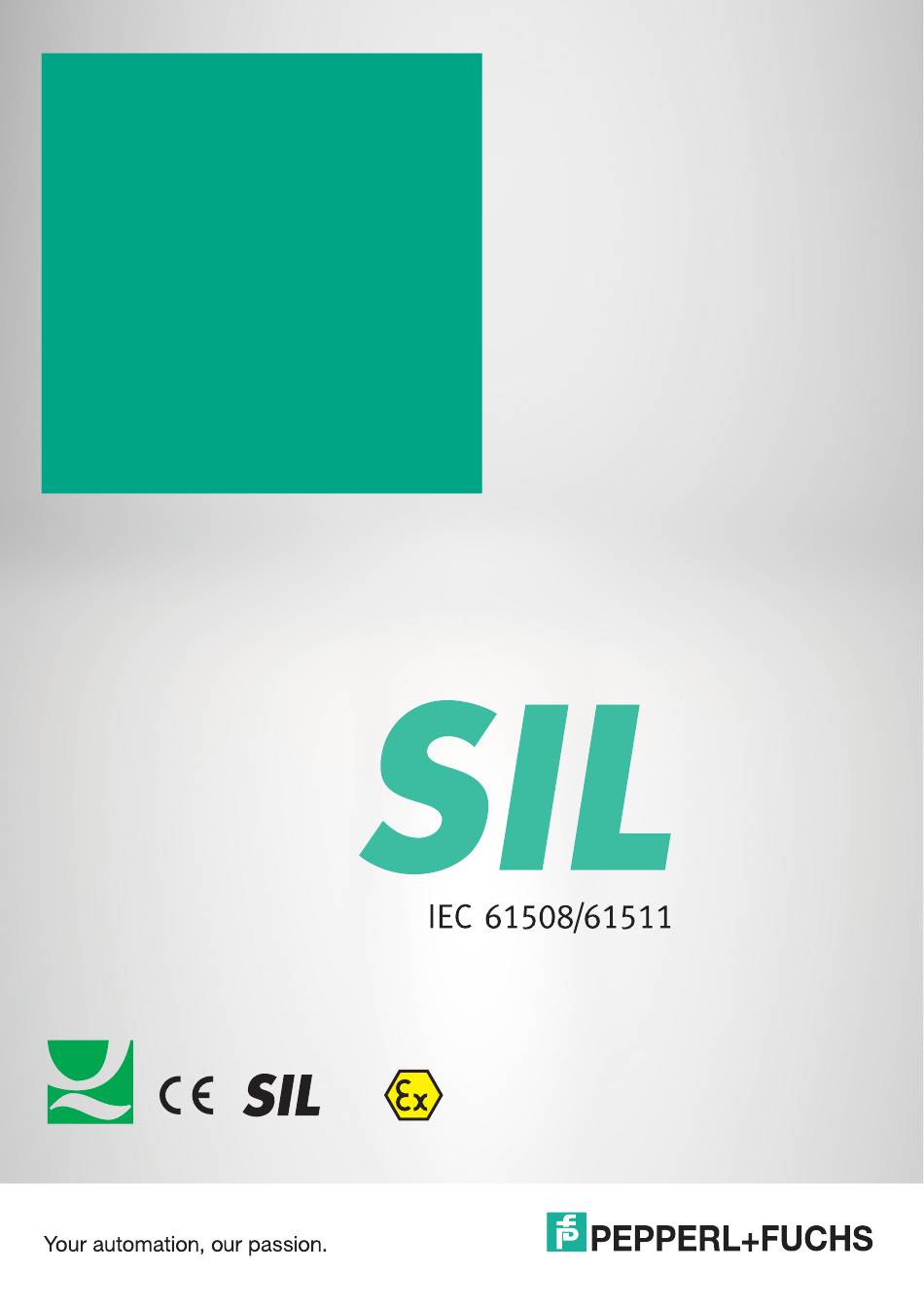

- Page 1 Functional Safety M-LB-(Ex-)4000-System – Surge Protection Barriers Manual ISO9001...
- Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...
-
Page 3: Table Of Contents
Functional Safety M-LB-(Ex-)4000-System Contents Introduction ............5 Content of this Document . - Page 4 Functional Safety M-LB-(Ex-)4000-System Contents...
-
Page 5: Introduction
Additionally, the following parts may belong to the documentation, if applicable: • EU-type examination certificate • EU declaration of conformity • Attestation of conformity • Certificates • Control drawings • FMEDA report • Assessment report • Additional documents For more information about Pepperl+Fuchs products with functional safety, see www.pepperl-fuchs.com/sil. -
Page 6: Safety Information
Functional Safety M-LB-(Ex-)4000-System Introduction Safety Information Target Group, Personnel Responsibility for planning, assembly, commissioning, operation, maintenance, and dismounting lies with the plant operator. Only appropriately trained and qualified personnel may carry out mounting, installation, commissioning, operation, maintenance, and dismounting of the product. The personnel must have read and understood the instruction manual and the further documentation. -
Page 7: Symbols Used
Functional Safety M-LB-(Ex-)4000-System Introduction Symbols Used This document contains symbols for the identification of warning messages and of informative messages. Warning Messages You will find warning messages, whenever dangers may arise from your actions. It is mandatory that you observe these warning messages for your personal safety and in order to avoid property damage. -
Page 8: Product Description
Functional Safety M-LB-(Ex-)4000-System Product Description Product Description Function This manual describes solely the safety function and safe state of the surge protection barrier as part of the surge protection system. Danger! Danger to life from wrong usage of the device The protection of the safety loop against overvoltage is not the safety function of the surge protection barrier. -
Page 9: Interfaces
• Non-safety relevant interfaces: status indication Note For corresponding connections see datasheet. Marking Pepperl+Fuchs Group Lilienthalstraße 200, 68307 Mannheim, Germany Internet: www.pepperl-fuchs.com Surge protection barriers M-LB-42**(.M), M-LB-Ex-42**(.M) Up to SIL 3 The *-marked letters of the type code are placeholders for versions of the device. -
Page 10: Planning
Functional Safety M-LB-(Ex-)4000-System Planning Planning System Structure 3.1.1 Low Demand Mode of Operation If there are two control loops, one for the standard operation and another one for the functional safety, then usually the demand rate for the safety loop is assumed to be less than once per year. -
Page 11: Assumptions
Functional Safety M-LB-(Ex-)4000-System Planning Assumptions The following assumptions have been made during the FMEDA: • The device will be used under average industrial ambient conditions comparable to the classification stationary mounted according to MIL-HDBK-217F. Alternatively, operating stress conditions typical of an industrial field environment similar to IEC/EN 60654-1 Class C with an average temperature over a long period of time of 40 ºC may be assumed. -
Page 12: Safety Function And Safe State
Functional Safety M-LB-(Ex-)4000-System Planning Safety Function and Safe State The safety function of the surge protection barriers depends on the signal loop to which it is attached. The interference on safety relevant signals (e. g. 4 mA to 20 mA analog signal) that pass through the devices was evaluated. - Page 13 Functional Safety M-LB-(Ex-)4000-System Planning Safety Function The safety function of the surge protection barrier is to behave like a piece of copper wire, passing through the process signal without being altered. Reaction Time The reaction time is < 1 ms. Note The fault indication output is not safety relevant.
-
Page 14: Characteristic Safety Values
Functional Safety M-LB-(Ex-)4000-System Planning Characteristic Safety Values M-LB-4224, M-LB-4244, M-LB-4254 Parameters Characteristic values Assessment type Full assessment Device type Mode of operation Low demand mode or high demand mode Safety function Pass through the signal Analysis Analysis 1 Analysis 2 0 FIT 0 FIT ... - Page 15 Functional Safety M-LB-(Ex-)4000-System Planning M-LB-4222, M-LB-4242, M-LB-4252 Parameters Characteristic values Assessment type Full assessment Device type Mode of operation Low demand mode or high demand mode Safety function Pass through the signal Analysis Analysis 1 Analysis 2 0 FIT 0 FIT ...
- Page 16 Functional Safety M-LB-(Ex-)4000-System Planning M-LB-4212 Parameters Characteristic values Assessment type Full assessment Device type Mode of operation Low demand mode or high demand mode Safety function Pass through the signal Analysis Analysis 1 Analysis 2 0 FIT 0 FIT 3 FIT 3 FIT ...
- Page 17 Functional Safety M-LB-(Ex-)4000-System Planning M-LB-4214 Parameters Characteristic values Assessment type Full assessment Device type Mode of operation Low demand mode or high demand mode Safety function Pass through the signal Analysis Analysis 1 Analysis 2 0 FIT 0 FIT 3 FIT 3 FIT ...
- Page 18 Functional Safety M-LB-(Ex-)4000-System Planning M-LB-Ex-4242 Parameters Characteristic values Assessment type Full assessment Device type Mode of operation Low demand mode or high demand mode Safety function Pass through the signal Analysis Analysis 1 Analysis 2 0 FIT 0 FIT 3 FIT 3 FIT ...
- Page 19 Functional Safety M-LB-(Ex-)4000-System Planning M-LB-4272 Parameters Characteristic values Assessment type Full assessment Device type Mode of operation Low demand mode or high demand mode Safety function Pass through the signal Analysis Analysis 1 Analysis 2 0 FIT 0 FIT 2 FIT 2 FIT ...
- Page 20 Functional Safety M-LB-(Ex-)4000-System Planning M-LB-4282 Parameters Characteristic values Assessment type Full assessment Device type Mode of operation Low demand mode or high demand mode Safety function Pass through the signal Analysis Analysis 1 Analysis 2 0 FIT 0 FIT 2 FIT 2 FIT ...
-
Page 21: Useful Lifetime
As noted in DIN EN 61508-2:2011 note N3, appropriate measures taken by the manufacturer and plant operator can extend the useful lifetime. Our experience has shown that the useful lifetime of a Pepperl+Fuchs product can be higher if the ambient conditions support a long life time, for example if the ambient temperature is significantly below the maximum ambient temperature. -
Page 22: Mounting And Installation
Functional Safety M-LB-(Ex-)4000-System Mounting and Installation Mounting and Installation Mounting and Installing the Device Observe the safety instructions in the instruction manual. Observe the information in the manual. Observe the requirements for the safety loop. Connect the device only to devices that are suitable for this safety application. Check the safety function to ensure the expected output behavior. -
Page 23: Operation
Functional Safety M-LB-(Ex-)4000-System Operation Operation Danger! Danger to life from missing safety function If the safety loop is put out of service, the safety function is no longer guaranteed. • Do not deactivate the device. • Do not bypass the safety function. •... - Page 24 Functional Safety M-LB-(Ex-)4000-System Operation Leakage Current Measurement Device Step no. Measurement Expected result M-LB-4212(.M) 6 V AC or 8.5 V DC between Leakage current below 10 A terminals 1' and 2' 6 V AC or 8.5 V DC between Leakage current below 10 nA terminal 1' and ground 6 V AC or 8.5 V DC between Leakage current below 10 nA...
- Page 25 Functional Safety M-LB-(Ex-)4000-System Operation Device Step no. Measurement Expected result M-LB-4282(.M) 250 V AC or 320 V DC between Leakage current below 50 nA terminals 1' and 2' 250 V AC or 320 V DC between terminal 1' and ground 250 V AC or 320 V DC between terminal 2' and ground Table 5.1...
- Page 26 Functional Safety M-LB-(Ex-)4000-System Operation 1’ ϑ 2’ Zone 2 Figure 5.3 Proof test set-up for M-LB-4212(.M) 1’ ϑ 2’ Zone 2 Figure 5.4 Proof test set-up for M-LB-4214(.M) 1’ ϑ 2’ Zone 2 Figure 5.5 Proof test set-up for M-LB-4272(.M)
- Page 27 Functional Safety M-LB-(Ex-)4000-System Operation 1’ ϑ 2’ Zone 2 Figure 5.6 Proof test set-up for M-LB-4282(.M) 1’ ϑ 2’ Zone 0, 1, 2 Zone 0, 1, 2 Zone 1, 2 Figure 5.7 Proof test set-up for M-LB-Ex-4242(.M)
-
Page 28: Maintenance And Repair
Report all failures in the safety function that are due to functional limitations or a loss of device function – especially in the case of possible dangerous failures. In these cases, contact your local sales partner or the Pepperl+Fuchs technical sales support (service line). -
Page 29: List Of Abbreviations
Functional Safety M-LB-(Ex-)4000-System List of Abbreviations List of Abbreviations Emergency Shutdown Failure In Time in 10 FMEDA Failure Mode, Effects, and Diagnostics Analysis Probability of safe failure Probability of dangerous detected failure Probability of dangerous undetected failure Probability of failures of components in the safety loop that have ... - Page 30 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications Printed in Germany / DOCT-8598...
