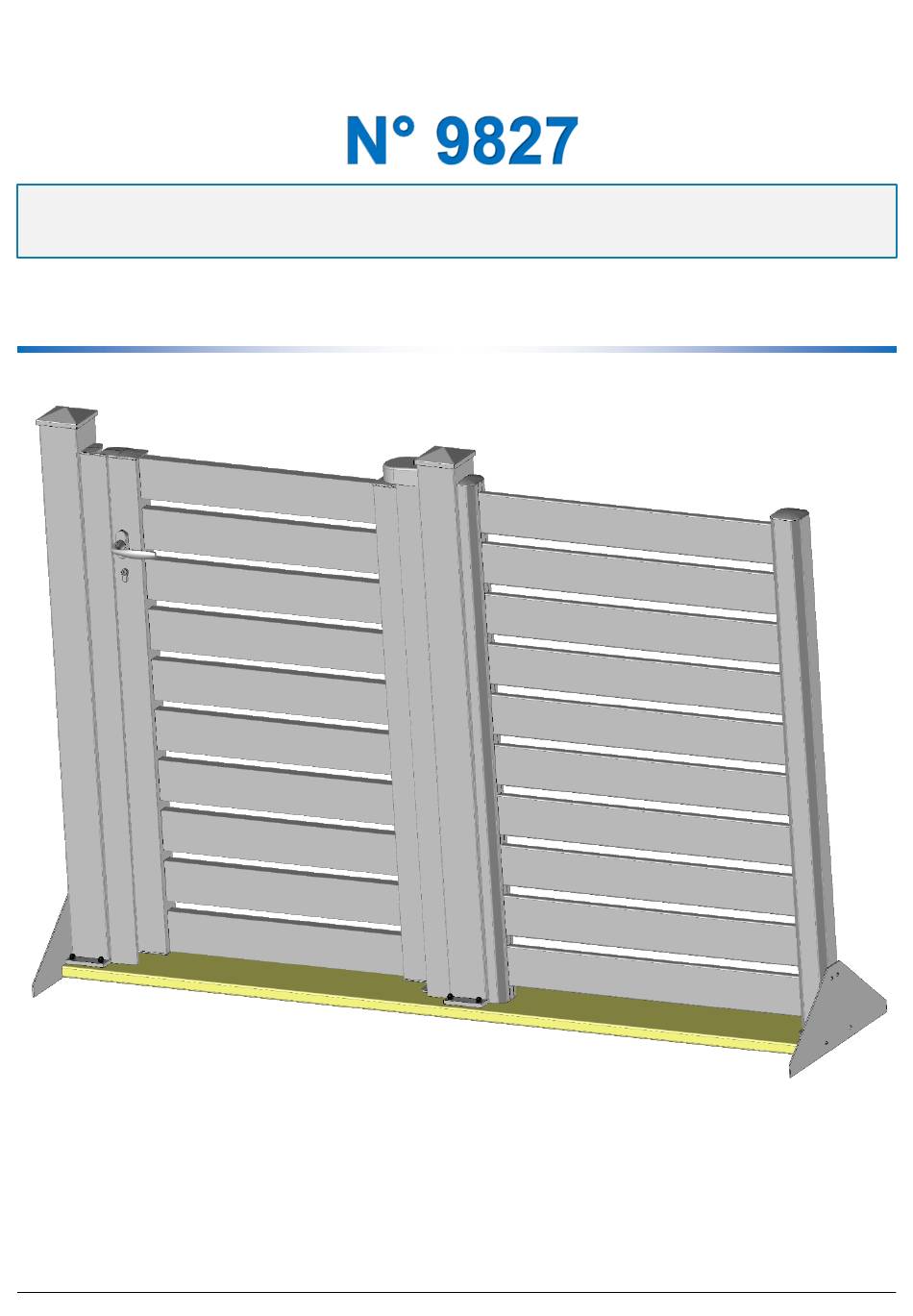

- Page 1 Manual 03/23 INSTALLATION Point-of-sale advertising (Installers use only) This document is our exclusive property and may not be copied. It may at any time be modified as the product evolves. R2-TE-021 rev B...
- Page 2 Installation Point-of-sale advertising _N°9827 On Leveled Ground 1. Insert the 2 reinforcements blades into the slats, then screw the 2 bases foot with Ø4,2 mm screws : 2. Counter-drill bores diameter 5,5 mm, the slat and reinforcements (2 holes out of 10 are not reachable) : Central Post Screw the post middle of the slat and in the holes formerly drilled.
- Page 3 Installation Point-of-sale advertising _N°9827 Fence Half Post Opposite side of the inserts, on the non-drilled face, position the half-post right in the middle and drill this assembly 5 mm diameter hole. Then screw the 4 screws Ø5,5 mm. CREATIV Fence Follow the steps described into the manual of installation included into your order.
- Page 4 Installation Point-of-sale advertising _N°9827 Second Post 1. Place the second post against the base Turn the holes towards the posts, (visible bottom holes) and screw with 2 screws holes side of the slat. Ø6,3 mm + washers. 2. Unscrew the base and counter drill the slat + reinforcements 5,5 mm diameter.
- Page 5 Installation Point-of-sale advertising _N°9827 Gate Stop On the same post, position the gate stop in line with the post’s drillings and counter-drill 5 mm holes. Screw the gate stop with the 3 tapping screws Ø5,5 mm. 10 mm Pedestrian Gate 1.
- Page 6 Installation Point-of-sale advertising _N°9827 Handle/Lock Install the handle and the lock. Nota : The latch can be turned and is adjustable in depth. Finishing Profile 1. Slide the finishing profile into the notches of the top and bottom hinges until it flushes the slat.
- Page 7 Installation Point-of-sale advertising _N°9827 Post Lid Screw the 2 post lids onto the posts using the Ø4,2 mm screws. 03/23 This document is our exclusive property and may not be copied. It may at any time be modified as the product evolves.
