Summary of Contents for Xtensions Emulator Edition

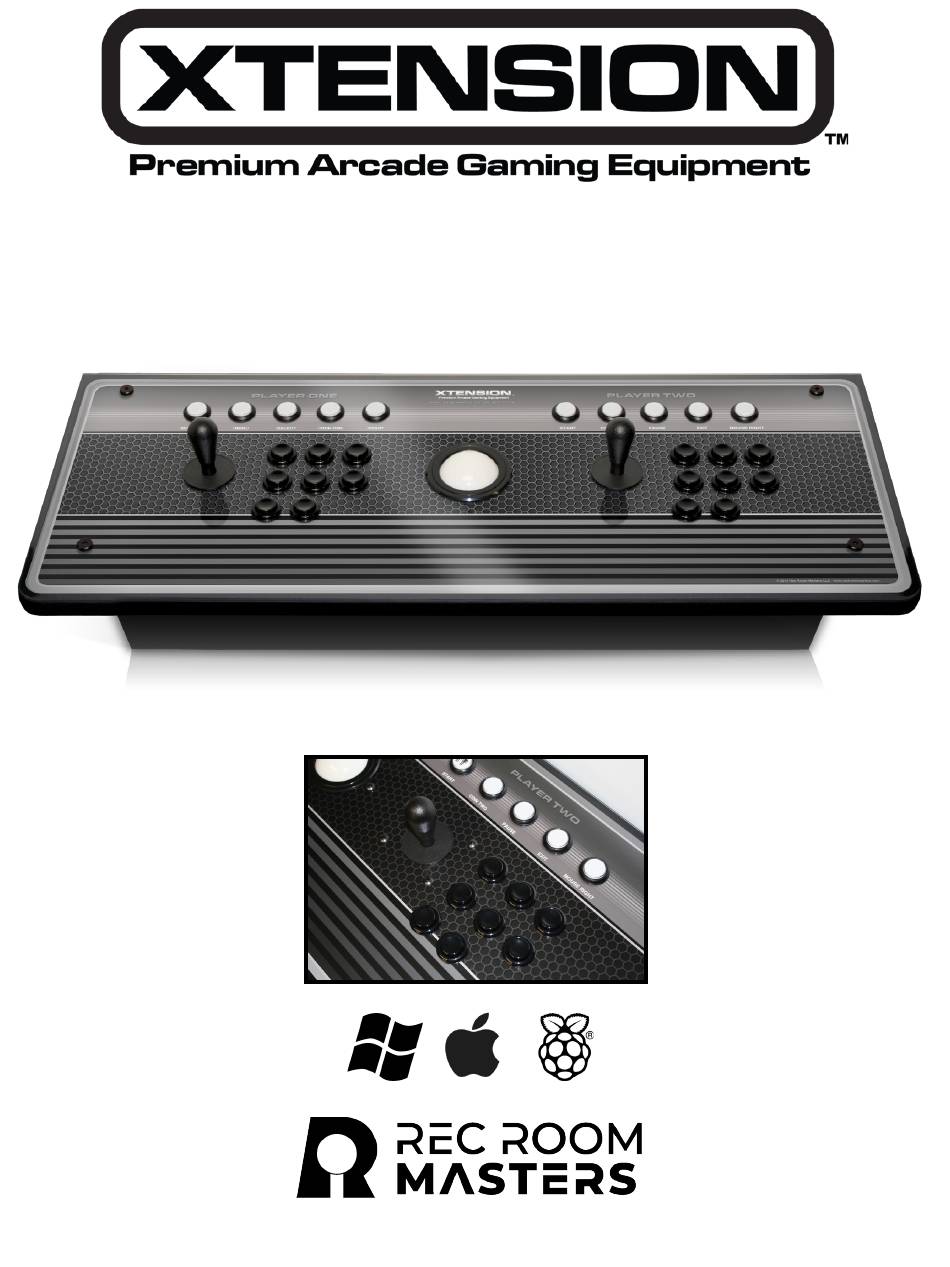

- Page 1 USER MANUAL “Emulator Edition” 2 Players, With 3” Trackball, 10 LED Menu Buttons Version 2 Software NOW with 3 Switchable Modes! Keyboard / D-Input / X-Input Windows™ MAC™ Raspberry Pi™ Rec Room Masters www.recroommasters.com email: support@recroommasters.com...
-
Page 2: Keyboard Mode
If you did not order an Xtension Arcade cabinet, you will not need the 4 - 60mm black bolts. STEP 3: Your Xtension Emulator Edition Controller has 1 USB cable. Plug your USB cable into your PC, Mac or Raspberry pi and turn on your computer or pi. Your LED Menu buttons will turn on and are powered by the USB input of your PC, Mac or Raspberry pi. - Page 3 page 3 KEYBOARD MODE KEYBOARD MODE (PC KEYBOARD DEFAULT MAPPING LAYOUT) L CTRL TRACKBALL The menu labels displayed on the controller printed graphic are labled for Keyboard Mode only, for PC emulation navigation. Press and Hold the Shaded Buttons for 10 Seconds to Get Back into Keyboard Mode If you are not in Keyboard Mode and wish to switch back to Keyboard Mode, you will need to hold down the following buttons for 10 seconds.
- Page 4 page 4 D-INPUT MODE D-Input Mode is best used for 2 player Raspberry pi gameplay and Retro Pie software. You can also use it for PC use. During PC use, the controller will show up as 2 individual gamepads in your Windows Device Manager. This does not affect gameplay. D-Input is NOT recommended for PC use with Steam games.
- Page 5 page 5 HELPFUL TIPS WITH SETING UP YOUR CONTROLLER USING RETRO PIE SOFTWARE For Raspberry Pi and Retro Pie Software Using D-Input Mode TIP 1: When attempting to “CONFIGURE INPUT”, set up your player 2 first and do not configure a “HOT KEY”. When Retro Pie asks what you want for your “HOT KEY”, just hold down any button to skip this step and no “HOT KEY”...
- Page 6 page 6 X-INPUT MODE X-Input Mode is best used for 2 player PC use with Steam games, especially modern fighting games. During PC use, X-Input Mode will show up as 1 game pad in your Windows device manager however, in most Steam games, you will actually be able to use player 1 and 2 simultaneously as 2 separate players.
-
Page 7: Important Warning
Additional Information page 7 Controller Cleaning Do not clean your plexiglass areas with anything but a soft dry rag. DO NOT use glass cleaner or any liquid as it may damage your controller. Again, only clean the controller with a cloth or soft dry rag. -
Page 8: Warranty Information
WARRANTY INFORMATION page 8 We stand behind all of our products! If you are experiencing any issues with your controllers, please contact us at the number listed below and we will be happy to address your issue on a case-by-case basis. There is no time expiration to the warranty as long as you are the original purchaser of the product.
