STEVAL-ILL022V1 solar-LED streetlight controller with 25 W LED
lamp driver and 80 W battery charger based on the STM32F101Rx
September 2010
Downloaded from
Elcodis.com
electronic components distributor
Introduction
The solar-LED streetlight controller consists of one 80 W battery charger and one 25 W LED
driver. During the daytime, when there is sufficient sunlight, the charger converts the
electricity from the solar panel and charges the battery. At nighttime, the battery powers on
the LED lamp as streetlight.
If it is rainy or cloudy for several continuous days, the battery will gradually run out of power.
The controller then resorts to the AC mains supply to power on the LED until the battery has
had time to fully charge again.
Main features of the solar-LED streetlight controller
Maximization of electricity conversion efficiency from solar panel by way of maximum
power point tracker (MPPT)
Automatic day/night/weather detection
Automatic battery/mains switch over
Constant current control for LED lamp
Battery charge control
Optional LED lighting duration mode
Easy system monitoring via debug LED indicators
Full protection function for OTP, OCP and UVP

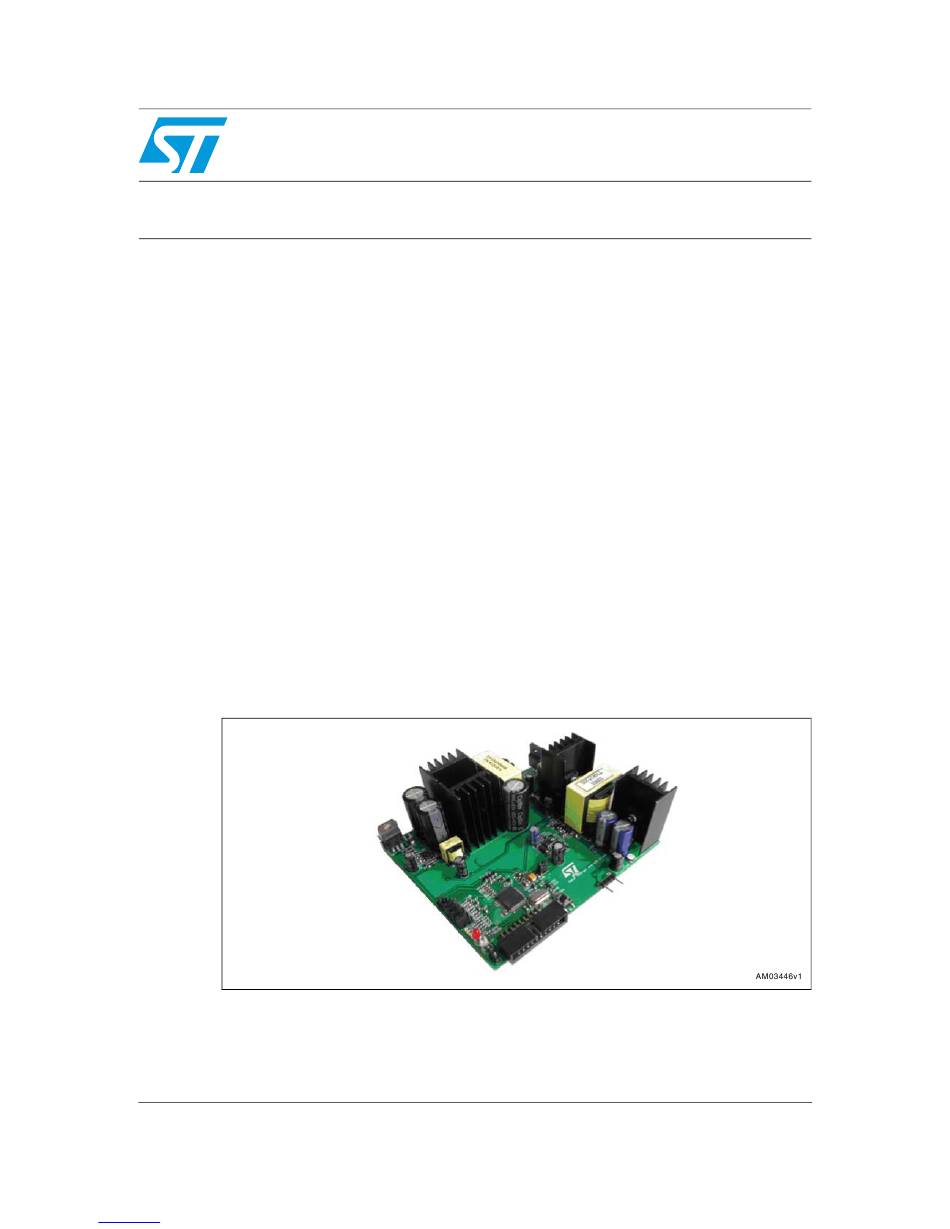

Figure 1.
Snapshot of the solar-LED streetlight controller
Doc ID 14469 Rev 2
UM0512
User manual
1/18
www.st.com
