Summary of Contents for Uniks M8

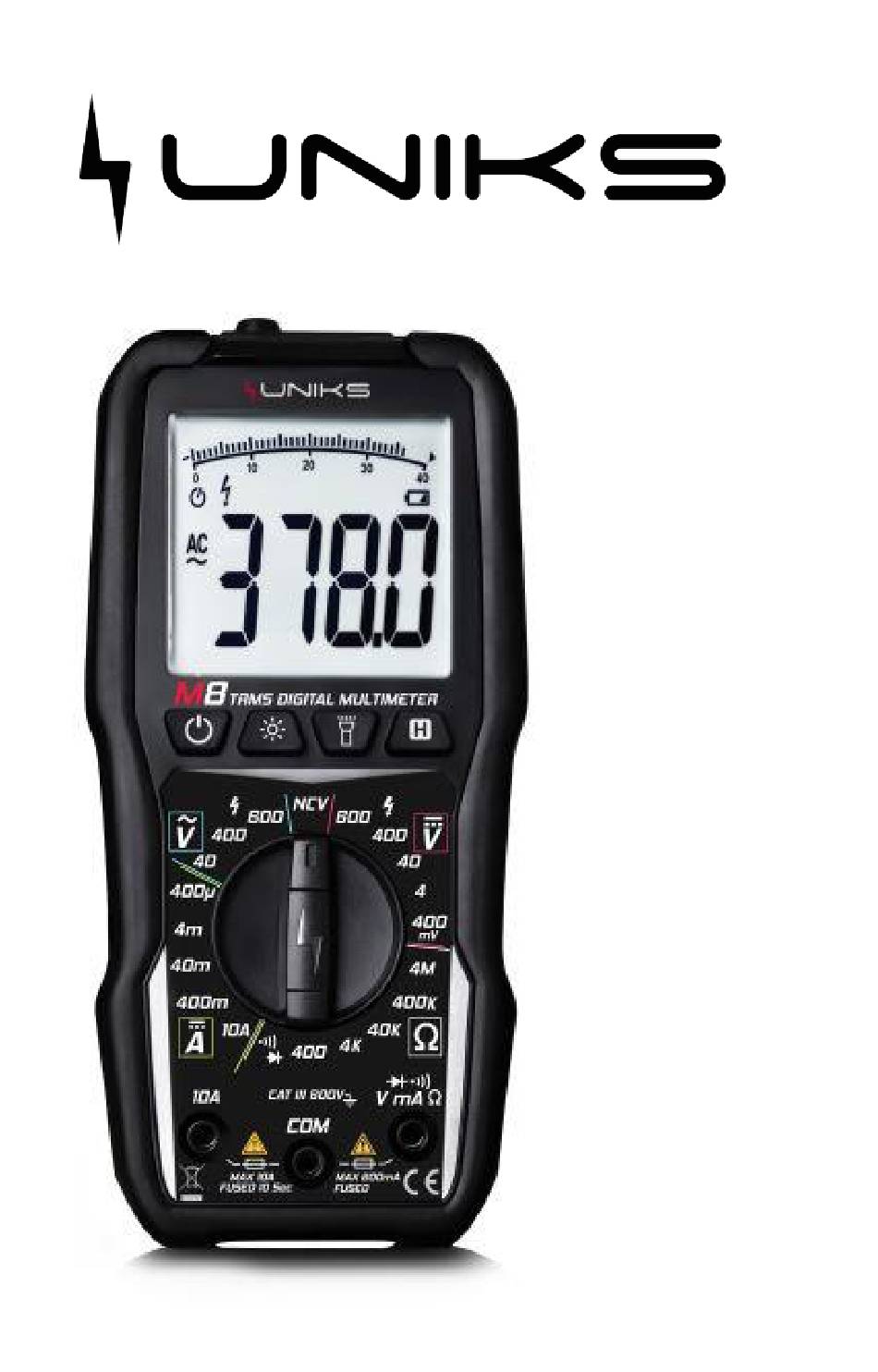

  • Page 1 TRMS Digital Multimeter User Manual...
  • Page 2 REGISTER YOUR PRODUCT www.uniks.it The registration of your products will allow you to stay informed about news, take advantage of advantageous discounts dedicated to you for the purchase of accessories and products for your daily work. Registration is free...
  • Page 3: Table Of Contents

    Overview ................4 Safety lnformation ............4 Safety Signs..............4 Precautions for Use ............4 1. Appearance ..............5 1.1 Description of the instrument ........6 1.2 Description of LCD Symbol......... 7 2. Technical specification ..........7 3. How to Use ..............9 3.1 Precautions for operation: ........
  • Page 4: Overview

    Overview This instrument adopts a LCD monitor with backlight, so that the values can be clearly read even at a dark piace. lt is a compact handheld digital multimeter (4000 counts) with high performance and reliability. lt uses integrate circuit and A/D converter as the core,...
  • Page 5: Appearance

    measured range is unknown size.Keep test pen from the circuit under test before the function range is switched. Power off the circuit and discharge all the capacitors before in-circuit resistance measuring. Please be careful to put your fingers beyond the hand-blocking part of test pen when measuring voltage over...
  • Page 6: Description Of The Instrument

    1.1 Description of the instrument  screen:7-segment LCD monitor with 4000 counts and the function of analog bar indication.  Button area: Power button: Press the button once to power on and press it again power off. (lt will automatically power off after 15-minute no-operation because has an auto sleep function.) Backlight button:...
  • Page 7: Description Of Lcd Symbol

    1.2 Description of LCD Symbol Auto power-off Danger of high voltage Diode measurement On-off measurement measurement Data hold Battery under voltage AC voltage/current voltage/current 2. Technical specification Degree of accuracy: reading numbers; warranty period is year from the date of delivery. Ambient temperature: 18°C-28°C.
  • Page 8 DC Current Range Resolution Degree of accuracy ±(1.0% +2 digits) 400µA 0.1µA ±(1.0% +2 digits) 1µA ±(1.5% digits) 40mA 10µA ±(1.5% +2 digits) 400mA 10µA ±(3.0% +2 digits) 10mA Overload protection: F400mA/250V fuse; F10A/250V fuse. AC Voltage Range Resolution Degree accuracy ±(1.2% +10 digits)
  • Page 9: How To Use

    3. How to Use 3.1 Precautions for operation: 1. Power on and check whether the battery ìs under voltage or not. lf the symbol is displayed, the battery needs to be replaced; otherwise, please follow the following steps. 2. The warning symbol next test...
  • Page 10: Ac Voltage Measurement

    3.3 AC voltage measurement insert the red probe into jack and the black probe into jack"COM" 2. Set function range switch the range and connect the test pen power supply or load to be measured. The measured value will be displayed on the screen.
  • Page 11: Diode Measurement

    Attention 1. lt shows an overrange state when the measured resistance exceeds the maximum value in the selected range. In this case, a higher range OL should be selected. The readings may keep stable in a few seconds when measuring resistance above 1M. lt's normal for high resistance measurements.
  • Page 12: Maintenance

    1. Check and confirm that the test pen has kept off the circuit under test, in order to avoid electric shock. 2. Check and confirm that the rear cover is tightly fixed before use. 4. Maintenance Keep the test pen away from circuit under test before opening...
  • Page 13: General Specification

    1. Measurement range: 80V-600V AC, S0Hz or 60Hz. Voltage may exist in use even when there is no sound or light alarm. The instrument may fail to sense the electric field due to other factors such as shielded wire and cable, thickness insulating layer,...
  • Page 14: List Of Accessories

    7. List of Accessories • Manual instructions X1 • Test probe X 2 • 1.5V AAA battery X2 • 8. WARRANTY CONDITIONS This instrument is warranted against defects in materials and workmanship, in accordance with the general terms and conditions. During the warranty period, defective parts can be replaced, but the manufacturer reserves the right to repair or replace the product.
  • Page 15: Assistance

    9. ASSISTANCE If the instrument does not operate properly, before contacting the Customer Service, check the status of the battery and wear of the cables and replace them if necessary. If the instrument continues to manifest malfunctions check if the procedure of use of the same is in accordance with what is indicated in this manual.
  • Page 16 Uniks Srl https://www.uniks.it info@uniks.it Via Vittori 57 48018 Faenza (RA), Italy 0546.623002 0546.623691...
