Introduction

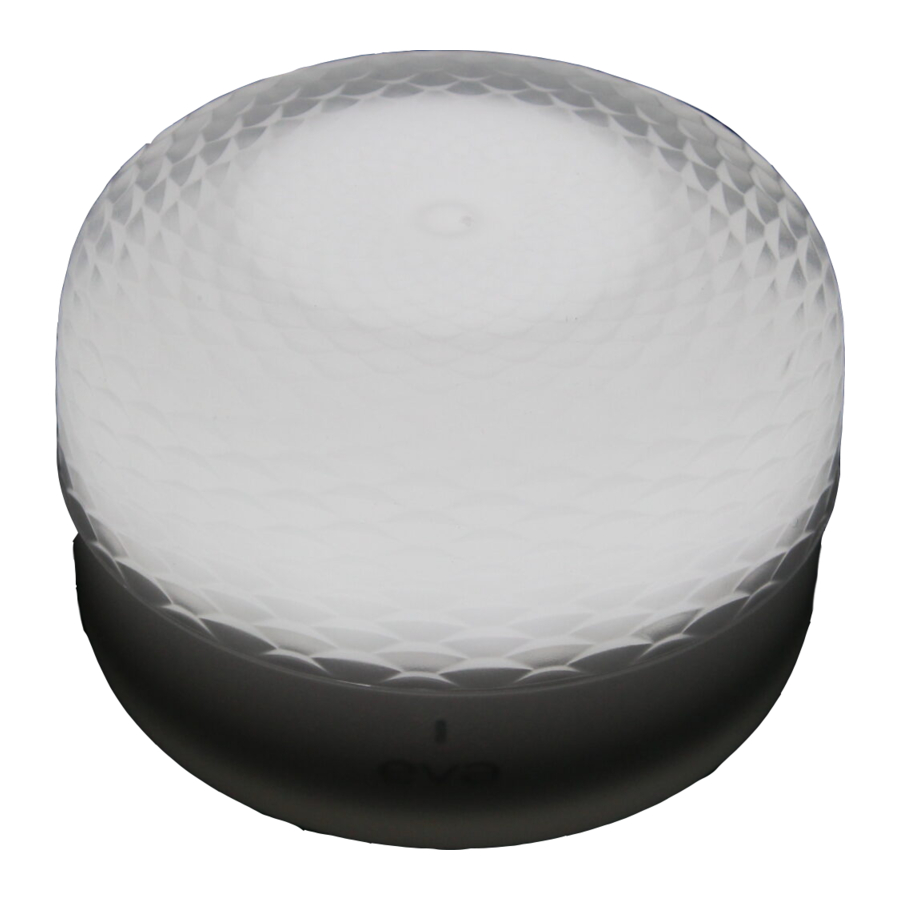

Rechargeable direct light lamp. Several operating modes: dimmable warm white light (2700K), cold white light (6500K) and selectable or constantly changing coloured light. ABS lighting fixture, polyurethane gel top cover and magnetic base. LED light source. Micro-USB port charger.

Touch point on the top cover with On/ Off functions and constant dimming or colour selection. Multi-function button at the base for selecting the light mode or alternative On/Off function.

Technical diagram

Breathing light

Battery indicator and recharging indicator. This indicator light is visible only if the Eva lamp does not have a base.

Technical Specifications

Luminous flux	180 lumen (max.)
Colour temperature	2700K warm white light, 6500K cold white light
Colour rendering index	80
Coloured light	256 colours
Number of LEDs	29
LED type	26 pcs SMD2538, 3 pcs SMD 5050 RGB
Supply voltage	5V DC (1A)
Power	2W
Recharging time	5 hours
Continuous use time	5 hours at maximum brightness, 80 hours at minimum brightness
Battery capacity	2200mAh Li-ion
Degree of protection	IP65 (rainproof)
Materials	ABS, polyurethane gel, rubber, steel
Dimensions	Ф10.5 x 7.6 cm
Weight	375 g

Package Content

Eva lamp
USB-C 60 cm charging cable
Steel plate for attaching to general surfaces

On/Off Functions

Double tap the touch point on the top cover in quick succession to switch the lamp on or off. Alternatively, press the multi-function button at the base of the lamp for 2 seconds.

Operating Modes

Four operating modes are available – cold white light, warm white light, coloured light with manual colour selection or automatic colour change.
To select the mode required, simply press the multifunction button while the lamp is on to obtain the type of light desired.

Adjusting Brightness

In cold white light or warm white light mode, press and hold the touch point on the top cover until the required brightness is obtained. When the maximum or minimum brightness is obtained, the indicator light gives a short green flash.

Colour Selection

In the coloured light mode, the colour can be manually selected by holding down the touch point on the top cover until the required colour is obtained. In the automatic colour change mode, the colour transition is continuous.

Memory Function

The lamp memorises the brightness and colour that were set when previously used, therefore there is no need to re-adjust the brightness or select the colour.

Magnetic Coupling

The lamp can be attached to any steel surface (not stainless).

Battery Recharging

Below 20% of the charge, the indicator light goes on and remains red. To proceed with recharging, you need to insert the USB connector of the cable supplied into the specific slot of the power adapter and then insert the micro-USB connector into the socket at the base of the lamp. When recharging, the indicator light turns red and flashes.

When fully recharged, it turns permanently blue. It takes 5 hours to fully recharge. The lamp is equipped with a self-protection system: if it should remain connected to the power adapter for longer than the specified recharging time, this will not affect the life of the battery. These icons are only visible if the Eva lamp does not have a base.

Use only a 5V DC (1A) power adapter

Do not repair, dismantle or make any changes to the lamp.

For indoor use only. Avoid prolonged exposure to UV rays.

It is not a toy. Be cautious because small parts can be detached and swallowed.

Do not charge the lamp with a damaged USB cable or power adapter.

burn hazard Do not expose the product to flames or sources of heat over 70°C.

Do not allow the product to come into contact with algae-based or herbal-based products.

Use only water and a mild soap to clean products. Using detergents containing alcohol, bleach and acids may damage the material.

Any air bubbles and small imperfections are not to be considered defects but are proof of the uniqueness of the product and the process. Geelli and Ailis deny any liability for improper use of the product, for damage to people or things due to improper application of the product or to accidental or unintentional breakage.
