Summary of Contents for Invixium VERTU

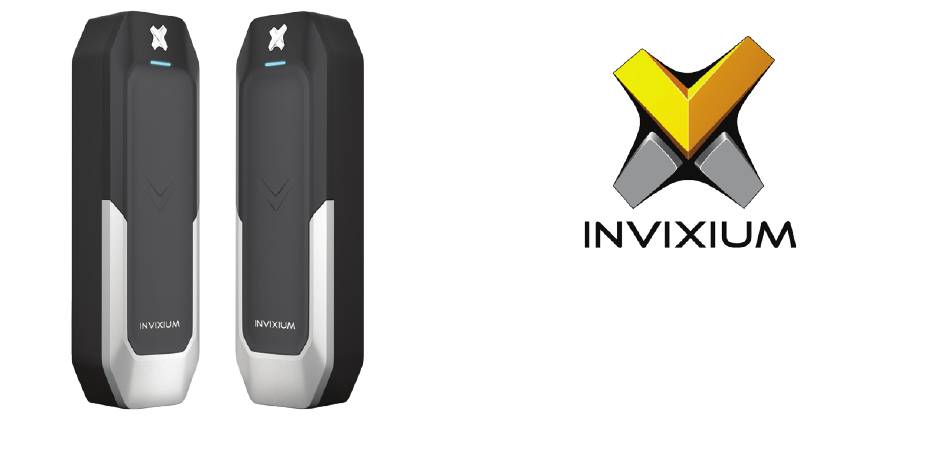

- Page 1 INGUIDE Quick Start Guide VERTU...
- Page 2 Invixium Customer Portal Stay up to date with: ▪ Latest Updates ▪ Best Practices ▪ Datasheets ▪ Installation Guides ▪ Feature Description Documents ▪ Videos ▪ FAQs ▪ Tutorials ▪ And more... Visit https://www.invixium.com/support/...
- Page 3 In the Box Wall Mounting Screws Security Screws 120 Ohm Resistor (qty 2) (qty 1) (qty 2) Hex Key Dolphin Crimps (qty 10) Metal Mounting Plate...
-
Page 4: Installation Best Practices
Keep 30 cms distance between devices to avoid RF interference. When using Invixium's digital card, keep 1 meter distance between devices to avoid BLE interference. Even though the product is IP67 rated, it is recommended to use an... - Page 5 Reset and Tamper The device can be reset to factory default settings via the VERTU configuration app or the reset button at the back of the device. To reset using the physical button, follow the steps below: Power on the Device.
-
Page 6: Getting Started
Getting Started Remove the Mounting Plate, screws and all accessories from the box. Install the Mounting Plate at the desired location using the 2 Wall Mounting screws. Make the necessary connections to the wires on the back of the device (refer Get Wired Page). - Page 7 Get Wired Wire Color Wire Label Pin(s) Wire Color Wire Label Pin(s) Black GROUND Blue RS485 D+ +VDC Blue/Black RS485 D- Orange BUZZER White WIEGAND D1 Brown LED GREEN Green WIEGAND D0 Gray LED BLUE Purple TAMPER OUT Yellow LED RED Green/Yellow EXTERNAL INPUT...
- Page 8 RS-485 Configuration VERTU For RS-485 networks, ensure that devices are wired in a daisy chain configuration using AWG24 twisted pair cable. With a RS-485 daisy chain, connect the termination resistor (120 Ω) to DC Power both ends of the daisy chain connection.
-
Page 9: Wiegand Connections
Wiegand Connections Power Connections VERTU GROUND +VDC Feedback Connections LED GREEN LED RED Wiegand Connections WIEGAND D1 WIEGAND D0 (10) Output Connections DC Power BUZZER TAMPER OUT (11) -
Page 10: Card Placement
Card Placement The location of the card reader on Invixium devices depends on the product model. For VERTU, the card reader is located at the centre of the device, below the LED. VERTU Card Placement... - Page 11 App Installation & Device Configuration IXM VERTU can be configured using a mobile app. To download the app, go to the App store or the Google Play Store and download the IXM VERTU App. Open the app and go to Search devices to configure a device. Create a password when configuring the device for the first time.
- Page 12 INGUIDE For technical or customer support issues, please contact your local seller first. Visit the Customer Portal for more Invixium resources at www.invixium.com/support Enjoy the Experience. Contact Invixium Support at: Copyright © 2022, INVIXIUM. All rights reserved. support@invixium.com invixium.com +1 844 INVIXIUM (468 4948)
