INSTRUCTION MANUAL - Issue 1 - 02/2014
MCT
from Channel Safety Systems
INSTRUCTION MANUAL
t: 0845 884 7000 | w: www.channelsafety.co.uk
t: 0845 884 7000
f: 0845 884 6000
e: sales@channelsafety.co.uk
w: www.channelsafety.co.uk
| 1
Advertisement
Related Manuals for Channel MCT
Summary of Contents for Channel MCT

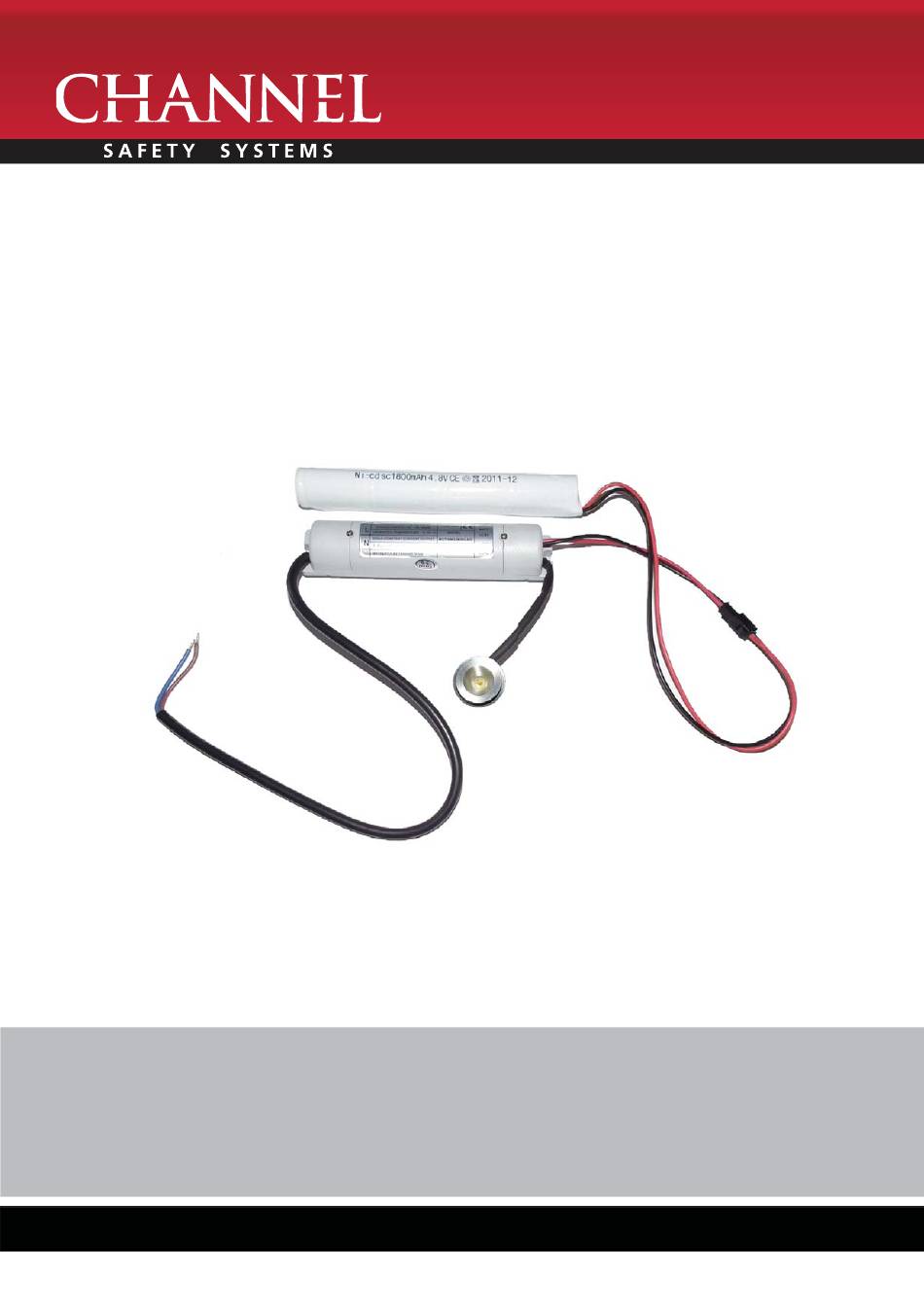

- Page 1 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk Emergency lighting conversion kits Emergency lighting conversion kits from Channel Safety Systems CHANNEL SAFETY SYSTEMS t: 0845 884 7000 Petersfi eld Business Park f: 0845 884 6000 Bedford Road Petersfi eld Hampshire e: sales@channelsafety.co.uk...
- Page 2 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk INTRODUCTION Thank you for choosing this conversion kit, this leafl et will enable you to get the best from it and ensure that installation and operation will be straightforward and reliable. The unit has been designed to provide fl exibility in fi xing and ease of wiring to give trouble free operation DESCRIPTION The conversion kit comprises of a charger/inverter unit and battery pack.
- Page 3 Connect neutral supply to terminal 'N' Connect the Permanent Live to terminal Ph IMPORTANT MCT CASE MUST BE EARTHED. Secure the Flange of the MCT case to Earthed metalwork using the screws and Nuts provided. Lamp Wiring Before Conversion Conversion of Twin Lamp H.F. Ballast...
- Page 4 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk BALLAST LUMEN FACTOR (%) BLF Measurements for MeT Conversion Modules LAMP WATT LAMP TYPE MCT/M3/70 MCT/M3/58 MCT/M3/36 PL-L PL-L CIRC PL-L CIRC PL-D PL-L CIRC PL-D PL-L PL-D PL-S PL-S...
- Page 5 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk TESTING The luminaire must be checked periodically for correct operation, and to evaluate the remaining capacity in the battery at regular intervals during its life. The unswitched supply should be failed which will cause the luminaire to operate in the emergency mode.
- Page 6 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 Petersfi eld Business Park f: 0845 884 6000 Bedford Road Petersfi eld Hampshire e: sales@channelsafety.co.uk GU32 3QA w: www.channelsafety.co.uk INSTRUCTION MANUAL...
