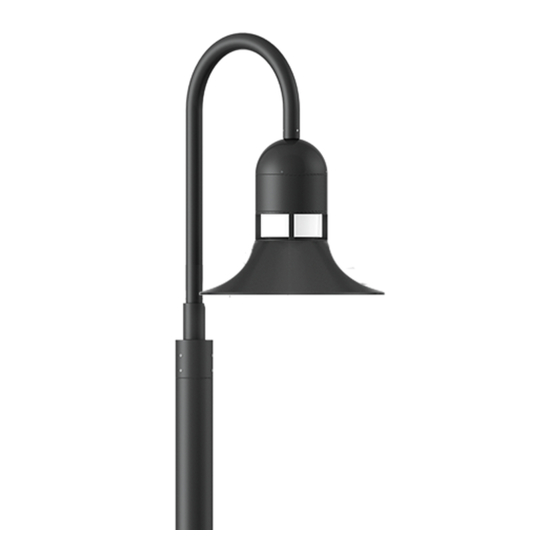

Medium shade post top led

Advertisement

Quick Links

INSTALLATION AND SERVICE MANUAL
For Installation of Columbus sheppards crook medium shade post top LED.
Model. CO-20196

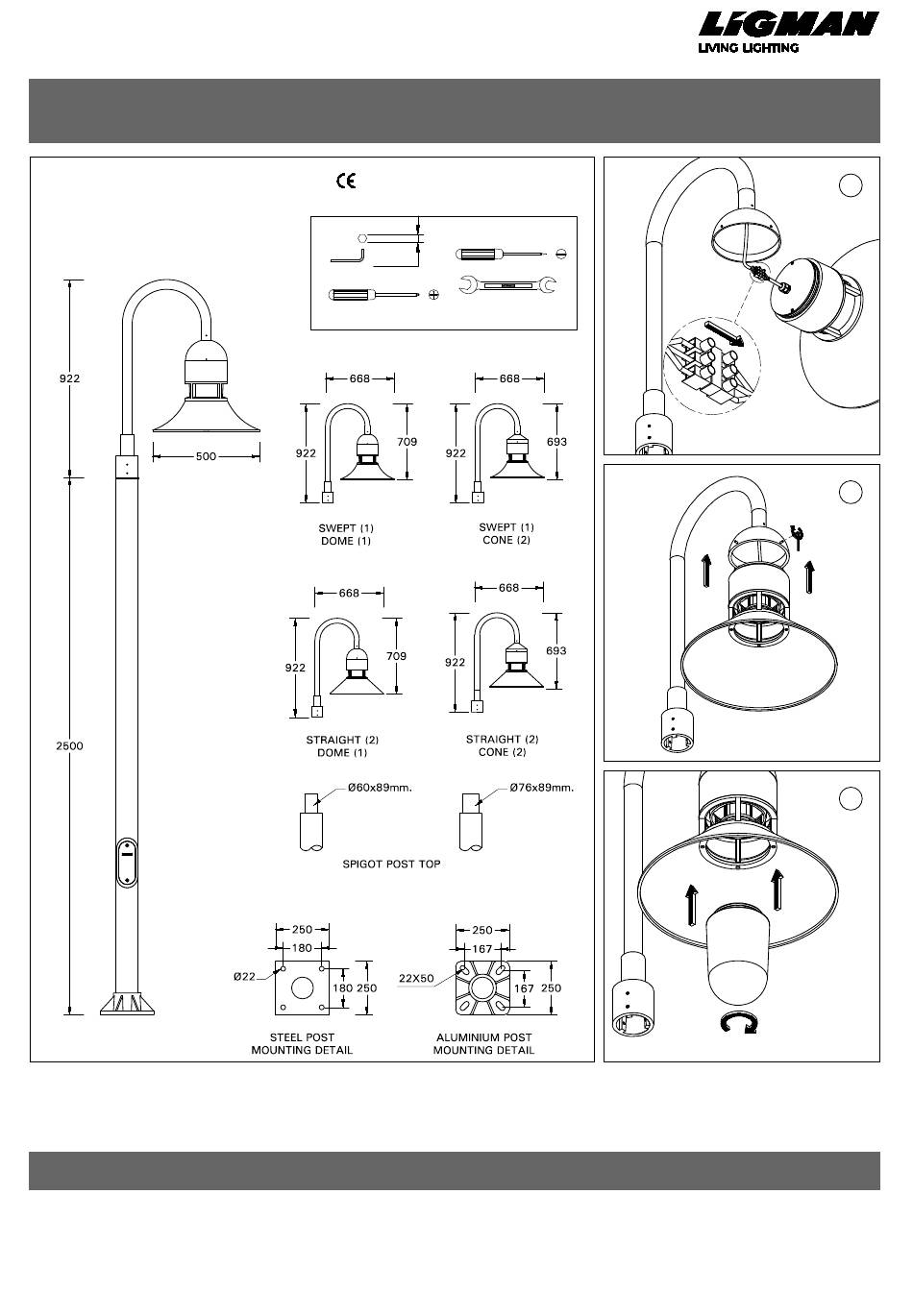

Product drawing (dimensions)
■ LIGMAN standard products are supplied with the control gear 220-240V 50/60Hz.
The control gear for other voltages and frequencies is available upon request, please consult us for more details.
■ LIGMAN luminaires are designed to conform IEC 60598 2-1 standard.
Technical amendments and modifications techniques reserved.
L i g m a n L i g h t i n g
Europe Headquarters
Ligman Europe s.r.o.
VGP Park Usti nad Labem, P 2
Prestanov 113
403 17 Prestanov
Czech Republic
Tel. +420 608 740 504
sales.cz@ligman.com
|
www.ligman.com
IP55 IK04 CLASS I
2.5,4,5
TOOL
Thailand Headquarters
Ligman Lighting Co., Ltd.
17/2 Moo 4, Monthong, Bangnampreaw
Chachoengsao 24150 Thailand
Tel : +66 (2) 7339140
info@ligman.com
M CO-20196/18/08/17/REV.2
1/2
1
2
Torque:3.0Nm.
3
Torque:2.0Nm.
Ligman Ltd
Regus House, Victory Way
Crossways Business Park
Dartford DA2 6QD
Tel. 0800 975 0622
sales.uk@ligman.com
FM-TS-13-1/13-03-2561/REV.4
