Model:
MPPT12-1
Page 1 of 4
This revolutionary maximum power point tracker solar charger was
designed using the technology that won GSL Electronics the prestigious
"2008 EDN Innovation award". A simple, compact and low cost
alternative. Ideal for charging batteries with the new low cost and high
Important:
Use only PV Systems with open circuit voltage below 55V and a V
and 34V for 24V Charging.
Use wires suitable for at least 15a, but if wire runs are over 3m then larger wires are recommended to
limit voltage drop and losses.
with high power panels.
If used, this fuse is optional, locate the output fuse (of) as close to the MPPT as possible
Before connecting battery always check battery and PV panel polarity.
Maximum Power Point Tracker
Please read these instructions before use
Unit 2, 110 Station Road, Seven Hills ,NSW, 2147, Australia

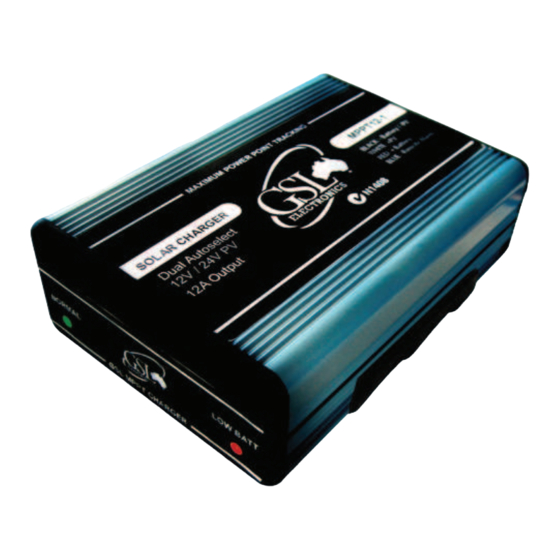

200W Solar Charger
Operating Instructions
MPPT12-1 Unit
no less than 17V for 12V Charging
MP
MPPT12-1-R5
