CANARY HPA-1 HEADPHONE
AMPLIFIER USER'S MANUAL
V 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mastre CANARY HPA-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for PALAB Mastre CANARY HPA-1

  • Page 1 CANARY HPA-1 HEADPHONE AMPLIFIER USER’S MANUAL V 1.0...

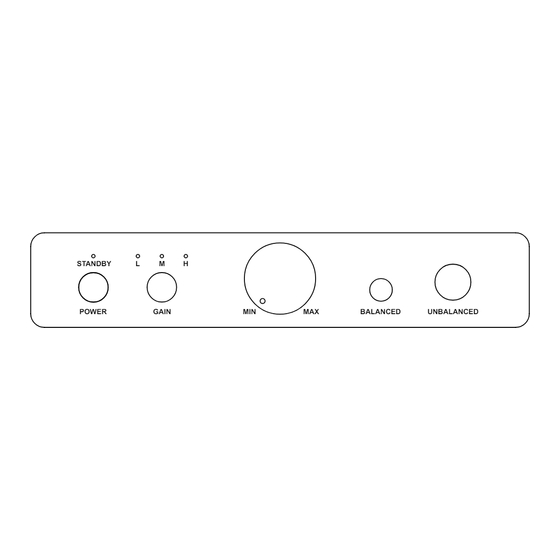

  • Page 2 Quick Start Guide Front Panel View STANDBY POWER GAIN BALANCED UNBALANCED 1. POWER BUTTON 2. GAIN SWITCHING 3. VOLUME CONTROL 4. TRRS 4.4mm BALANCED PHONE JACK 5. TRS 6.3mm UNBALANCED PHONE JACK 6. STANDBY LED ( Lights up red to indicate standby mode ) 7.
  • Page 3 Headphone plug type Standard 6.3mm stereo plug TRRS 4.4 mm balanced plug LEFT RIGHT GND L+ L- R+ R- GND Technical Speci cations TRS 6.3 mm output power : 1.7W, 30 ohms, <0.0006% THD ( High gain mode). 150 mW, 300 ohms, <0.0007% THD ( High gain mode). TRRS 4.4 mm output power : 1.7W, 30 ohms, <0.0006% THD ( High gain mode).
  • Page 4 Package content The HPA-1 ( Black ) DC 15V / 3A Adapter Power cord RCA cable Note : Design and speci cations are subject to change without notice. Illustrations in this manual might di er slightly from production models.
  • Page 5 Dealer’s Name : Serial Number : Important! Please store this card in a secured location for future reference. PALAB reserves the right to request this document before accepting repair requests. This does not a ect or limit your mandatory statutory rights.
  • Page 6 https://www.palabaudio.com...
