WOWMAKER Suspension with Eye Bolts
General

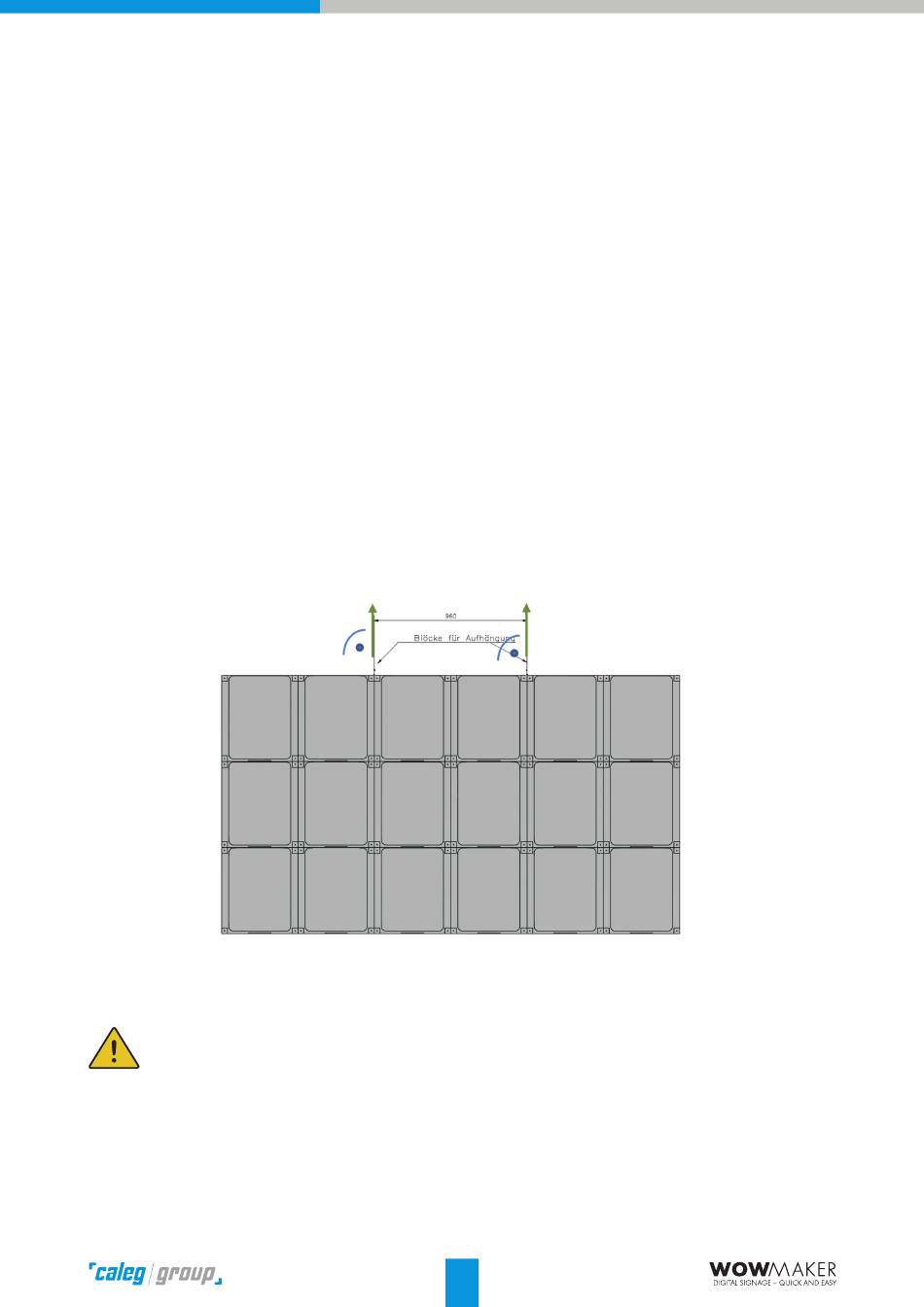

According to static calculations the WOWMAKER may only be suspended using the
Information
following eye bolts
Item number:
9003305
Supplier:
caleg Schrank und Gehäusebau GmbH, Zum Gerlen 1, D-66131 Saarbrücken,
Phone +49 6893 89200, Fax +49 6893 89262, Mail vt-sb@caleg-group.de
The static analysis is limited to the load distribution in the supporting structure. The load may only be applied
vertically - oblique tensile forces are not permitted (if necessary, a cross beam must be used).
Dead load:
The dead load of the frame is 210 kg (2.1 kN) – without the Studiolifter.
Screw
connection:
With a hex key. The eye bolt remains rotatable after fastening.
Use:
Inside buildings only.
Wind load:
None.
ATTENTION: The hoist must be designed so that the increase in load caused by lifting does not
exceed the factor fdyn 0 3.
ATTENTION: The bolt screws must be screwed at least 10 mm into the suspension blocks. (flat on
the frame).
Advertisement
Table of Contents
Summary of Contents for Caleg WOWMAKER 9003305
- Page 1 9003305 Supplier: caleg Schrank und Gehäusebau GmbH, Zum Gerlen 1, D-66131 Saarbrücken, Phone +49 6893 89200, Fax +49 6893 89262, Mail vt-sb@caleg-group.de The static analysis is limited to the load distribution in the supporting structure. The load may only be applied vertically - oblique tensile forces are not permitted (if necessary, a cross beam must be used).
- Page 2 WOWMAKER – Attaching the eye bolts and lifting it out of the Studiolift. STEP 1: Turn the WOWMAKER off and disconnect all cables connected to the Studioframe (as delivered: 2x Neutrik plugs and 1x connection to S-Box). STEP 2: Screw the eye bolts flat on the frame into the block using a hex key. STEP 3: Connect the bolts to a crane or other hoist device so that the Studioframe is secure even without the Lifter.
