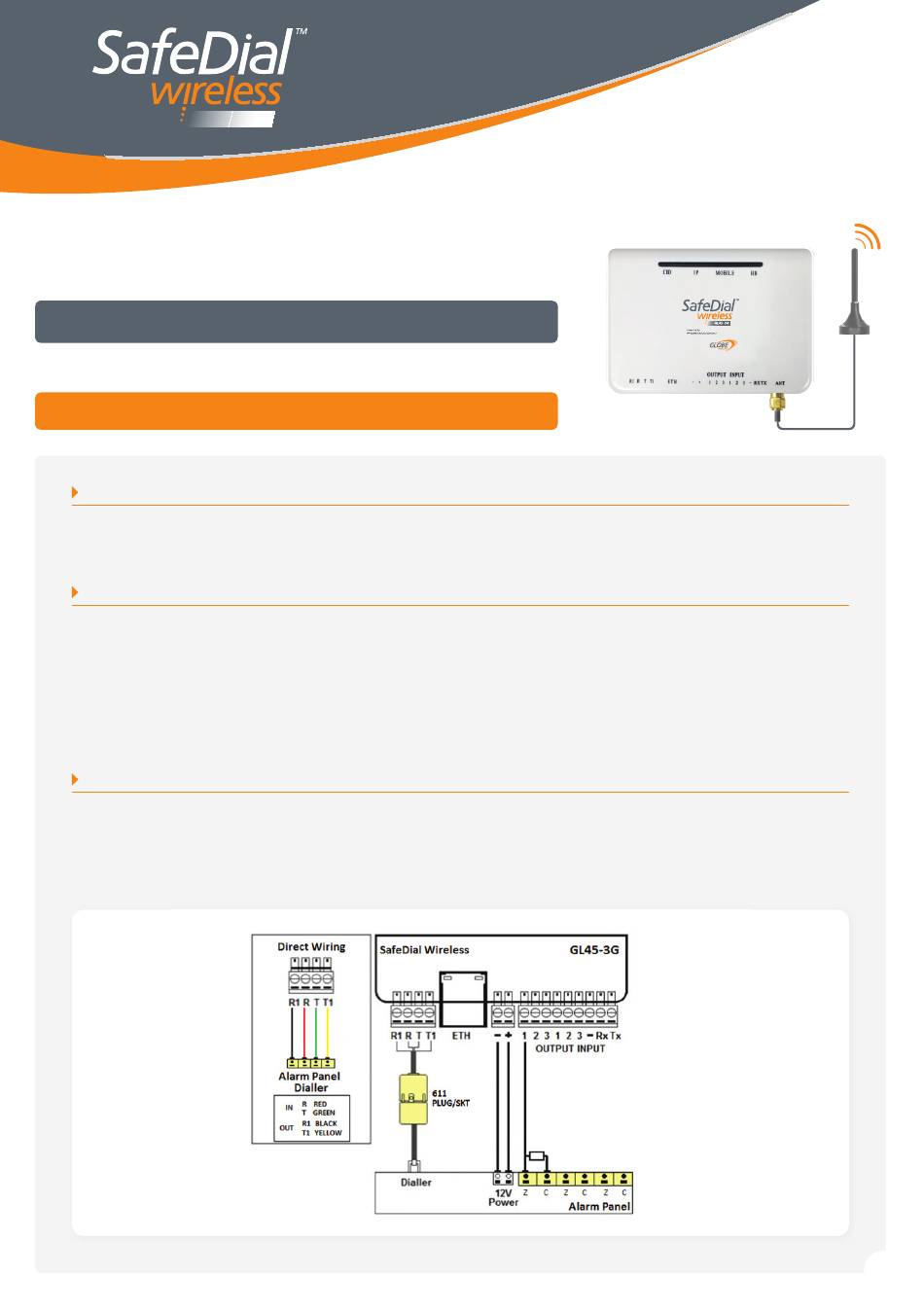

This guide provides step-by-step instructions, with
simple explanations to get you up-and-running.
For further information, please refer to the SafeDial Wireless GL45-3G User Manual.
Installation and Connection Details
STEP 1 — ACTIVATING THE GL45-3G
Before applying power, the GL45-3G must be activated using SafeDial Toolbox.
Refer to page 3 of this guide for SafeDial Toolbox instructions.
STEP 2 — MOUNTING & ANTENNA PLACEMENT
Find a location within the Alarm Panel enclosure to mount the main unit.
Route the antenna cable outside of the Alarm Panel & place the antenna on top of the Alarm Panel enclosure.
Alternatively, if the enclosure is plastic, mount the antenna onto the ground plate provided.
If the signal strength is low you need to make use of a high gain antenna. Once repositioned, the GL45-3G needs
to be power cycled to refresh the signal strength indicators. Signal strength must be better than –88dBm for
reliable communications.
STEP 3 — PHONE INTERFACE CONNECTIONS
A four wire connection is required between the Alarm Panel dialler and the GL45-3G.
Input Lines: 'Ring' (R) (Red Wire) & 'Tip' (T) (Green Wire)
Output – Return Lines: 'R1' (Black Wire) & 'T1' (Yellow Wire)
If the interface lead is removed, a "Dialler Lead Interface Fail" event will be sent to the Control Room.
Make sure you have a common
ground between the GL45-3G
GL45-3G
and the Alarm Panel.
QUICK START GUIDE
Typical Keyswitch wiring for
use with Pocket Secure.
1
