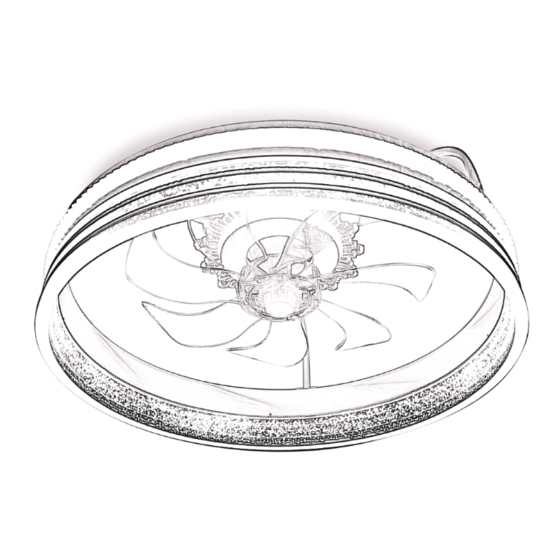

CELLING FAN SF004
User Manual
Model: SF004
Size: 19.7"
Weight: 9.6lbs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF004 and is the answer not in the manual?

Questions and answers

Summary of Contents for Scolii SF004

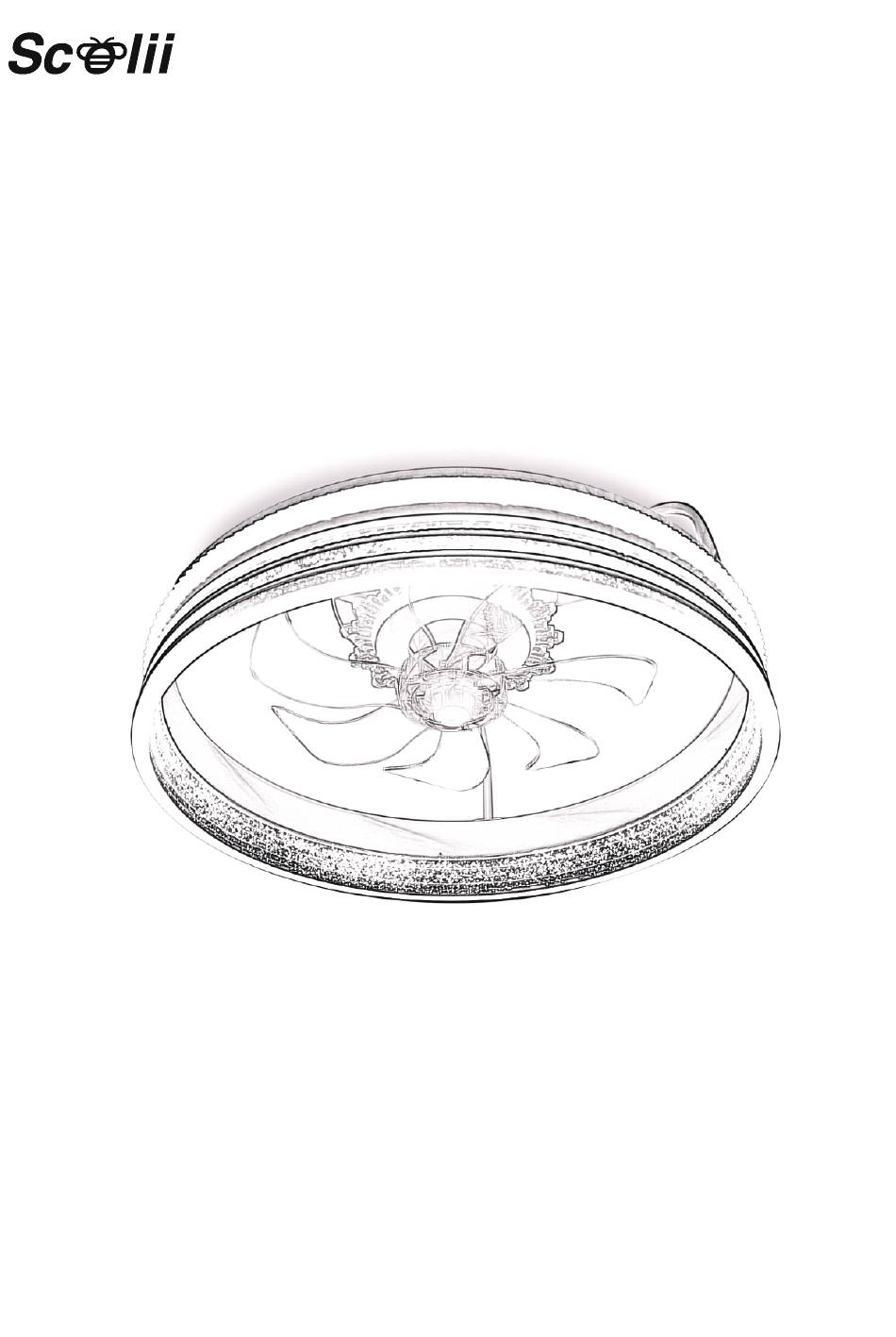

  • Page 1 CELLING FAN SF004 User Manual Model: SF004 Size: 19.7” Weight: 9.6lbs...
  • Page 2 IMPORTANT Always shut off power to the circuit before starting installation work. In some countries electrical installation work may only be carried out by a authorised electrical contractor. Contact your local electricity authority for advice. Safty rules 1. Before you begin installing the fan, shut power off the circuit breaker for the fuse box.
  • Page 3 Tool kit Spare tool Expansion screw Gasket Safety gloves Extension line Connection terminal...
  • Page 4 Installation steps 1. Open the hanging plate of the lamp first, and use the hole position of the hanging plate to measure and locate the position of the installation hanging plate hole on the ceiling. 2. Drill holes at the positioning mark points according to the size of the expan- sion screw, and then use a hammer to punch the expansion screw into the hole and leave one centimeter outside, and unscrew the nut counterclockwise to lock the board.
  • Page 5 3. Padded washers with nuts to lock the hanging plate on the ceiling. Make sure that the hanging plate and the ceiling are connected and fixed firmly, and make sure that the hanging plate and the expansion screw are connected enough for the weight of the lamp body.
  • Page 6 5. The hole of the lamp body corresponds to the ceiling screw. Check whether the lamp chassis is completely sucked to the ceiling, and then tighten the self-tapping screw. Make sure that the lamp body is connected to the ceiling firmly.
  • Page 7 1. Download APP “ApplianceSmart” ApplianceSmart 2. Open “ApplianceSmart” to allow APP to connect to Bluetooth, click "+" below, click fan lamp.
  • Page 8 3. Name your lamp, get the console, click on the console, follow the picture to pair and remotely control your lamp. For Any Problems Contact Customer Service: service@scolii-sct.com...
